Hioki IM3570 - Low Z High Accuracy Mode

4.2 Setting Basic Settings of Measurement Conditions
53
4
Chapter 4 LCR Function
This mode balances the L
POT
terminal at 0 V to reduce the influence of contact resistance during low imped-
ance measurement. Furthermore, since the output resistance becomes 10  and sufficient current can flow to
the test sample to be measured, this mode enables highly accurate measurement.
3
Low Z High Accuracy Mode

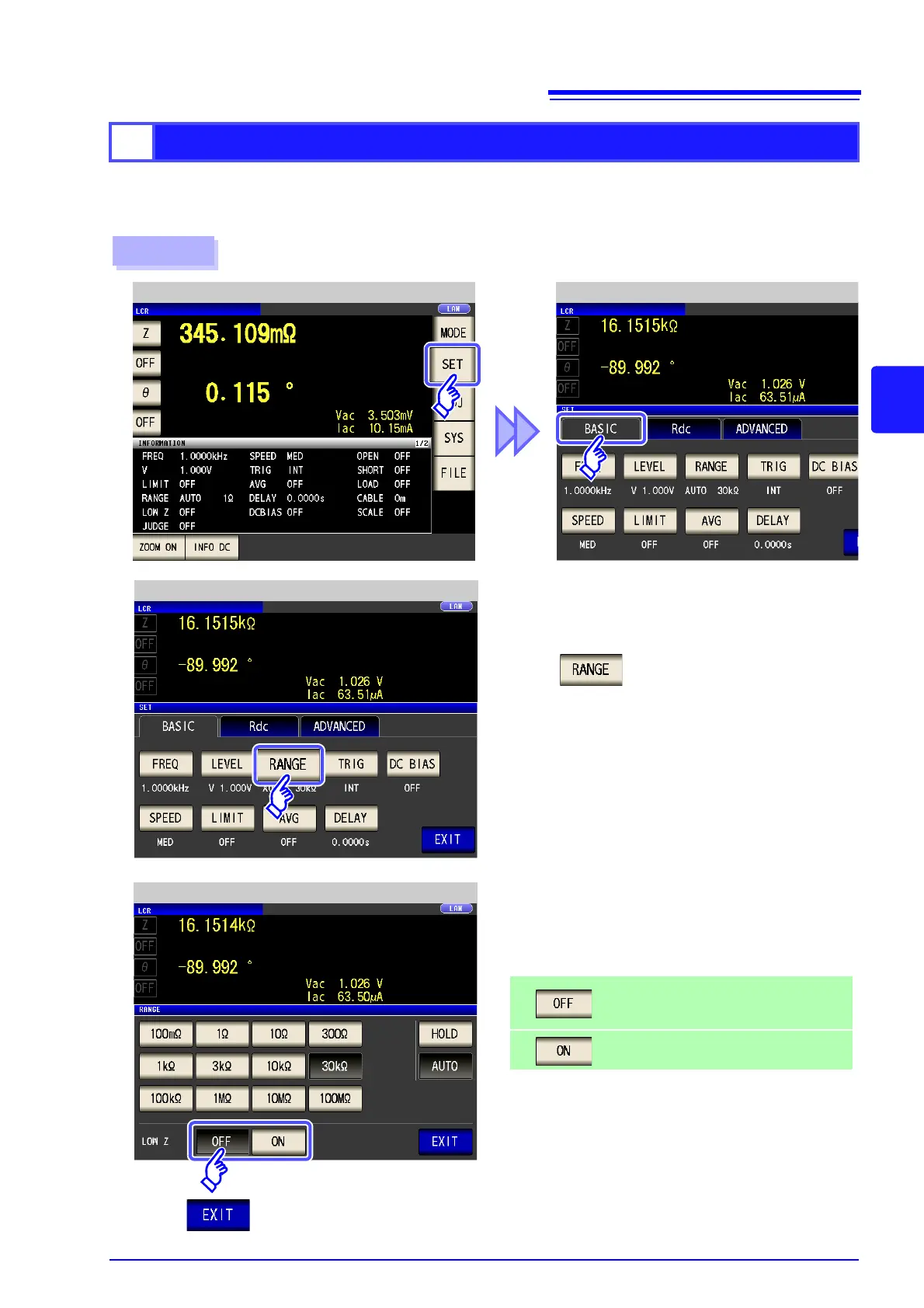

Procedure
2
Press .
LCR Initial Screen LCR Basic Settings
LCR Basic Settings
1
3
Range Setting
Select ON/ OFF for the low Z high accuracy
mode.
Sets the low Z high accuracy mode to
OFF.
Sets the low Z high accuracy mode to ON.
4
Press to close the setting screen.
