Hioki IM3570 - Judging with Upper and Lower Limit Values(Comparator Measurement Mode)

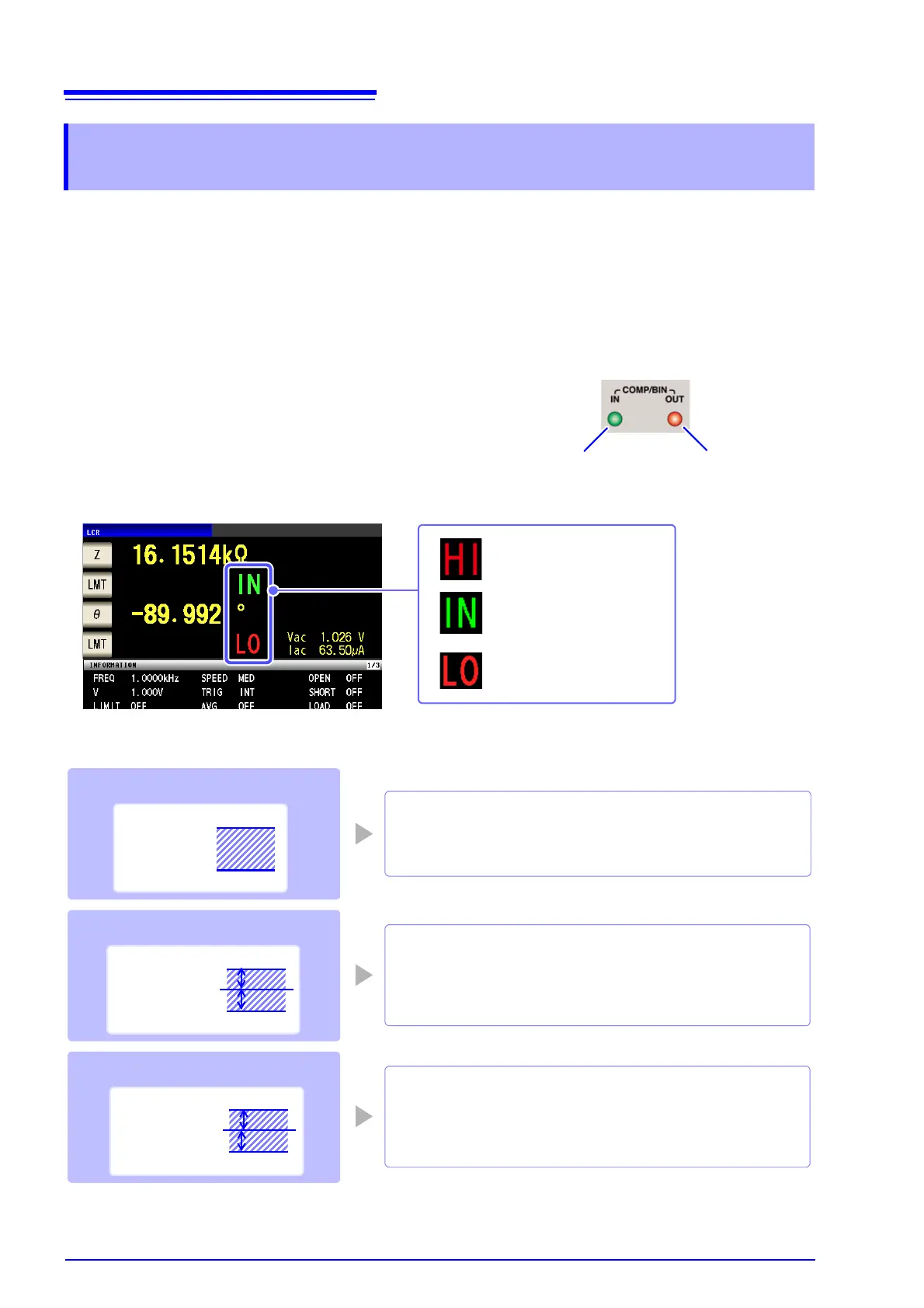

4.4 Judging Measurement Results
86
The comparator measurement allows you to do the following.
The comparator decision mode can be set as one of the following:
4.4.1 Judging with Upper and Lower Limit Values
(Comparator Measurement Mode)
• Preset a reference value and upper and lower limit values as the judgment reference, and display a
judgment result as HI (higher than the upper limit value), IN (within the range set for the upper and
lower limit values), or LO (lower than the lower limit value).
• Output the judgment results to an external device (via the EXT I/O connector).
• Select different settings and perform judgment for up to two parameters.
• Be notified of judgment results by buzzer.
See "4.5.13 Setting Operation Sounds (Beep Sounds)" (p. 128)
• Confirm the judgment result from the judgment result
indication LEDs on the front panel of the instrument.
See "Judgment Result Indication LEDs" (p. 10)
(Front panel LEDs)
Lights green Lights red
(When the compar-
ator measurement
result is HI or LO)
(When the comparator
measurement result is IN)
Measured value is above
upper limit
Pass (meets criteria)
Measured value is below
lower limit
Deviation Percent (%) Setting (p. 91)
HI
IN
IN
LO
upper limit value[%]
reference value[]
lower limit value[
%]
Enter reference values and then set percentages corre-
sponding to the reference values as the upper limit and
lower limit values.
The measurement values are displayed in deviations (%) from the refer-
ence value.
Percent (%) Setting (p. 89)
HI
IN
IN
LO
upper limit value[%]
reference value[]
lower limit value[%]
Enter reference values and then set percentages corre-
sponding to the reference values as the upper limit and
lower limit values.
The measurement values displayed are the same as those of the mea-
surement parameters.
Absolute value (ABS) setting (p. 88)
HI
IN
LO
upper limit value
lower limit value
Set absolute values for the upper limit and lower limit values of
the measurement parameters.
The measurement values displayed are the same as those of the mea-
surement parameters.
