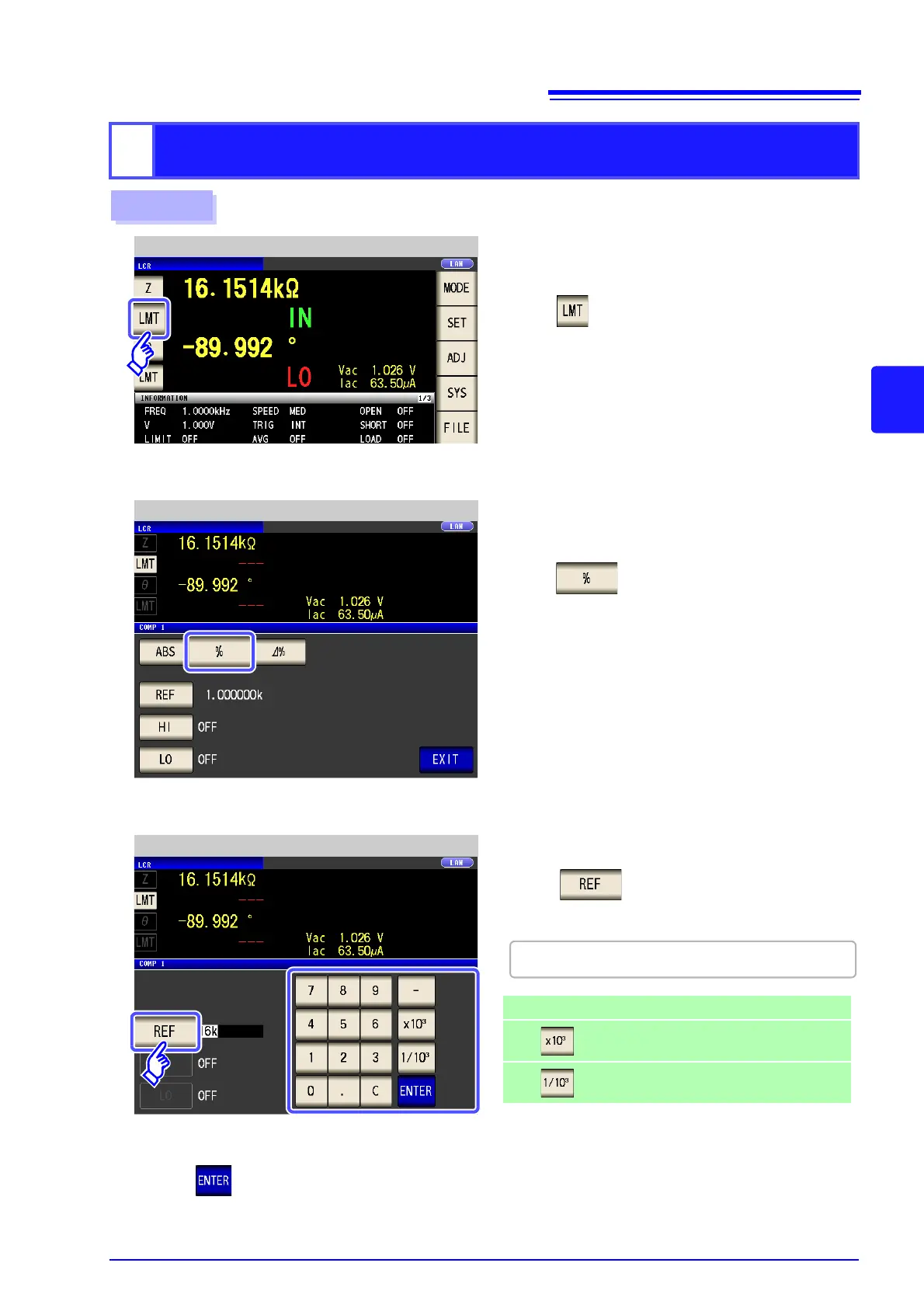

4.4 Judging Measurement Results

Chapter 4 LCR Function

Setting the Upper or Lower Limit Value as a Percentage (%) Relative to a Ref-

erence Value (Percentage mode)

Procedure

Press .

Press and use the numeric keypad to

set the reference value.

Press to confirm the reference value.

Press .

LCR Initial Screen

Comparator Condition Setting

Reference Value Setting

Settable range: -9.999999G to 9.999999G

Changing the unit (a/ f/ p/ n/ / m/ None/ k/ M/ G)

Step the units up.

Step the units down.
