Set the delay time from when a trigger is input until measurement starts.
There are two delay settings: “Trigger Delay” and “Point Delay.”
With this item, only the setting for the trigger delay is configured.
5.2.5 Setting the Trigger Delay

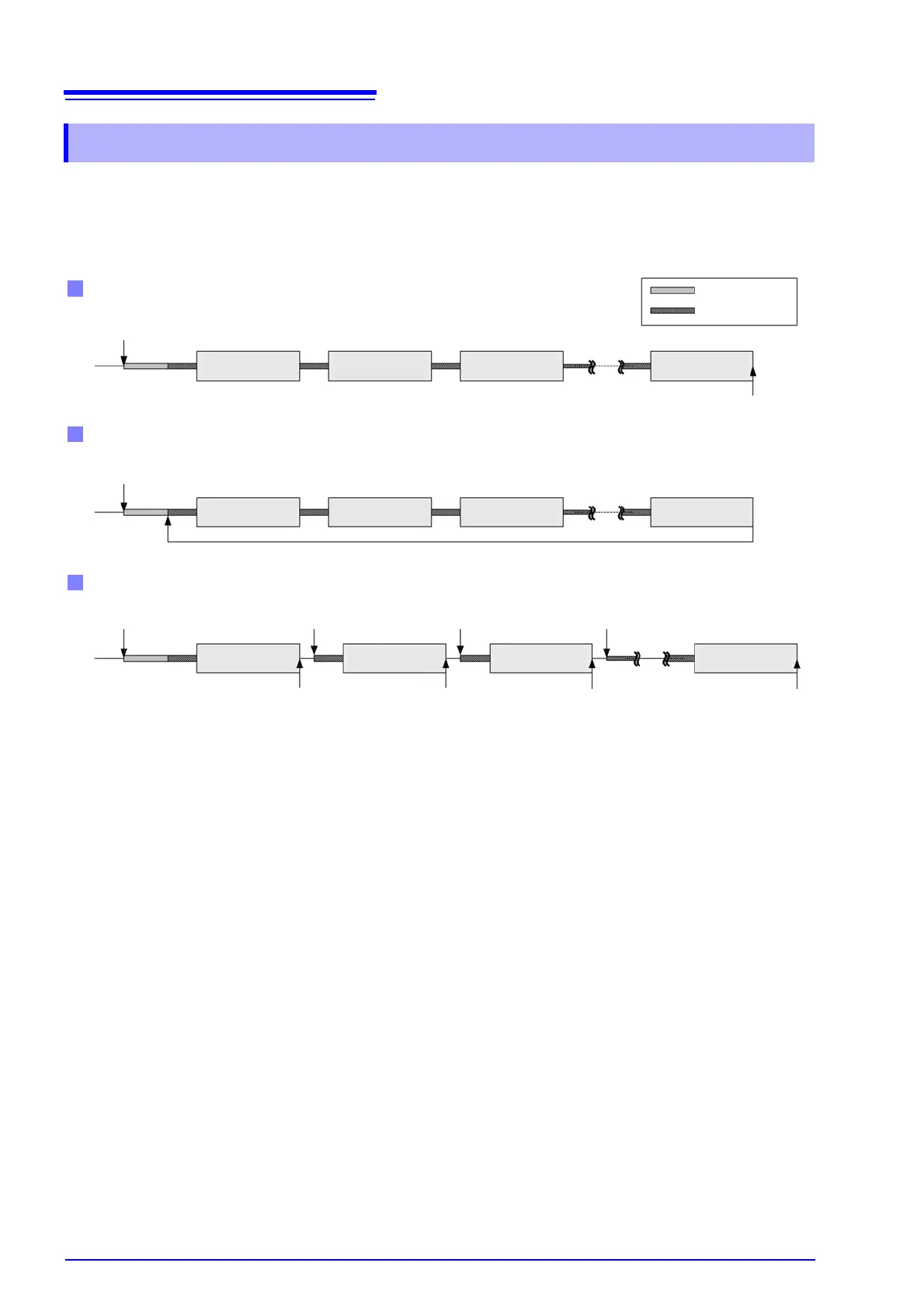

When sequential sweep
When repeat sweep
When step sweep
External trigger
End of measurement
End of measurement End of measurement End of measurement End of measurement
Internal trigger
Return to measurement of sweep point 1
External trigger External trigger External trigger External trigger
Trigger delay
Point delay
Measurement of
sweep point 1
Measurement of
sweep point 2
Measurement of
sweep point 3
Measurement of
last sweep point
Measurement of
sweep point 1
Measurement of
sweep point 2
Measurement of
sweep point 3
Measurement of
last sweep point
Measurement of
sweep point 1
Measurement of
sweep point 2
Measurement of
sweep point 3
Measurement of
last sweep point
