5.2 Setting Basic Settings of Measurement
139
5
Chapter 5 ANALYZER Function
Set the timing for drawing the graph or list.
If the display timing is set to , the time for one sweep becomes long because the screen is updated
every time each sweep point is measured.
If it is set to to give priority to the measurement time, the screen update time becomes short.
5.2.4 Setting the Display Timing
Procedure

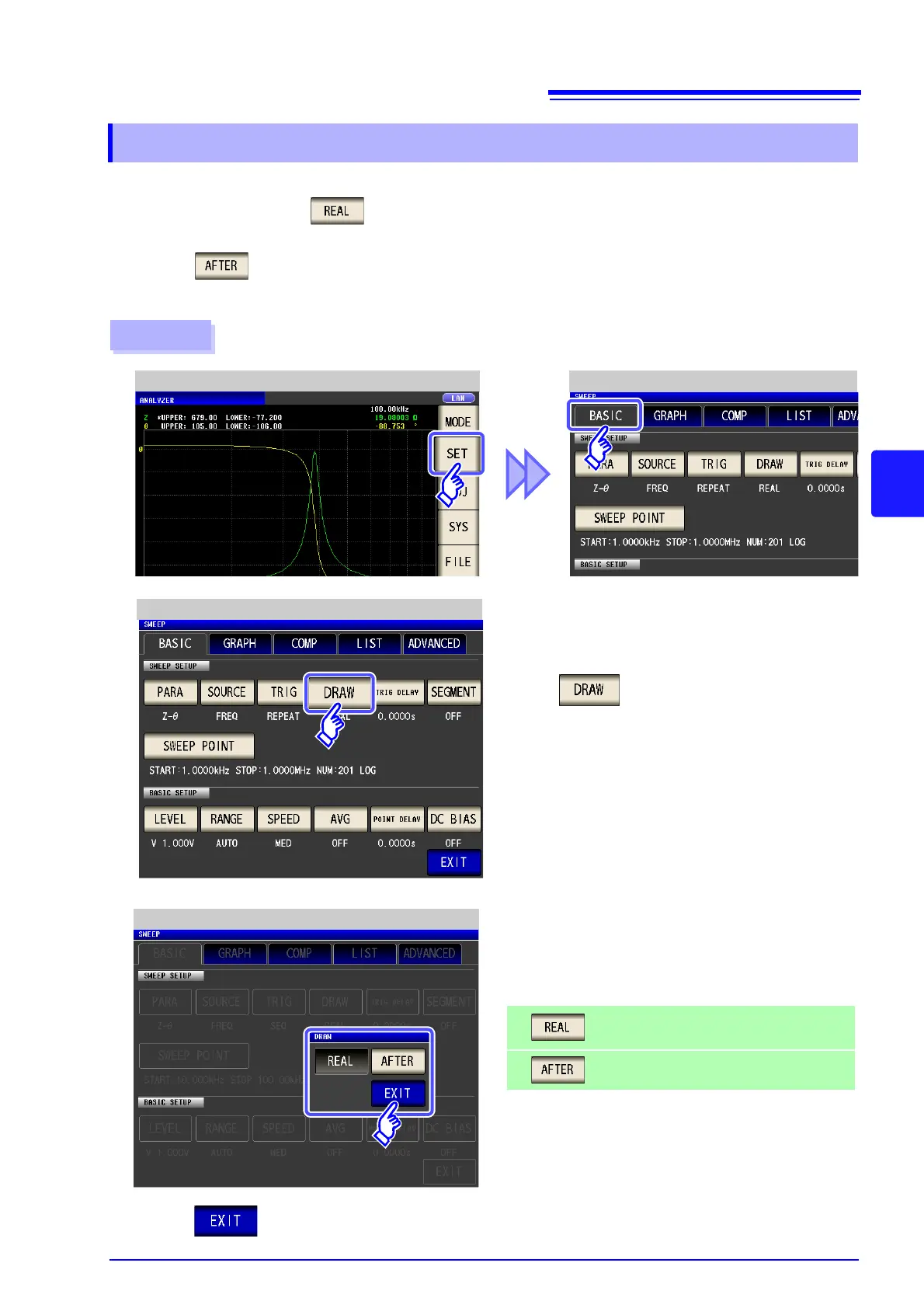

Analyzer Initial Screen Analyzer Basic Settings
1
Press .
2
Analyzer Basic Settings
4
Press to close the setting screen.
3
Draw Timing Setting
Set the timing for display.
Sequentially draws after measurement of
each sweep point.
Draws all after one sweep is finished.
