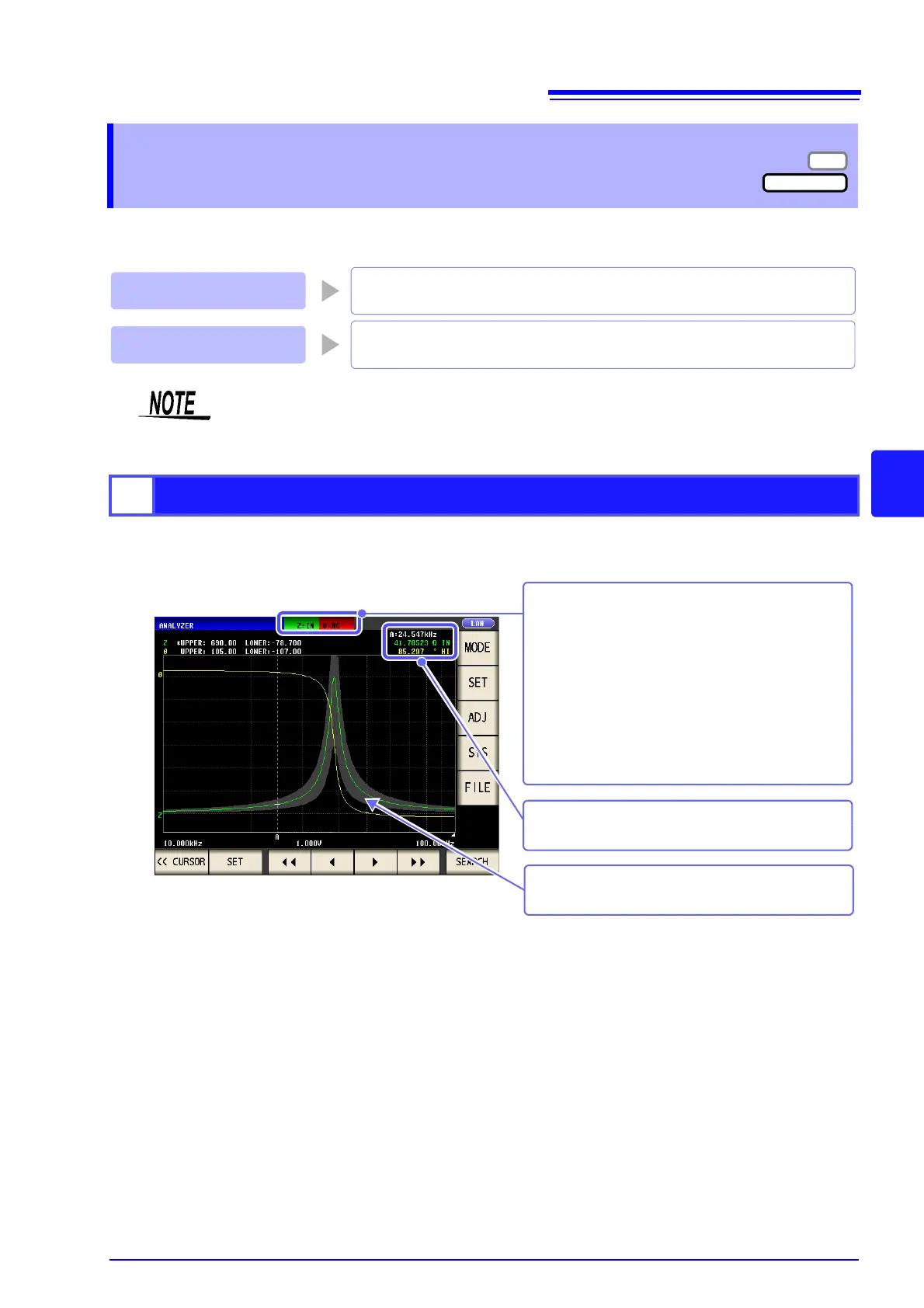

5.7 Judging Measurement Results (Comparator Function)
197
5
Chapter 5 ANALYZER Function
With the comparator function, you can preset a judgment area and judge whether measurement values are
within the judgment area.
With area judgment, you can set the upper and lower limit values of the range to enable IN or NG to be dis-
played as the judgment result.
5.7 Judging Measurement Results
(Comparator Function)
With the comparator function of the analyzer function, whenever possible perform a sweep
once before setting the comparator function because there are items and the like for config-
uring the settings of the judgment area which use the sweep results.
1
Area Judgment
Area Judgment
Judges whether the measurement values of sweep points are within
the judgment area.
Peak Judgment
Judges whether the peak value of one sweep result is within the judg-
ment area. (p. 208)
When any of the measurement values of
the sweep points are not within the range
set with the upper and lower value settings
NG
Indicates the overall judgment result.
When the measurement values of sweep
points are within the range set with the up-
per and lower value settings
IN
You can use the cursor to check the judgment re-
sult of each sweep point.
The comparator range is displayed in gray.
(p. 207)
When judgment is not made
- -
To Next Page
