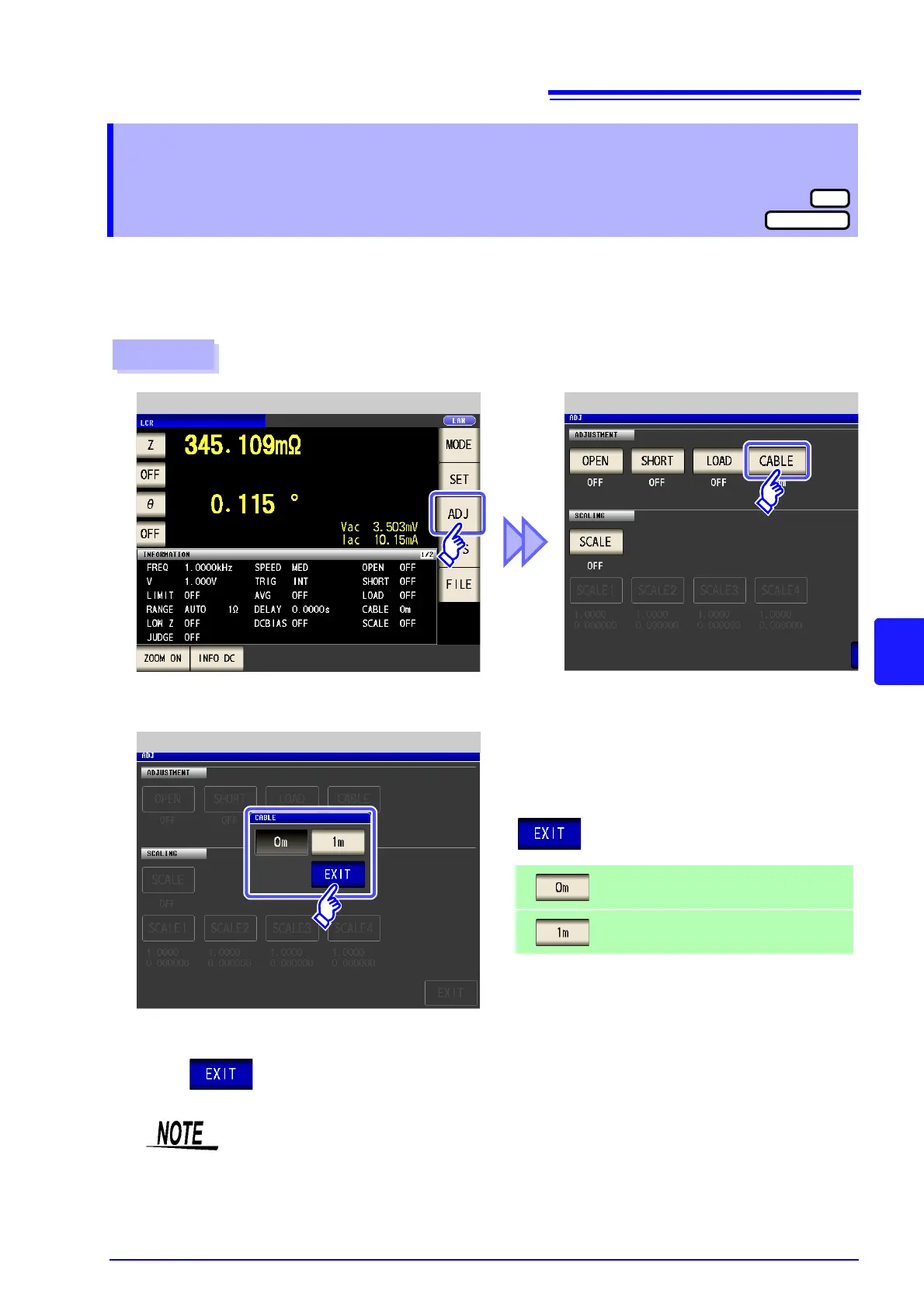

7.4 Compensating Measurement Cable Errors (Cable Length Compensation)
301
7
Chapter 7 Error Compensation
With high frequency measurement, the influence of the cable results in large measurement errors.
Setting the cable length enables you to reduce the measurement errors.
Use a coaxial cable with 50  impedance.
7.4 Compensating Measurement Cable
Errors
(Cable Length Compensation)
• When a 2 m cable is used, the guaranteed accuracy is 1 MHz.
• When a 4 m cable is used, the guaranteed accuracy is up to 100 kHz.
LCR
ANALYZER
Procedure
Compensation Screen
1
2
Select the cable length to be used, and press
to confirm the selection.
3
Press to close the setting screen.
LCR Initial Screen
Cable Length Compensation Setting
Select this when using a direct-coupled fix-
ture or the like.
Select this when the cable length is 1 m, 2m,
or 4 m.
