7.1 Setting Open Circuit Compensation

274

Simultaneously acquire the open compensation values for all measurement frequencies.

7.1.1 All Compensation

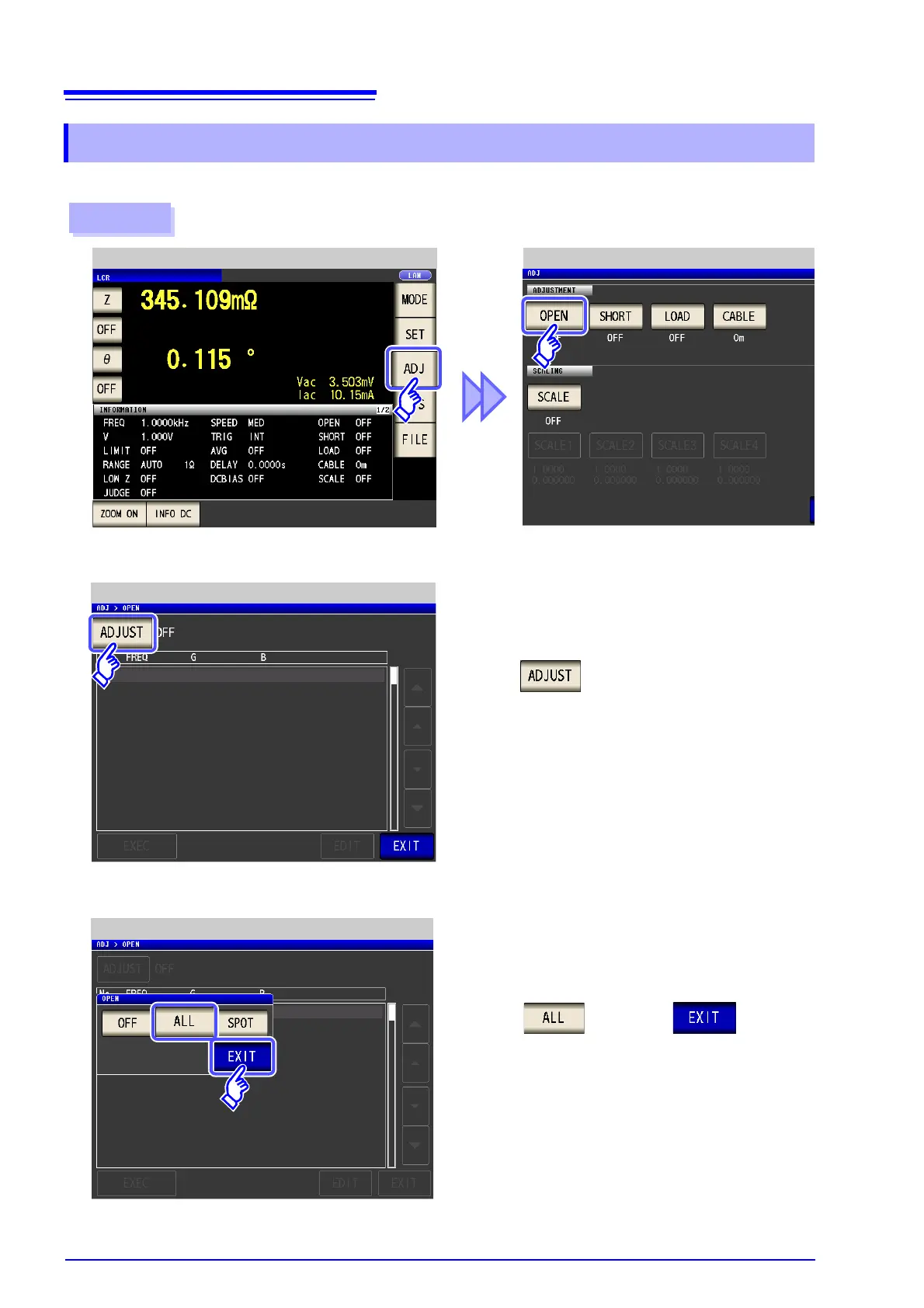

Procedure

Compensation Screen

1

2

Press .

Select and press to close

the setting screen.

3

LCR Initial Screen

Open Compensation

Open Compensation Setting

Table of Contents

Default Chapter3
- Table of Contents3
