Hioki IM3570 - Segment Setting

5.2 Setting Basic Settings of Measurement
142
Set whether to perform a normal sweep or segment sweep.
5.2.6 Segment Setting
Normal Sweep (p. 143)
Set the sweep range and number of sweep points and then perform
measurement.
(For each sweep point, the measurement conditions, except for the sweep parameter,
are the same. It is also possible to fix the sweep parameter and perform interval mea-
surement which measures at a set time interval.)
Segment Sweep (p. 169)
Divide the sweep range into ranges called segments and then perform
sweep measurement.
(The sweep range, sweep points, and measurement conditions can be set for each segment.)

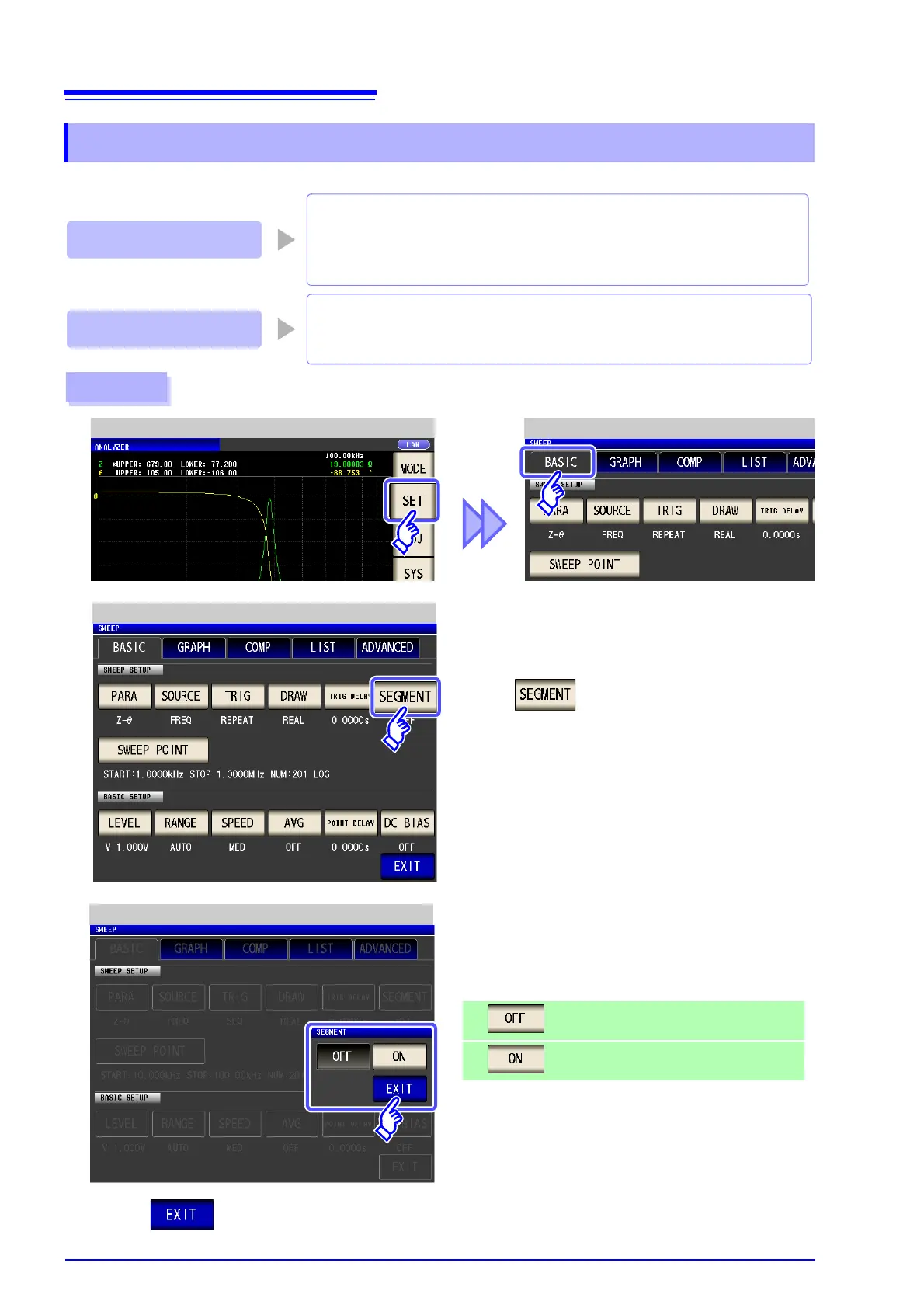

Procedure
Analyzer Initial Screen
4
Press to close the setting screen.
3
Press .
2
Analyzer Basic Settings
Analyzer Basic Settings
Segment Setting
Select the segments.
Normal Sweep (p. 143)
Segment Sweep (p. 169)
1
