5.9 Application Settings

235

Chapter 5 ANALYZER Function

This function enables the measurement signal to be output after measurement is triggered for the initial

sweep point only, ensuring that the signal is applied to the sample during measurement only.

Thus reducing the generation of heat in the sample and decreasing electrode wear.

5.9.10 Applying the Signal to the Sample Only during

Measurement

(Trigger Synchronous Output Function)

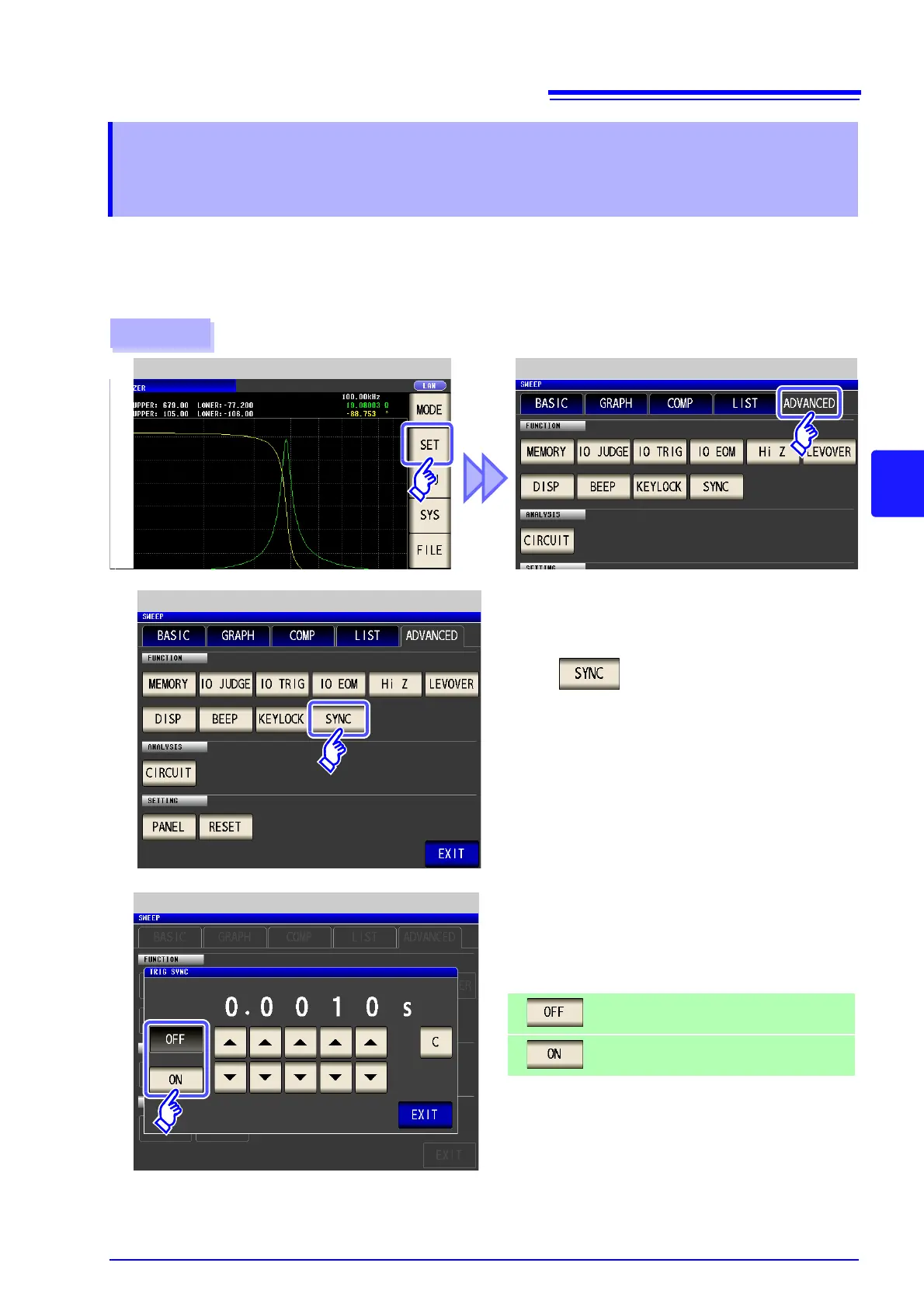

Procedure

ANALYZER Application Settings

ANALYZER Measurement Screen

Press .

ANALYZER Application Settings

Trigger Sync Setting

Select ON/OFF for the trigger synchronous

output function.

Disables the trigger synchronous output func-

tion.

Enables the trigger synchronous output func-

tion.
