4.5 Setting Application Settings
115
4
Chapter 4 LCR Function
You can set the delay time for the period from the output of the comparator and BIN judgment results until the
output of EOM
(LOW) from the EXT I/O.
You can also set whether to reset the comparator and BIN judgment results simultaneously with the measure-
ment start signal.
See "11.2 Timing Chart" (p. 369)
4.5.6 Setting the Delay Time from the Output of Com-
parator and BIN Judgment Results until Output
of EOM
(LOW) and Resetting Judgment Results
Procedure

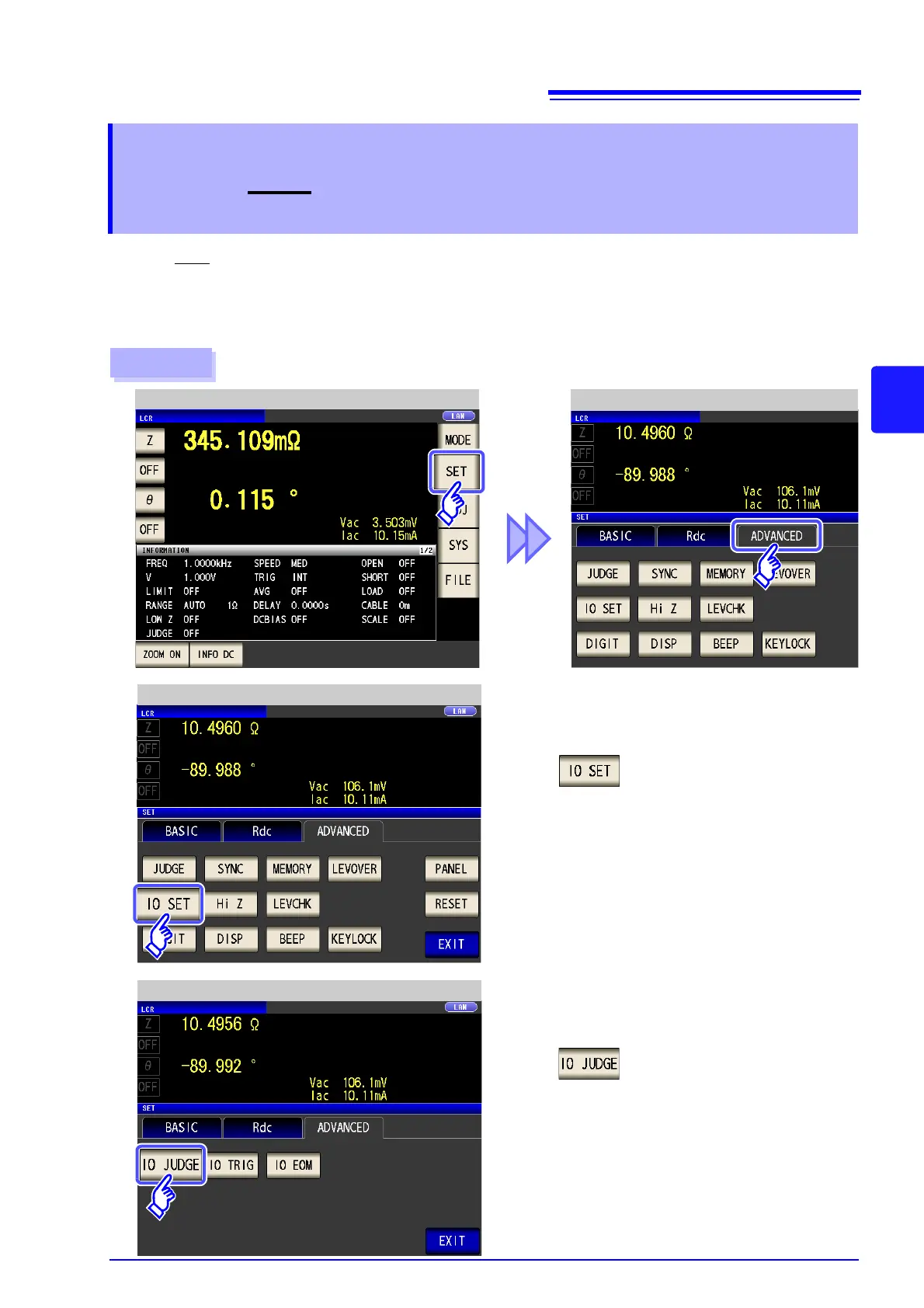

LCR Initial Screen
Press .
2
Application Settings
Application Settings
1
3
I/O Setting
Press .
