5.9 Application Settings
226
You can set the delay time for the period from the output of the comparator and BIN judgment results until the
output of EOM
(LOW) from the EXT I/O. You can also set whether to reset the comparator and BIN judgment
results simultaneously with the measurement start signal.
See "11.2 Timing Chart" (p. 369)
5.9.4 Setting the Delay Time from the Output of Com-
parator Judgment Results until Output of EOM
(LOW) and Resetting Judgment Results

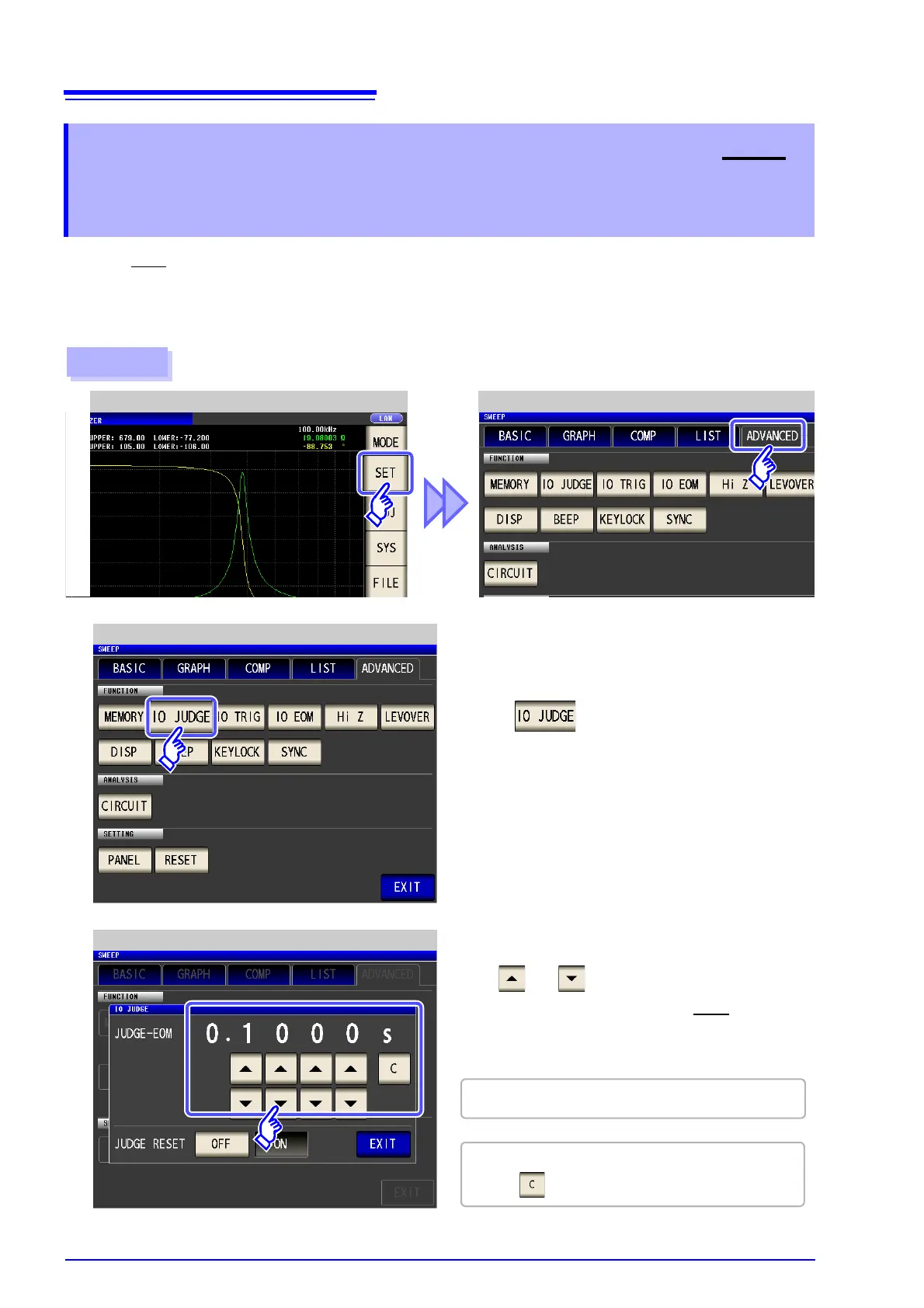

Procedure
Application Settings
1
Analyzer Initial Screen
Press .
2
Application Settings
3
I/O Judgment Setting
Use or to set the delay time for the
period from the output of the comparator judg-
ment results until the output of EOM
(LOW).
Settable range: 0.0000 s to 0.9999 s
If you make a mistake during input:
press to cancel the input and start again.
