4.4 Judging Measurement Results
91
4
Chapter 4 LCR Function
3
Setting Upper and Lower Limit Values as (%) Values Relative to the Offset
from the Reference Value (Deviation Percentage Mode)

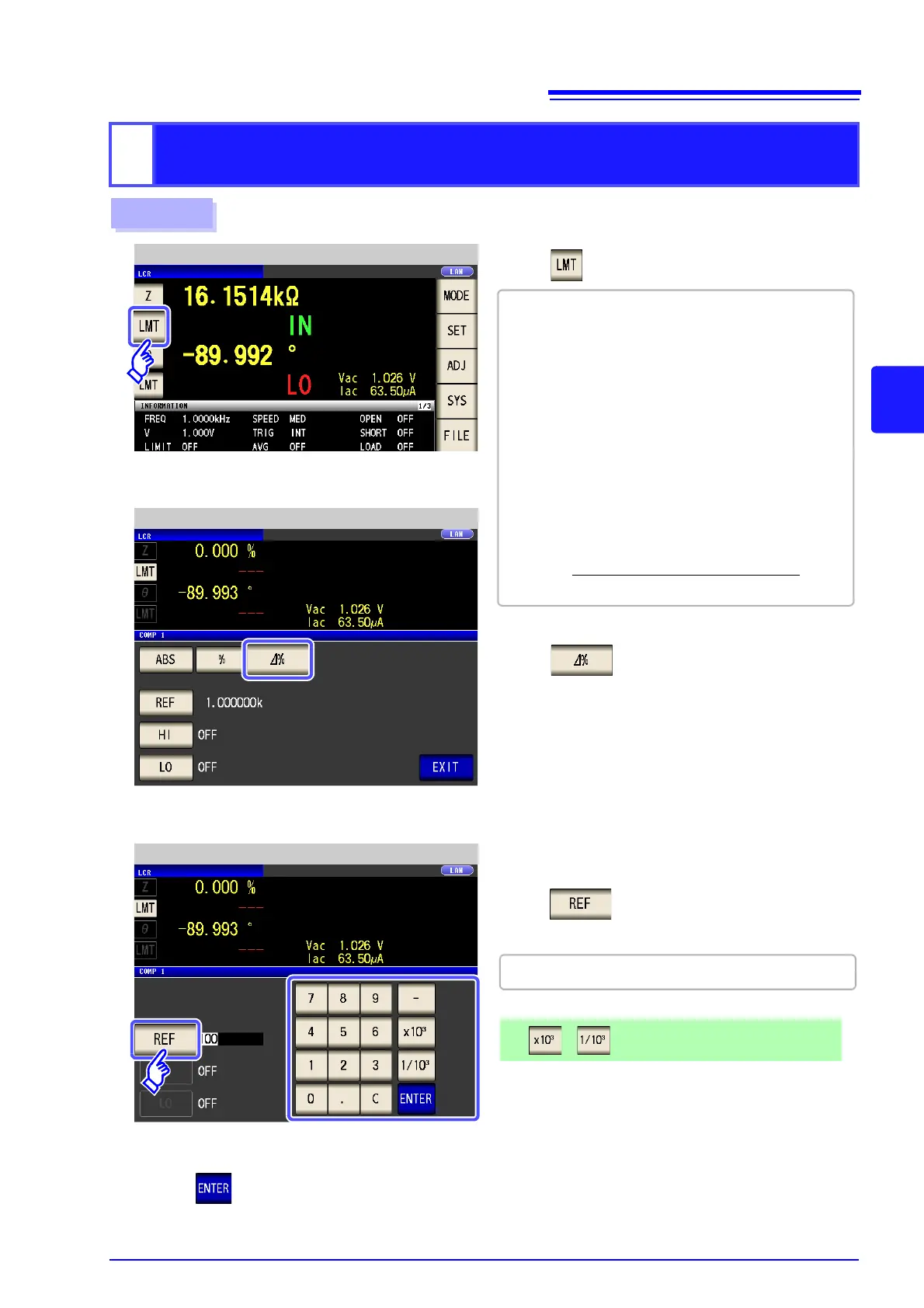

Procedure
1
Press .
Press and use the numeric keypad to
enter the reference value.
4
Press to confirm the reference value.
/
a/ f/ p/ n/ / None/ k/ M/ G
Press to select deviation percentage
mode.
2
3
• In the deviation percentage mode, the measurement
value is displayed as a deviation (%) from the refer-
ence value.
• The reference value and upperand lower limit values
are set in the same manner as in the percentage
mode.
See "Setting the Upper or Lower Limit Value as a
Percentage (%) Relative to a Reference Value
(Percentage mode)" (p. 89)
• The settings of the reference value and the upper
and lower limit values are common to both the per-
centage mode and deviation percentage mode.
Settable range: -9.999999G to 9.999999G
•The % value is calculated using the following equa-
tion:
% =
|reference value|
measurement value - reference value
×100
LCR Initial Screen
Comparator Condition Setting
Reference Value Setting
