7.5 Calculating Values Scaling
302
Scaling applies a compensation function to the measurement value.This function can be used to provide com-
patibility among measurement devices. Set the compensation coefficients a and b for the measurement val-
ues of the first to fourth parameters to compensate by the following expression.
See "Appendix 1 Measurement Parameters and Arithmetic Expressions"(p. A1)
However, if the parameter corresponding to X is either D or Q, scaling is applied to  as shown in the following
expression, and then D or Q is obtained from  '.
7.5 Calculating Values Scaling
LCR
ANALYZER
Y = a × X + b
 ' = a ×  + b
X: the first to fourth parameter measurement value
a: integration value of the measured value X
Y: the last measurement value
b: the value added to measured value X
 ': compensation value of 
Procedure

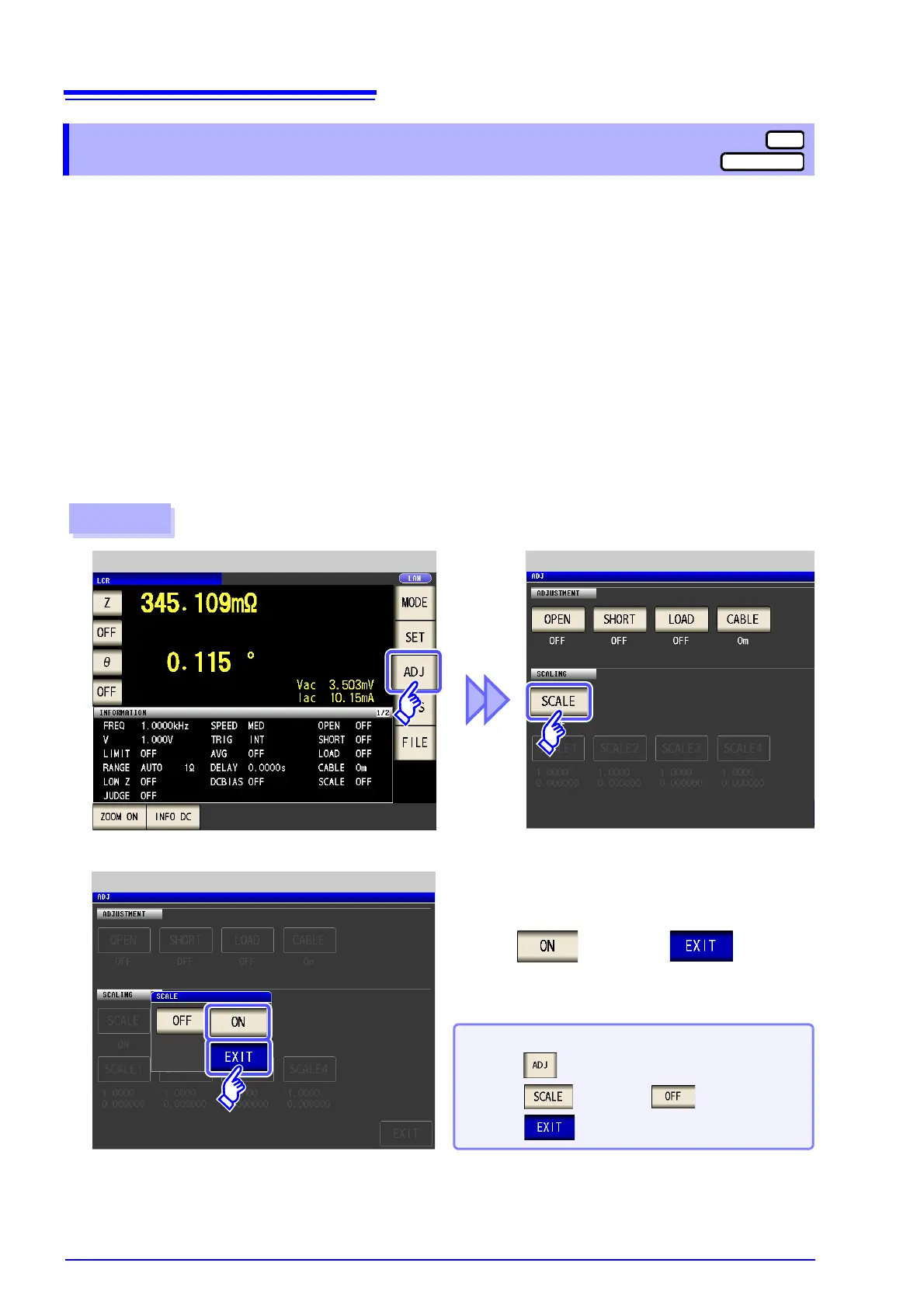

Compensation Screen
1
LCR Initial Screen
2
Select , and press to
confirm the selection.
When you want to cancel scaling:
1. Press to switch to the [Compensation Screen].
2. Press and select .
3. Press to confirm the setting.
Scaling Compensation Setting
