Hioki IM3570 - Vertical Axis Scale Setting

5.5 Setting the Graph Display Method
183
5
Chapter 5 ANALYZER Function
Set the draw method for the vertical axis scale to linear axis or logarithmic axis.
2
Vertical Axis Scale Setting
Procedure

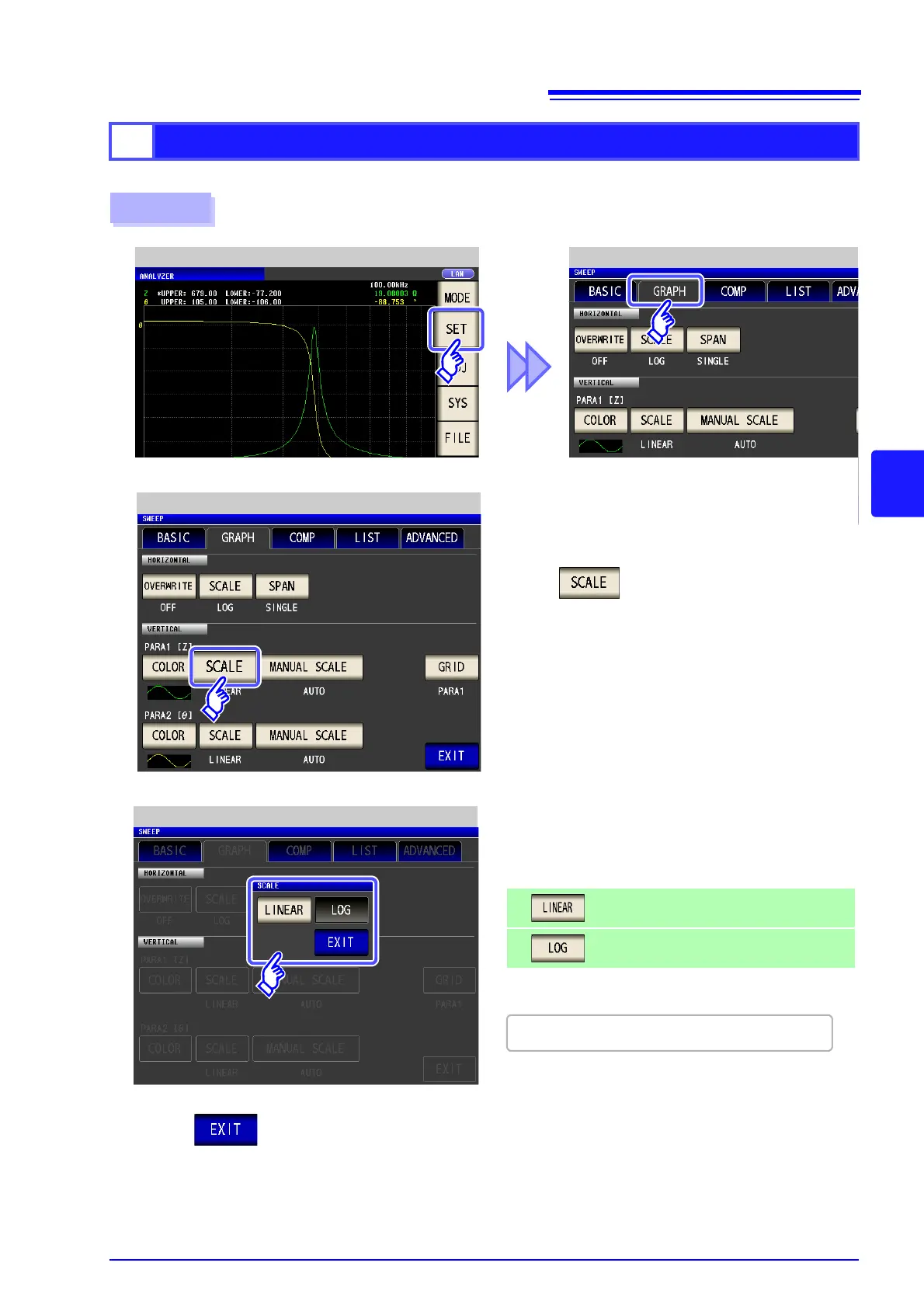

Analyzer Initial Screen
4
Press to close the setting screen.
3
Press .
2
Graph Settings
Graph Settings
Horizontal Axis Scale Setting
Select the draw type.
Sets the vertical axis to linear (linear axis).
Sets the vertical axis to log (logarithmic axis).
1
Also set parameter 2 in the same way.
