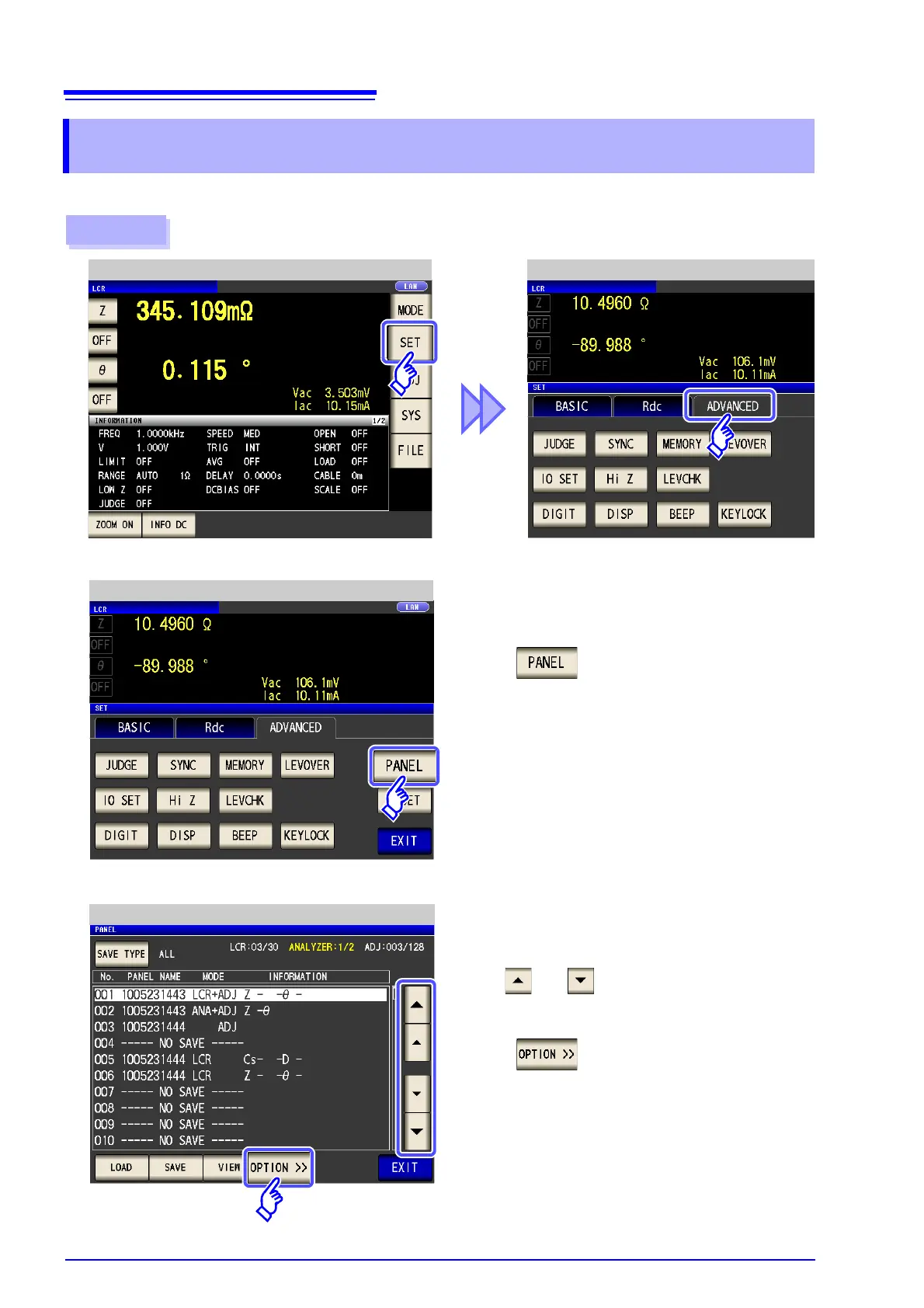

9.4 Deleting a Panel

326

You can delete a panel saved to the instrument.

9.4 Deleting a Panel

Procedure

Use or to select the number of the

panel to delete.

3

Press .

2

Press .

LCR Initial Screen Application Settings

Application Settings

1

Panel Main Screen
