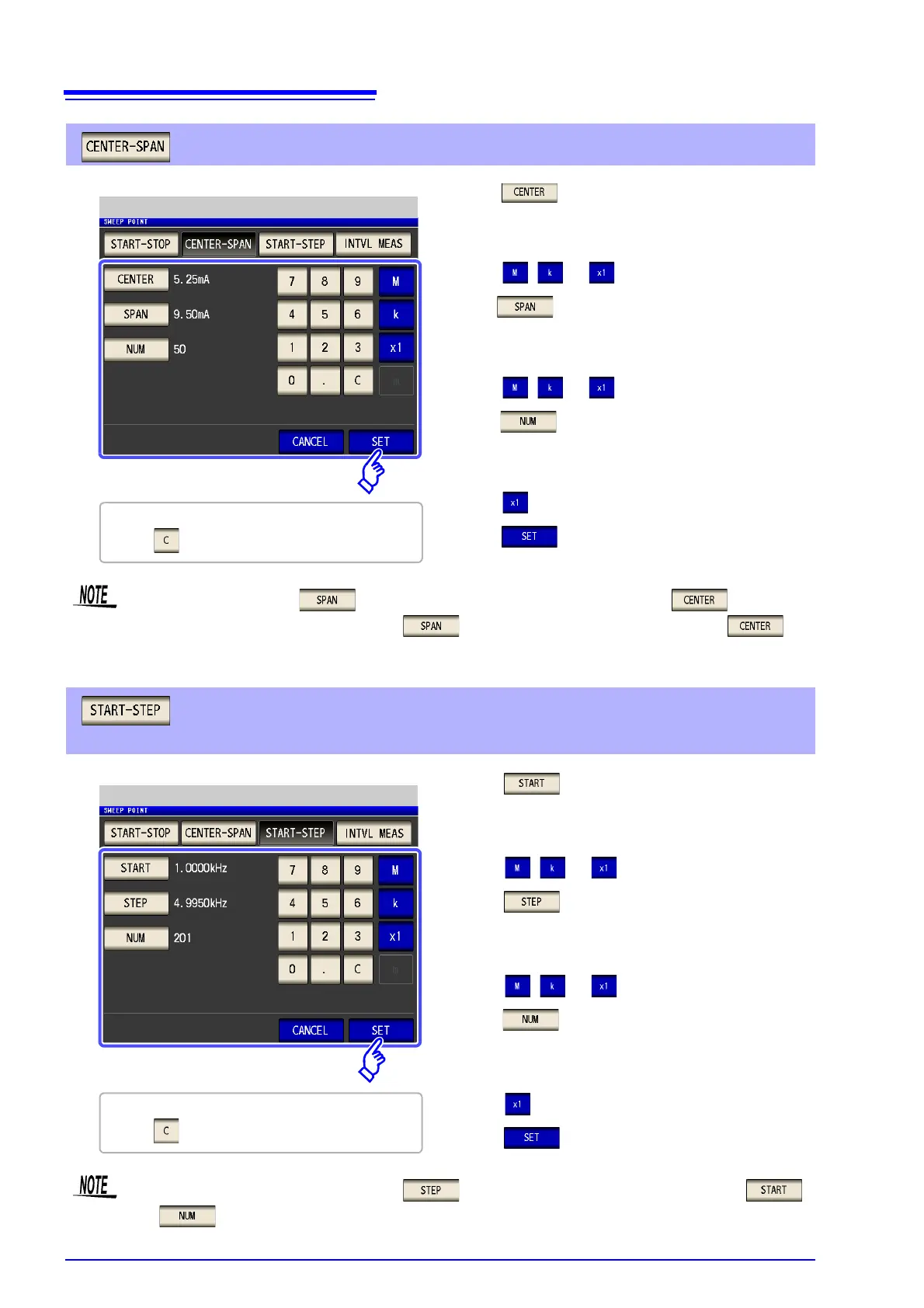

5.3 Normal Sweep
146
Setting the center value of the sweep range and the sweep width
Setting the start value of the sweep and the step width of the
sweep point
1. Press and use the numeric keypad to set the
center value of the sweep range.
Settable range: 4 Hz to 5 MHz
2. Press , , or key to confirm the setting.
3. Press and use the numeric keypad to set the sweep
width.
Settable range: 4 Hz to 5 MHz
4. Press , , or key to confirm the setting.
5. Press and use the numeric keypad to enter the
number of sweep points.
Settable range: 2 to 801
6. Press key to confirm the setting.
7. Press key to confirm the setting.
CENTER-SPAN Setting
If you make a mistake during input:
press to cancel the input and start again.
The sweep width set with is centered on the frequency that was set with . Therefore,
the range of values that you can set with varies depending on the value set with .
1. Press and use the numeric keypad to set the
start value of the sweep.
Settable range: 4 Hz to 5 MHz
2. Press , , or key to confirm the setting.
3. Press and use the numeric keypad to set the
step width of the sweep point.
Settable range: 4 Hz to 5 MHz
4. Press , , or key to confirm the setting.
5. Press and use the numeric keypad to enter the
number of sweep points.
Settable range: 2 to 801
6. Press key to confirm the setting.
7. Press key to confirm the setting.
START-STEP Settings
If you make a mistake during input:
press to cancel the input and start again.
The range of values that can be set for varies depending on the values set with
and .
