3.2 When Analyzer Measurement Mode
36
3

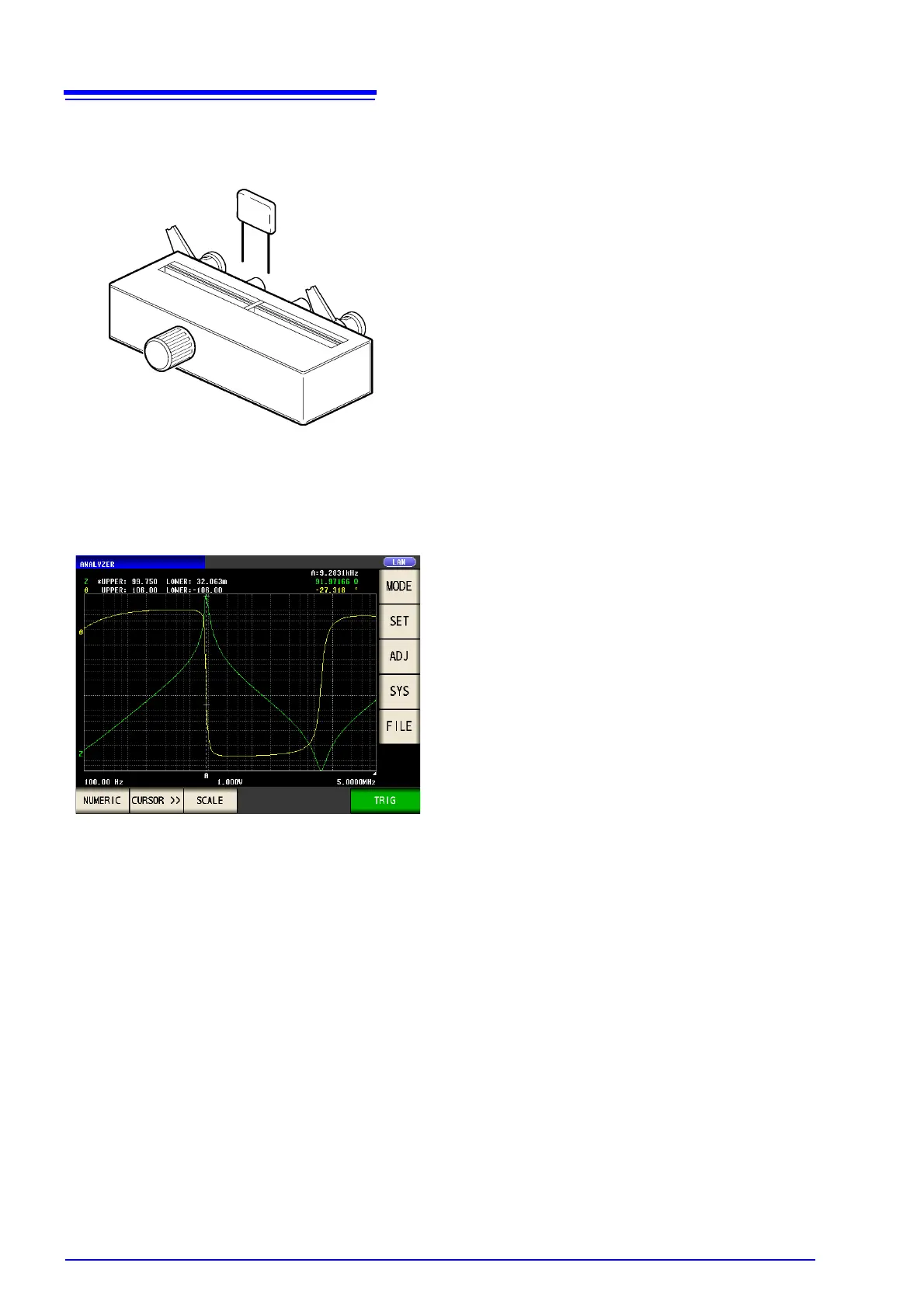

Connect the test sample to the 9263 Test Fixture.
4
Execute the sweep.
• When you want to check the measurement values.
See: "5.6.1 Setting the Cursor" (p. 188)
• When you want to check the local maximum and
local minimum values quickly.
See: "5.6.3 Performing Measurement Value Search"
(p. 194)
• When you want to judge sweep results.
See: "Area Judgment" (p. 197)
• When you want to judge whether the peak position
is appropriate.
See: "Peak Judgment" (p. 208)
