5.5 Setting the Graph Display Method
180
The following shows an example of the graph display methods for single span mode and segment mode.
In this example, sweep ranges such as the following are set for the sweep parameter frequency.

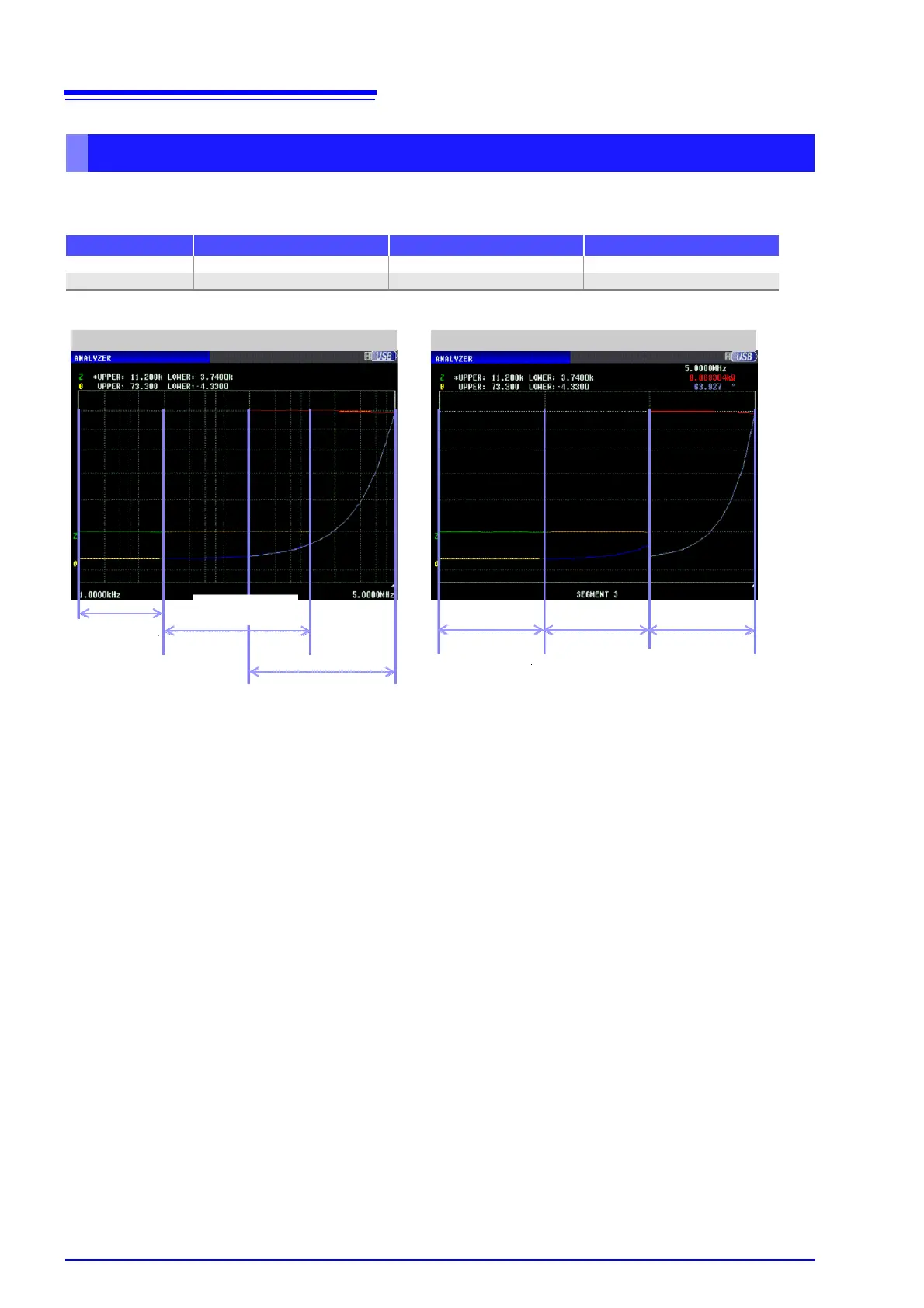

Comparison of Single Span Mode and Segment Span Mode
Sweep Settings Segment1 Segment2 Segment3
Sweep parameter Frequency Frequency Frequency
Sweep range 1.0000 kHz to 10.000 kHz 10.000 kHz to 500.00 kHz 100.00 Hz to 5.0000 MHz
When the single span mode When the segment span mode
Segment2
Segment3
Segment1
Segment1 Segment2 Segment3
