5.3 Normal Sweep
158
Do not switch between V, CV and CC while the test sample is still connected to the mea-
surement terminals because doing so may damage the test sample.
The frequency and measurement level that can be set vary depending on the set sweep
point range.
Example: When the sweep parameter is set to open circuit voltage level, the settable range
of frequencies is 4.00 Hz to 1.0000 MHz if there is a sweep point of 1 V or above.
For details, refer to "4.2.1 Setting the Measurement frequency" (p. 41) and "4.2.2 Setting
the Measurement signal level" (p. 43) of the LCR function.
3

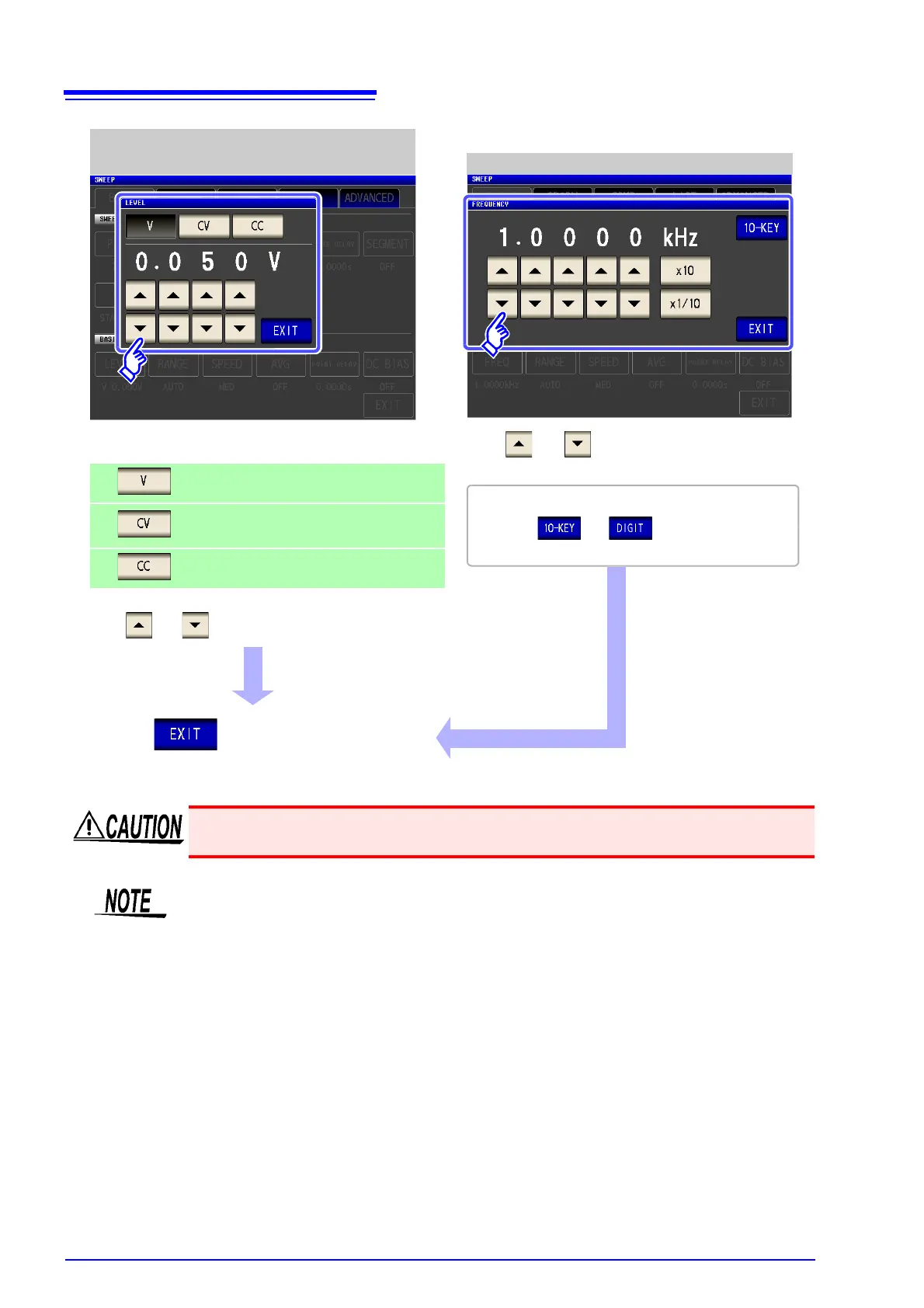

Use or to enter the voltage or current value.
Open-circuit Voltage, Constant Voltage, & Constant
Current Settings
Frequency Setting
4
Press to close the setting screen.
Select the measurement level.
Open circuit voltage level (p. 45)
Voltage level between test sample terminals
(p. 45)
Current level through test sample (p. 47)
• Settable range: 4.00 Hz to 5.0000 MHz
• Press or to change the input
method.
Use or to enter each digit of the
frequency.
To Next Page
