HP MSM7XX User Manual

Mobility traffic manager
Scenario 5: Traffic routing using VLANs
9-49

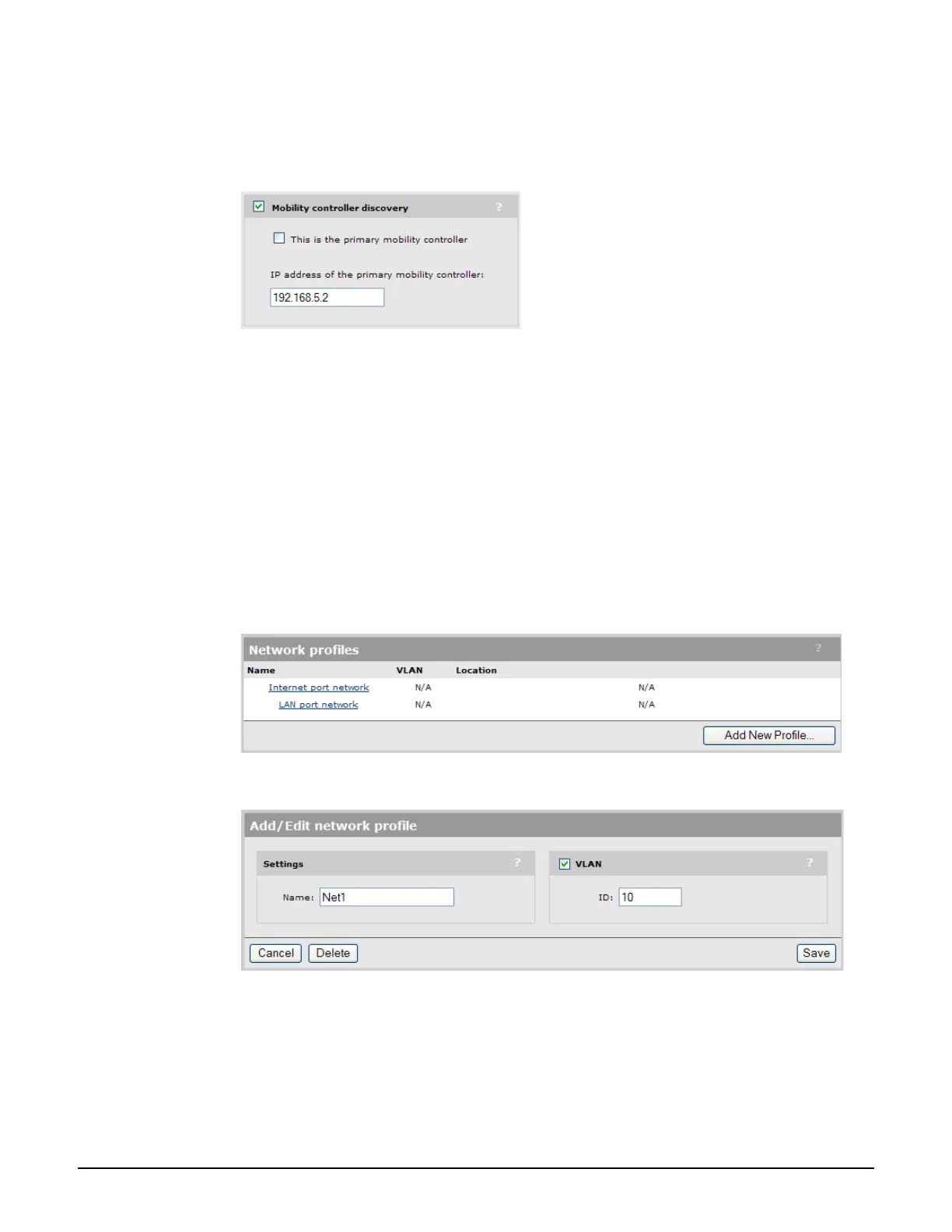

Controller 2 configuration
Mobility domain
1. Select Controller >> Management > Device discovery.
(For complete screenshot see Defining the mobility domain on page 9-9.)
 Select Mobility controller discovery.
 Clear This is the primary mobility controller.
 Set the IP address of the primary mobility controller to 192.168.5.2.
2. Select Save.
VSC
Configuration is the same as for controller 1.
Network profiles
1. Select Controller >> Network > Network profiles.
2. Select Add New Profile.
 Under Settings, set Name to Net1.
 Select VLAN.
 Under VLAN, set ID to 10.
3. Select Save.
