Mobility traffic manager
Scenario 5: Traffic routing using VLANs
9-50
4. Repeat steps 2 and 3 to define the following profiles:
Profile name = Net2, VLAN ID = 20
Profile name = Net3, VLAN ID = 30
Profile name = APs, VLAN ID = 2

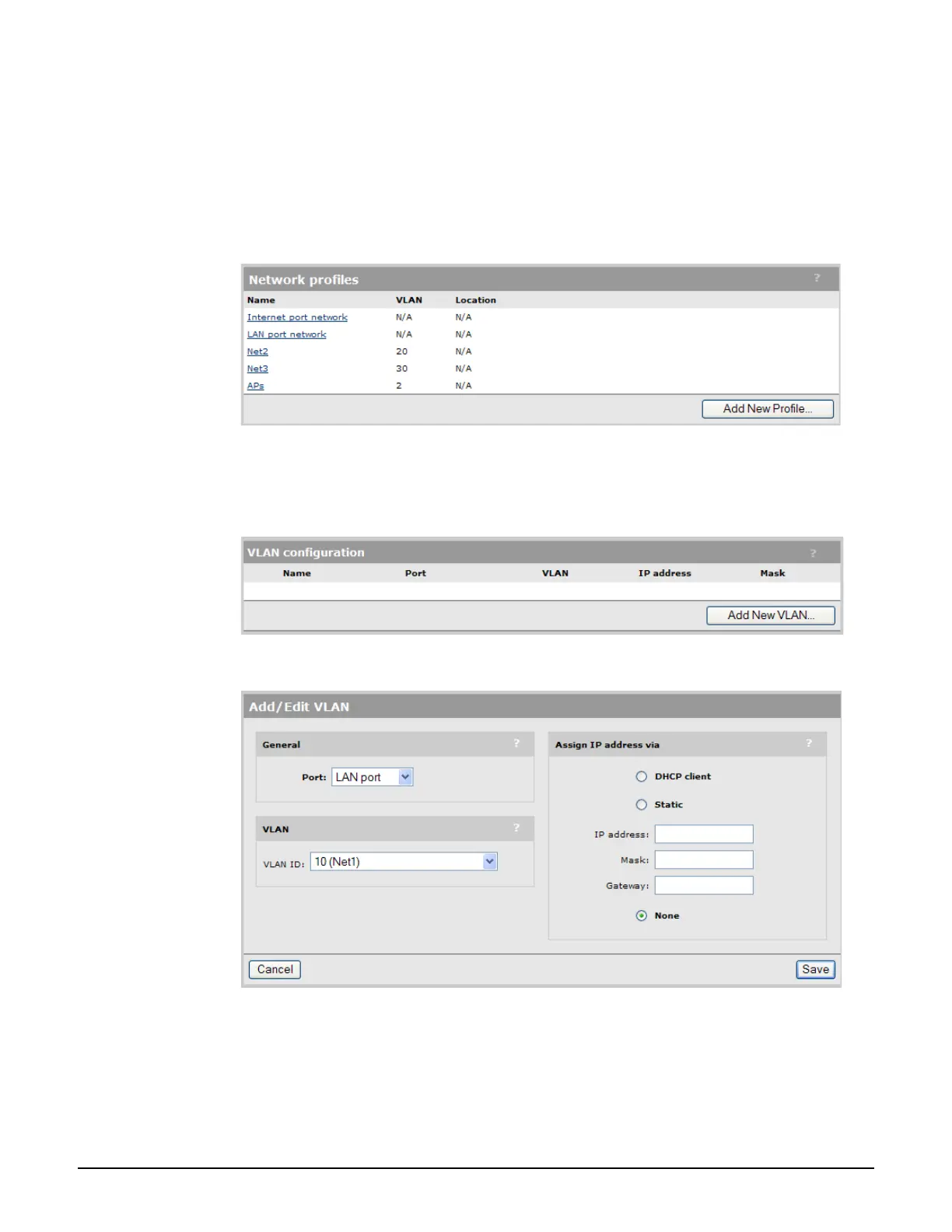

5. When done, the list of network profiles should look like this:
VLANs
1. Select Controller > Network > Ports. Initially, the VLAN configuration list will be
empty.
2. Select Add New VLAN.
Under General, set Port to LAN port.
Under VLAN, set VLAN ID to 10 (Net1).
3. Select Save.
