5
BRIDGE MODE SETTING SCREEN
5-90
8. [Port Settings] Menu
w Valid Timing ……………… Select the condition to send the audio signal.
(Default: Control Data Detection)
• Always-on Connection
Always sends the audio signal to the destination selected in [Input
Connection Port].
• When "Emergency" is selected in [Input Connection Port], this option can-
not be selected.
• Voice Data Detection
When an audio signal is input, sends the audio signal to the destination
selected in [Input Connection Port].
• Control Data Detection
When the control signal is input, sends the audio signal to the destination
selected in [Input Connection Port].
e
Power for the Microphone
… Select “Enable” to supply the voltage to the microphone connected to A3/A4
terminal (Audio input) microphone. (Default: Disable)
r Reference Level ………… Select the input line A3/A4 terminal (Audio input) sensitivity from [–10 dBs]
and [–40 dBs] (0 dBs=0.775 Vrms). (Default: –10dBs)
• The sensitivity differs depending on the microphone.

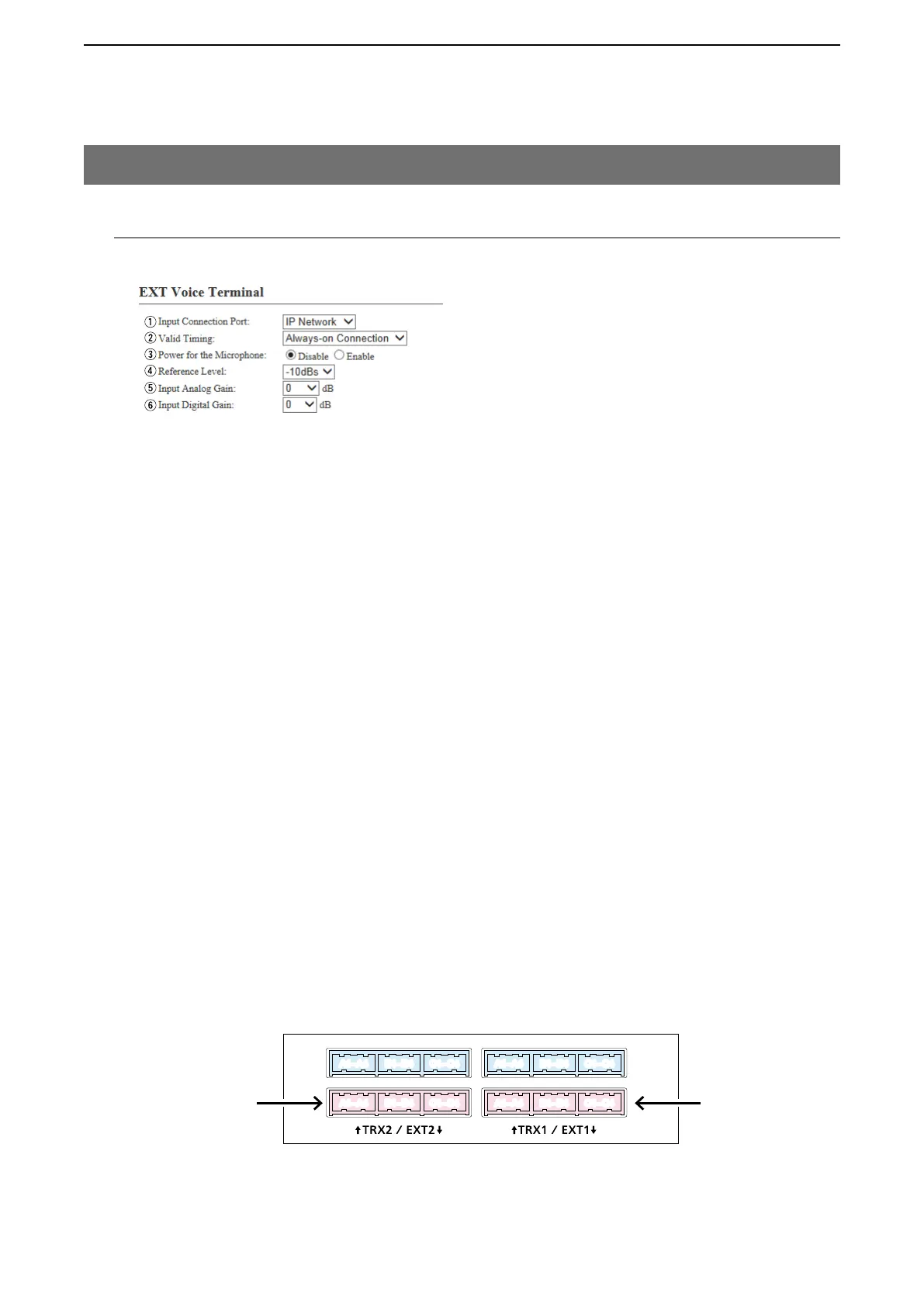

M EXT Voice Terminal (continued)
VE-PG3 (Rear view)
• See Section 8 for port details.
A1~A4A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
[EXT1] port[EXT2] port
[Port Settings]–[EXT Input 1 (EXT1)/EXT Input 2 (EXT2)]
To Next Page
