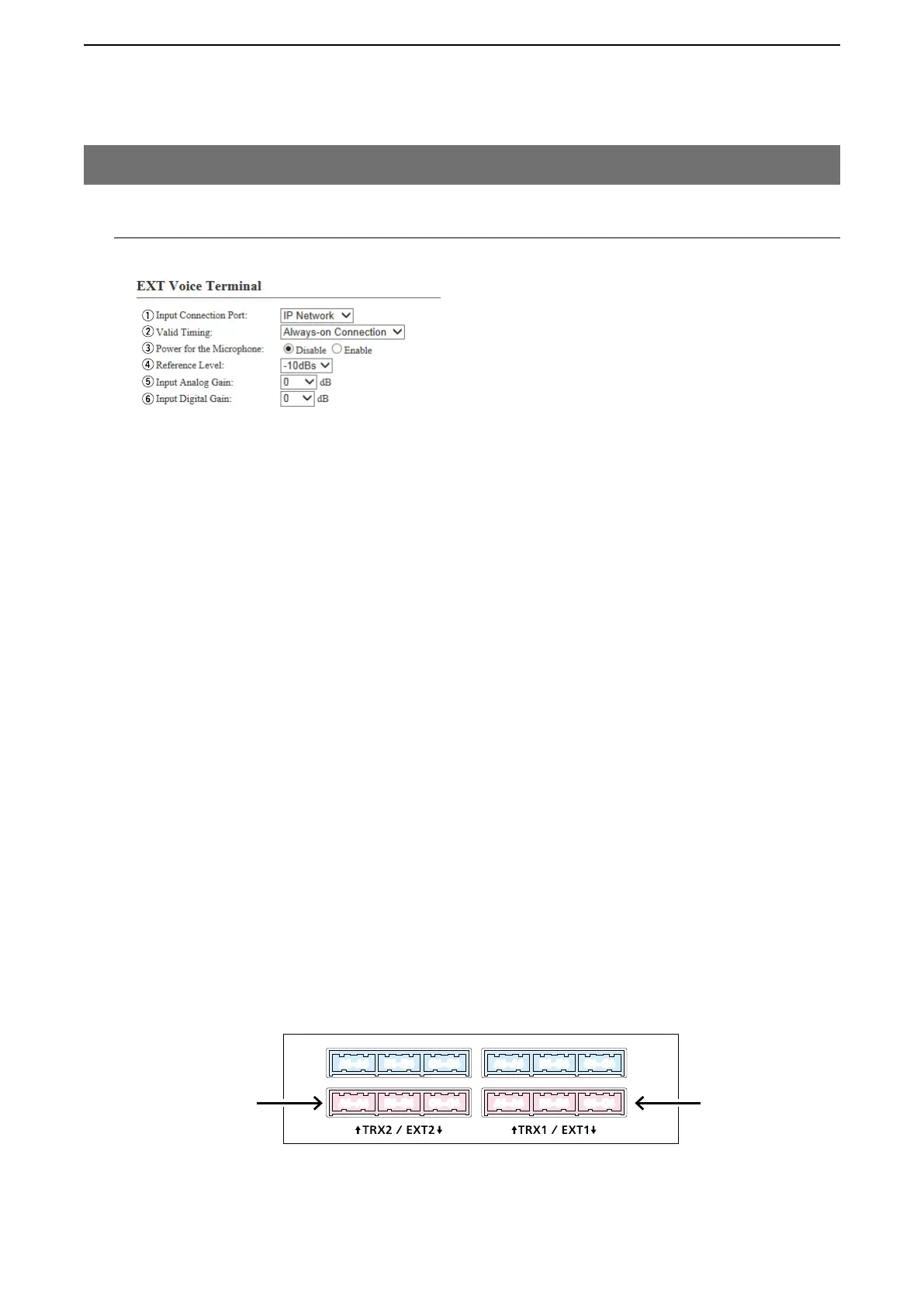

BRIDGE MODE SETTING SCREEN
5-91
8. [Port Settings] Menu
t Input Analog Gain ……… Set the analog signal input (A3/A4 terminal (Audio input)) gain. (Default: 0)
Range: "+26" to "–26" (in 1 dB step)
y Input Digital Gain ………… Set the digital signal input (A3/A4 terminal (Audio input)) gain. (Default: 0)
Range: "+6" to "–12" (in 1 dB step)
M EXT Voice Terminal (continued)
VE-PG3 (Rear view)
• See Section 8 for port details.
A1~A4A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
[EXT1] port[EXT2] port
[Port Settings]–[EXT Input 1 (EXT1)/EXT Input 2 (EXT2)]
