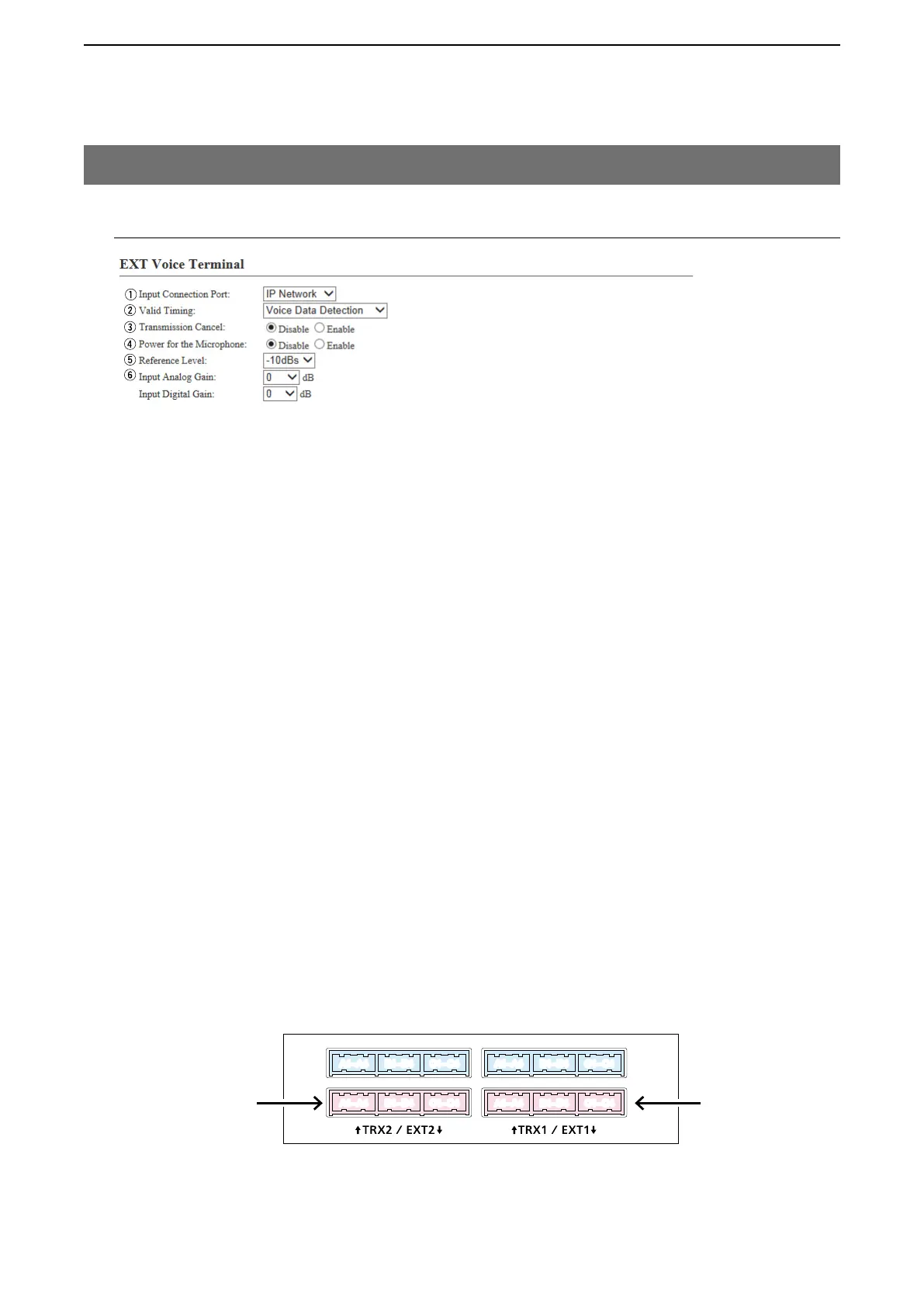

CONVERTER MODE SETTING SCREEN
6-95
t Reference Level ………… Select the input line A3/A4 terminal (Audio input) sensitivity from "–10dBs"
and "–40dBs" (0 dBs=0.775 Vrms). (Default: –10dBs)
• The sensitivity differs depending on the microphone.
y Input Analog Gain ……… Set the input signal (A3/A4 terminal (Audio input)) gain for analog AMP.
(Default: 0)
Range: "+26" to "–26" (in 1 dB step)
u Input Digital Gain ………… Set the input signal (A3/A4 terminal (Audio input)) gain for digital AMP.
(Default: 0)
Range: "+6" to "–12" (in 1 dB step)
M EXT Voice Terminal (continued)
9. [Port Settings] Menu
VE-PG3 (Rear view)
• See Section 8 for port details.
A1~A4A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
A1~A4
A1~A4 B1~B4B1~B4 C1~C4C1~C4
[EXT1] port[EXT2] port
[Port Settings]–[EXT Input 1 (EXT1)/EXT Input 2 (EXT2)]
u
*Appears only when “Voice Data Detection” is selected in [Valid Timing].
*
