6
CONVERTER MODE SETTING SCREEN
6-117
9. [Port Settings] Menu

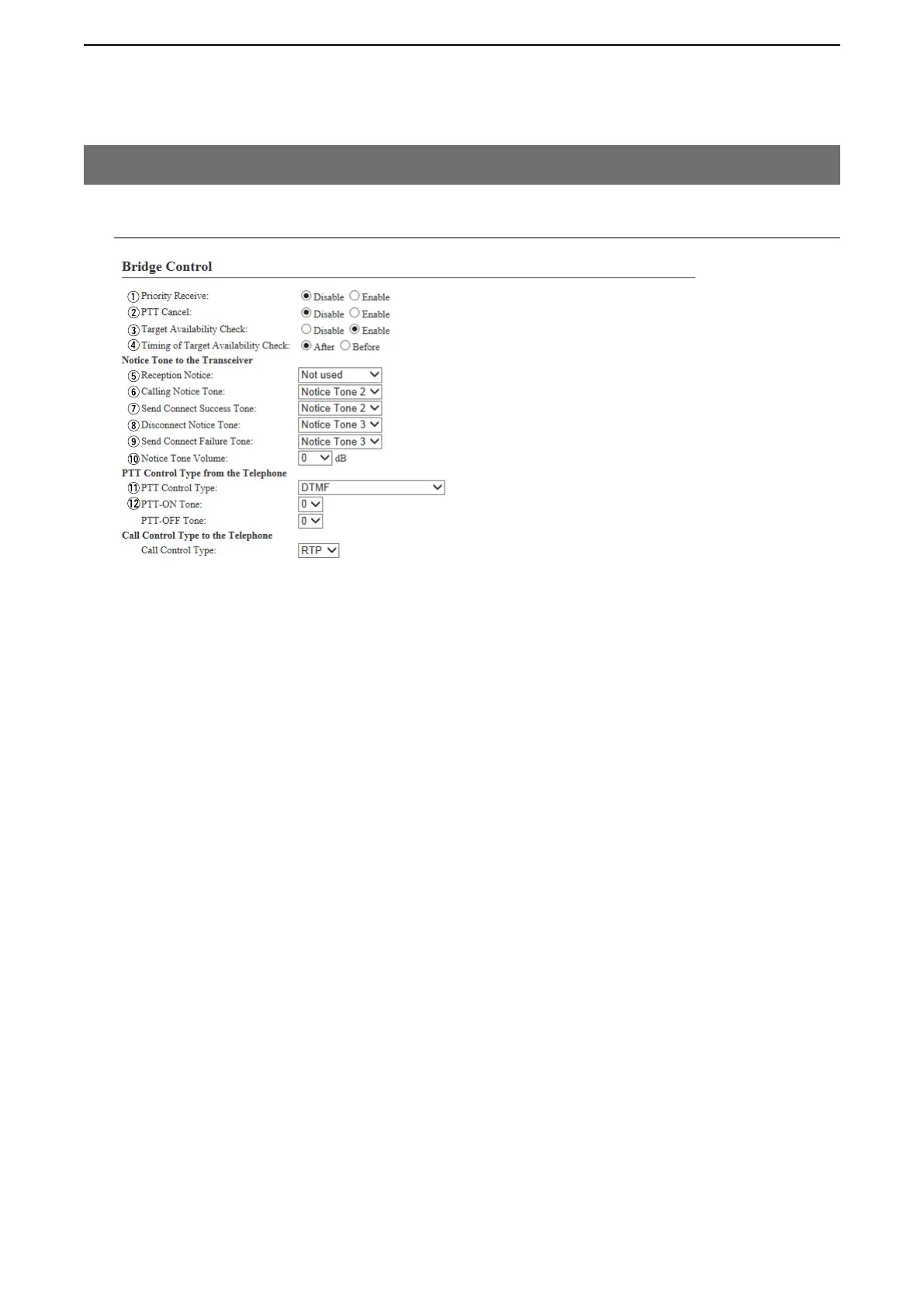

M Bridge Control (continued)
i Disconnect Notice Tone … Select “Tone 1” to “Tone 3” to notify that the IP phone’s handset is put on.
(Default: Notice Tone 3)
o Send Connect Failure Tone Select “Tone 1” to “Tone 3” to notify that the calling IP phone is not available.
(Default: Notice Tone 3)
!0 Notice Tone Volume ……… Select the tone level for above items. (Default: 0)
Range:“+6” to“–12" (dB)
PTT Control Type from the Telephone
!1 PTT Control Type ………… Select the signal type to control the transmission. (Default: VOX)
• VOX: The communication route is connected when
an audio input is detected.
• DTMF: The communication route is connected when
a DTMF tone is detected.
• Always Send during Talking: The VE-PG3 keeps sending the PTT control
signal, once the communication route has
been established.
[Port Settings]–[Bridge 1–Bridge 4]
*Appears when “G.711u Signaling” is selected in the [Voice Coding] item.
!3
!4
*
*
To Next Page
