CONVERTER MODE SETTING SCREEN
6-137

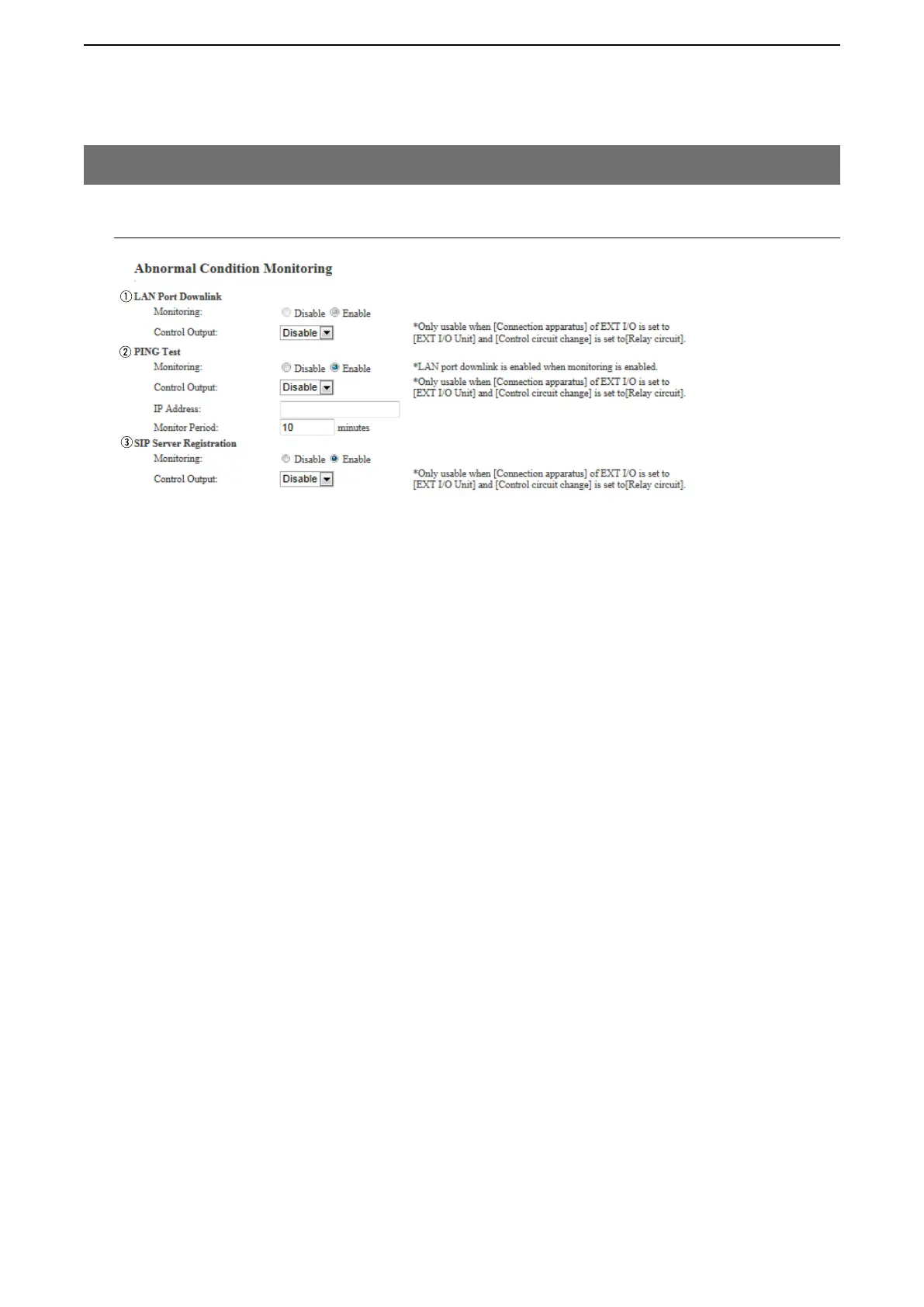

M Abnormal Condition Monitoring (continued)
10. [Expansion] Menu
[Expansion]–[Abnormal Condition Monitoring]
• This is an example.
w PING test ………………… Select "Enable" to send the PING commands to the specified IP address.
(Default: Disable)
When the Ethernet cable disconnects from the VE-PG3’s [LAN] port, the
[WAN] LED blinks Orange, and the error message is displayed on the
“SYSLOG” screen in the “Information” menu.
Control Output
Select "Enable" to output the error detect signal from the B1/B2 terminal
(+/–). (Default: Disable)
• Select "Relay circuit" in the Control Circuit] item on the [EXT Output] (1/2),
or [EXT I/O] (1/2) screen.
While the error detect signal is sent, the VE-PG3 cannot receive signals
from the external device that is connected to the B1/B2 terminal (+/–).
IP Address:
Enter the destination IP address to send the commands.
Monitor Period:
Set the monitor period between 1 to 4320 minutes. (Default: 10)
To Next Page
