BEFORE USING THE VE-PG3
1-3
Panel description
M Front panel (continued)
• All indicators light while updating the rmware or rebooting.
• The indication may differ, depending on the setting.
D-TRX* Doesn't light No transceiver is connected, or it is in the standby mode.
Green Lights Receiving an audio signal.
Blinks –
Red Lights Sending an audio signal.
Blinks –
Orange Lights The transceiver is communicating.
Blinks –
TRX1
TRX2
Doesn't light No transceiver is connected, or it is in the standby mode.
Green Lights Receiving an audio signal.
Blinks –
Red Lights Sending an audio signal.
Blinks –
Orange Lights The transceiver is communicating.
Blinks –
EXT1
EXT2
Doesn't light No input or output signal.
Green Lights Input is busy.
Blinks –
Red Lights Output is busy.
Blinks –
Orange Lights Input or output is busy.
Blinks –
*For the operation using an IC-FR5000/FR6000.

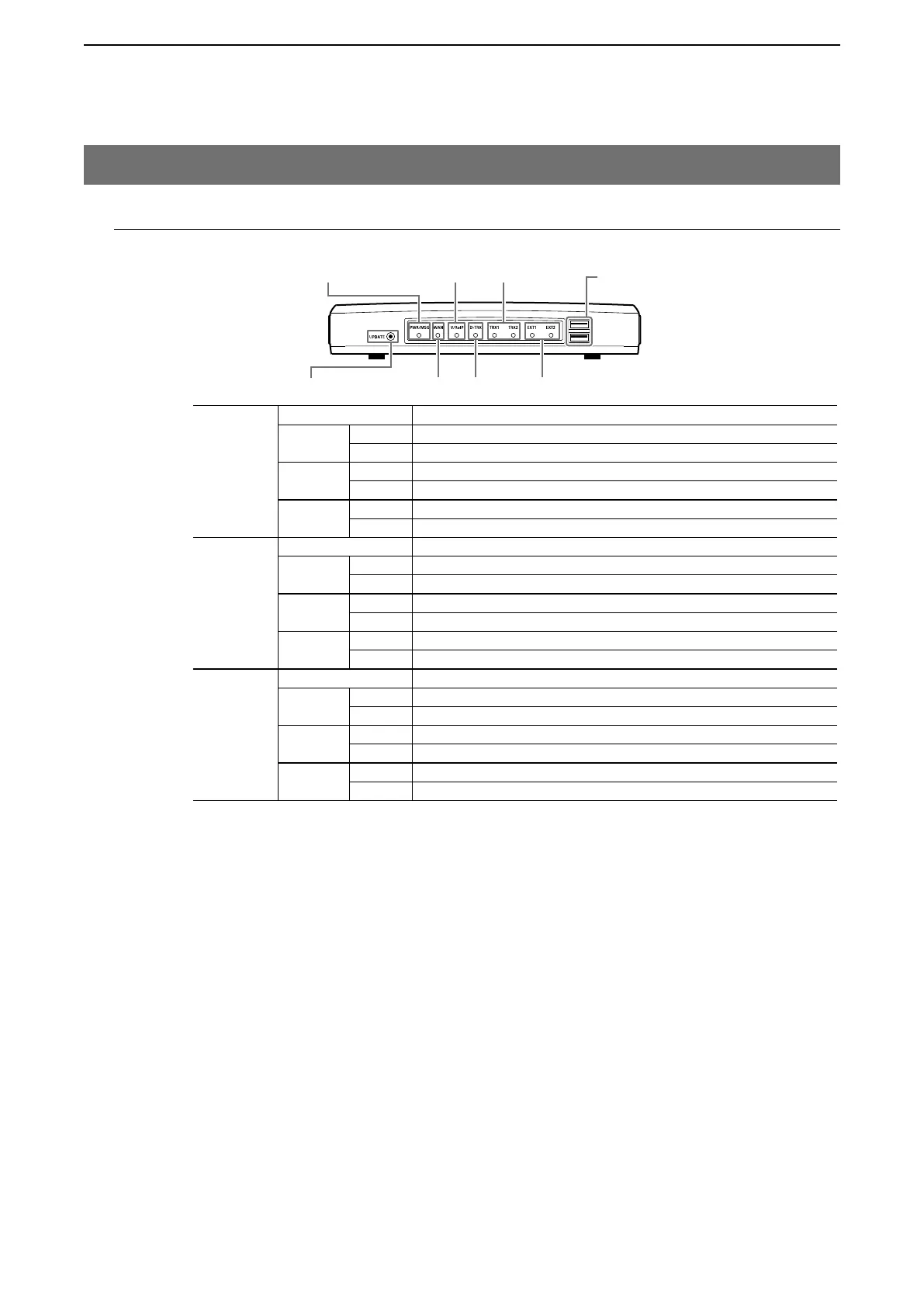

Front view
<UPDATE> button [WAN] LED [EXT] (1/2) LED
[PWR/MSG] LED
[V/RolP] LED
[D-TRX] LED
[TRX] (1/2) LED [USB] port
(USB2.0)
