Root (:) Commands 6
Keysight InfiniiVision 4000 X-Series Oscilloscopes Programmer's Guide 245

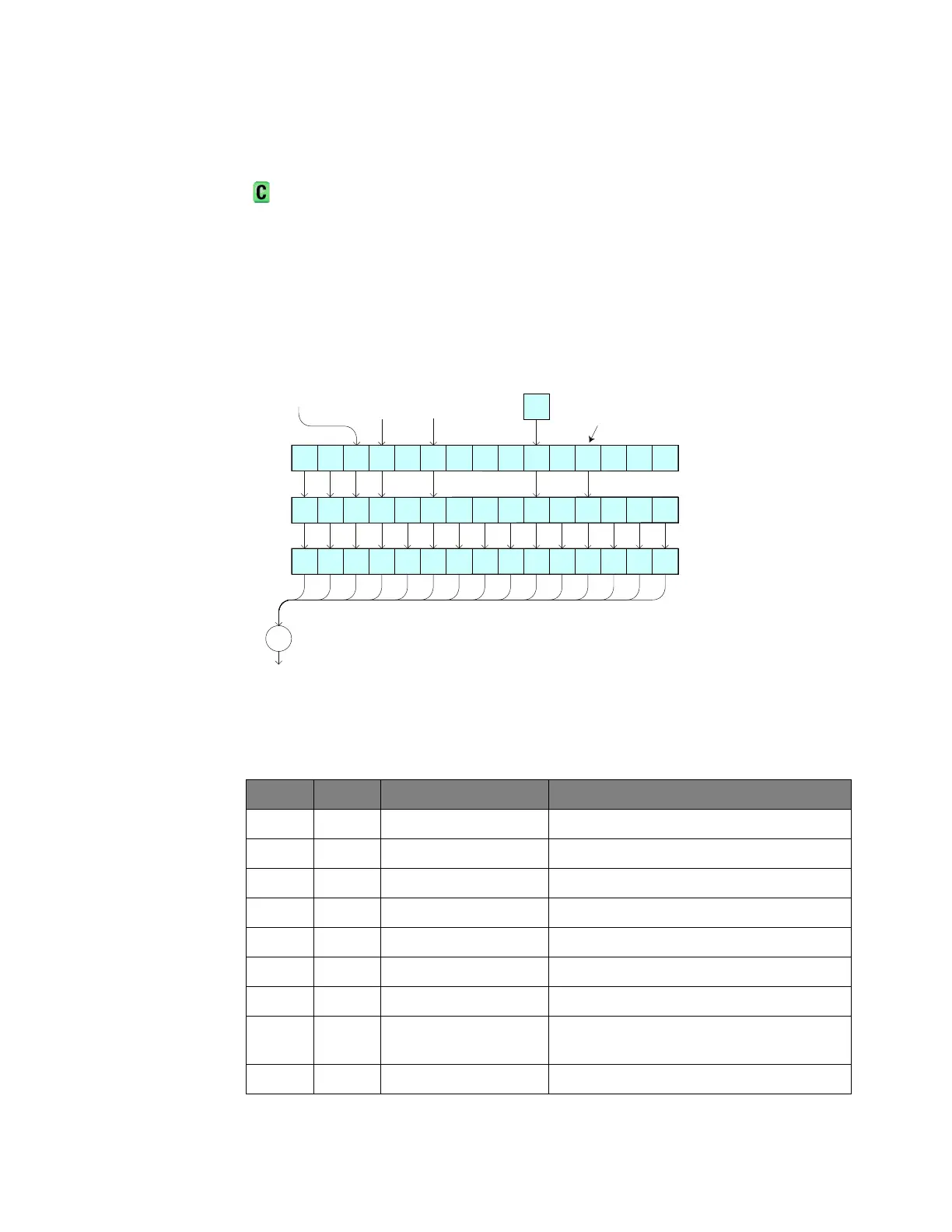

:OPEE (Operation Status Enable Register)
(see page 1428)
Command Syntax
:OPEE <mask>
<mask> ::= 15-bit integer
The :OPEE command sets a mask in the Operation Status Enable register. Set any
of the following bits to "1" to enable bit 7 in the Status Byte Register and
potentially cause an SRQ (Service Request) interrupt to be generated.
Table 85 Operation Status Enable Register (OPEE)
Bit Name Description When Set (1 = High = True), Enables:
14 IOF IO Operation Failed Event when the IO operation fails.
13 IOC IO Operation Complete Event when the IO operation completes.
12 HWE Hardware Event Event when hardware event occurs.
11 OVLR Overload Event when 50Ω input overload occurs.
10 --- --- (Not used.)
9 MTE Mask Test Event Event when mask test event occurs.
8-6 --- --- (Not used.)
5Wait
Trig
Wait Trig Event when the trigger is armed.
4 --- --- (Not used.)
Wait
Trig
Ru n
Arm
Reg
AER?
Run bit set if oscilloscope not stopped
:OPEReration:CONDition?
Operation Status Condition Register
:OPEE
:OPEE?
Operation Status Enable
(Mask) Register
From Overload
Event Registers
To OPER bit in
Status Byte
Register
OVLR
+
OR
10234567981011121314
Wait
Trig
Ru n
:OPERation[:EVENt]?
Operation Status Event Register
OVLR
11
5 3
From Mask Test
Event Registers
MTE
MTE
9
IOF IOC
IOF IOC
1314
12
HWE
HWE
From Hardware
Event Registers
To Next Page
