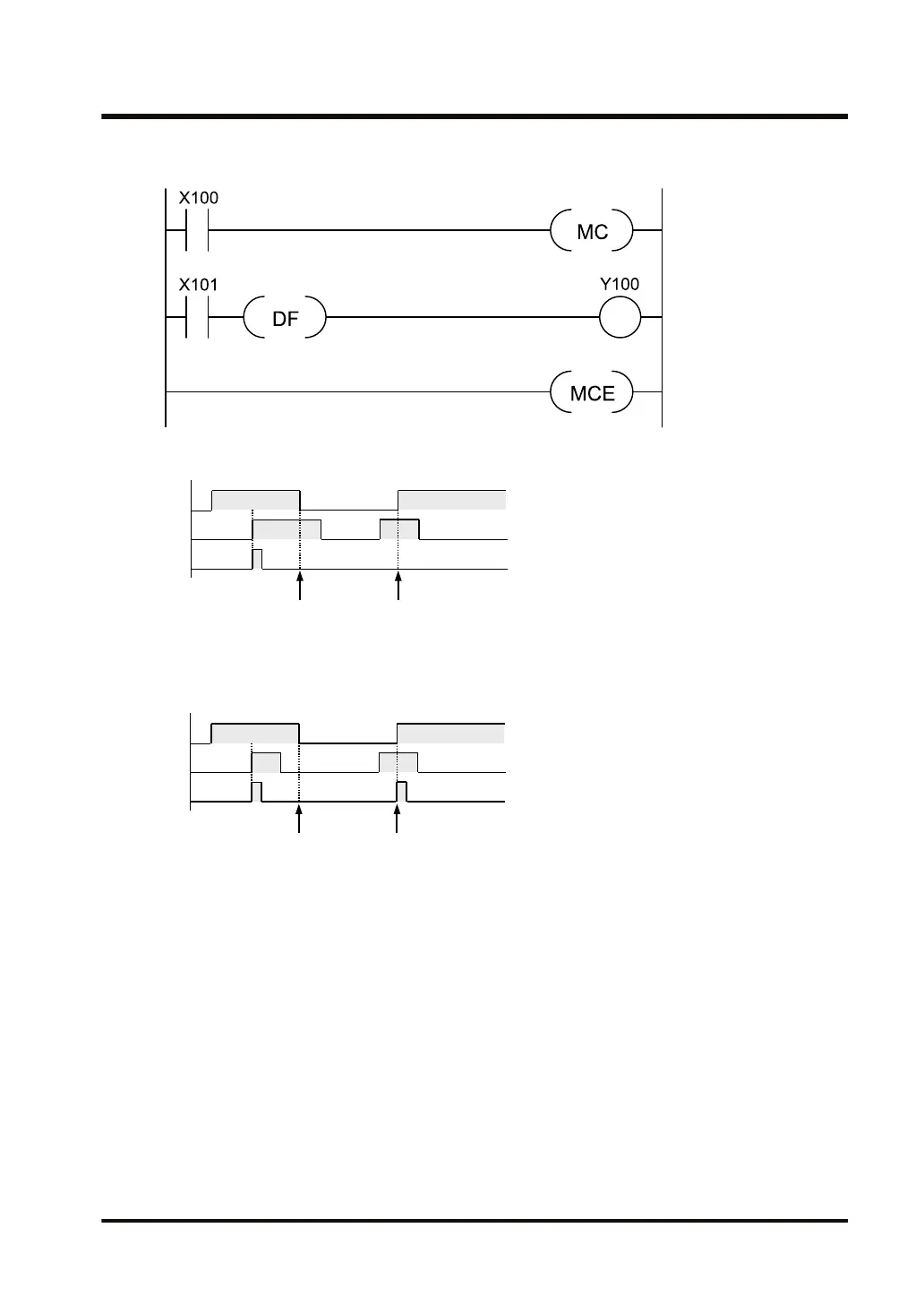

Example 1) When using the differential instruction DF between MC and MCE

Timing chart 1

X100

X101

Previous execution

of differential

instruction

Y100

Differential output is not obtained because X101 as the input

condition for the differential instruction has not been changed

from OFF to ON after the previous execution.

Timing chart 2

X100

X101

Previous execution

of differential

instruction

Y100

Differential output is obtained because X101 as the input

condition for the differential instruction has been changed from

OFF to ON after the previous execution.

19.7 Rise Detection Method

WUME-FP7CPUPGR-12 19-17
