Panasonic FP7 Series Command Reference Manual

■
Counter number and setting value combinations
Counter
number
Counter
set
value

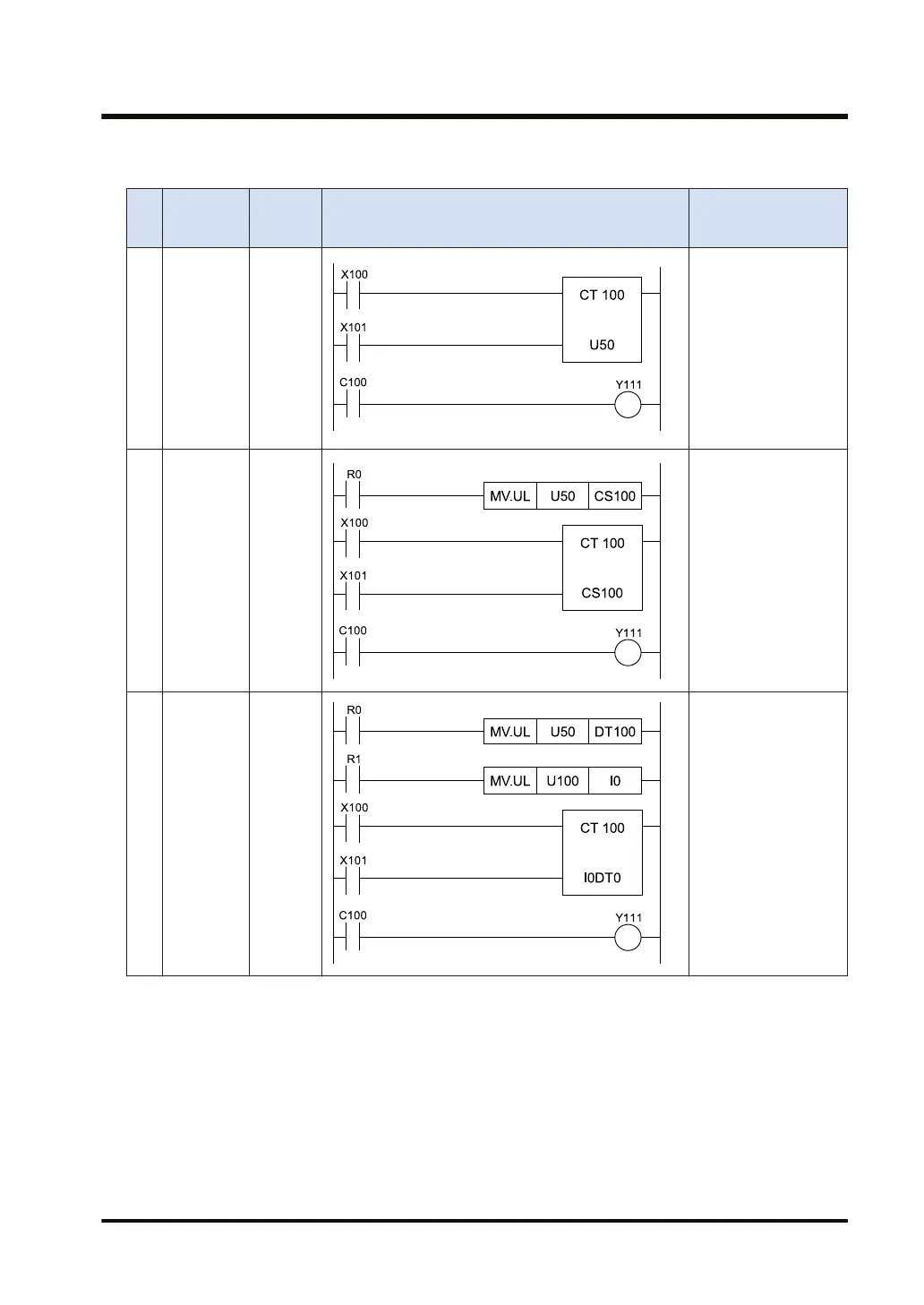

Ladder diagram Description
1 Constant Constant
Setting a constant for
both the counter
number and the
counter setting value
2 Constant
Device
No.
Setting a constant for
the counter number,
and a device number
for the counter setting
value
3 Constant
Device
number
with
Index
modificati
on
Setting a constant for
the counter number,
and a device number
with index modification
for the counter setting
value
On FPWIN GR7, input
the counter instruction
in the following order:
[TM/CT (F5)]
[CT (F6)]
[1][0][0][ENTER]→
[INDEX (F9)][I0 (F1)]
[DT (F5)][0][ENTER]
3.20 CT (Down Counter)
WUME-FP7CPUPGR-12 3-61
