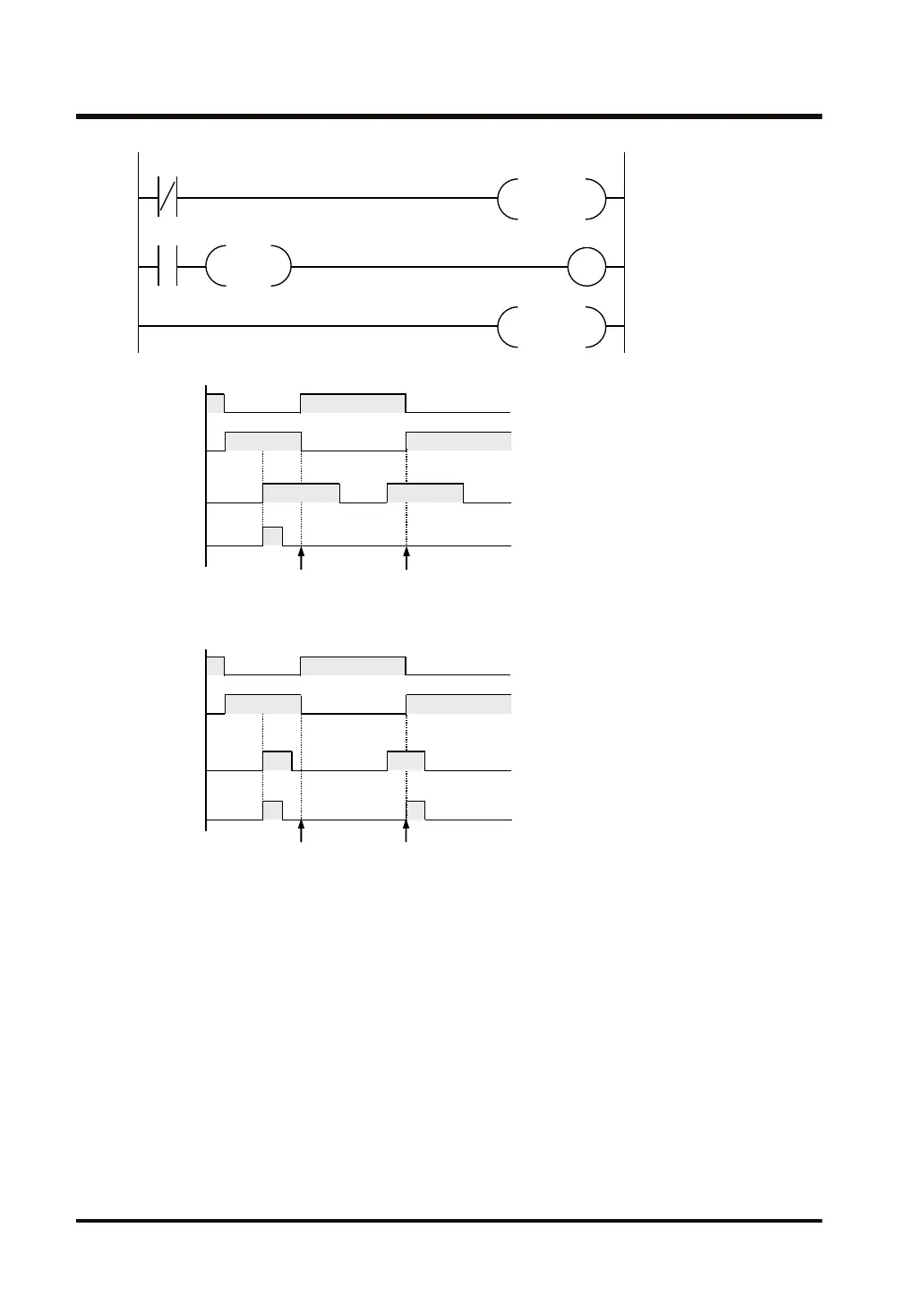

Execution
conditions
X100
Execution
conditions
X100
MCE
MC
X100
DF
X101
Y110
<Timing Chart 1>
X101
Y110
＜ Timing Chart 2＞
X101
Y110
Since the execution condition X101 for the differential
instruction has not changed from the last execution, no
differential output is obtained.
Last differential
instruction execution
Since the execution condition X101 for the differential
instruction has changed from OFF to ON from the last
execution, differential output is obtained.
Last differential
instruction execution
● Output will not be obtained if the same execution condition is specified for an MC instruction
and a differential instruction. If output is needed, enter the differential instruction outside of
the MC-MCE instruction sequence.
3.25 MC (Master Control Relay), MCE (Master Control Relay End)
3-78 WUME-FP7CPUPGR-12
