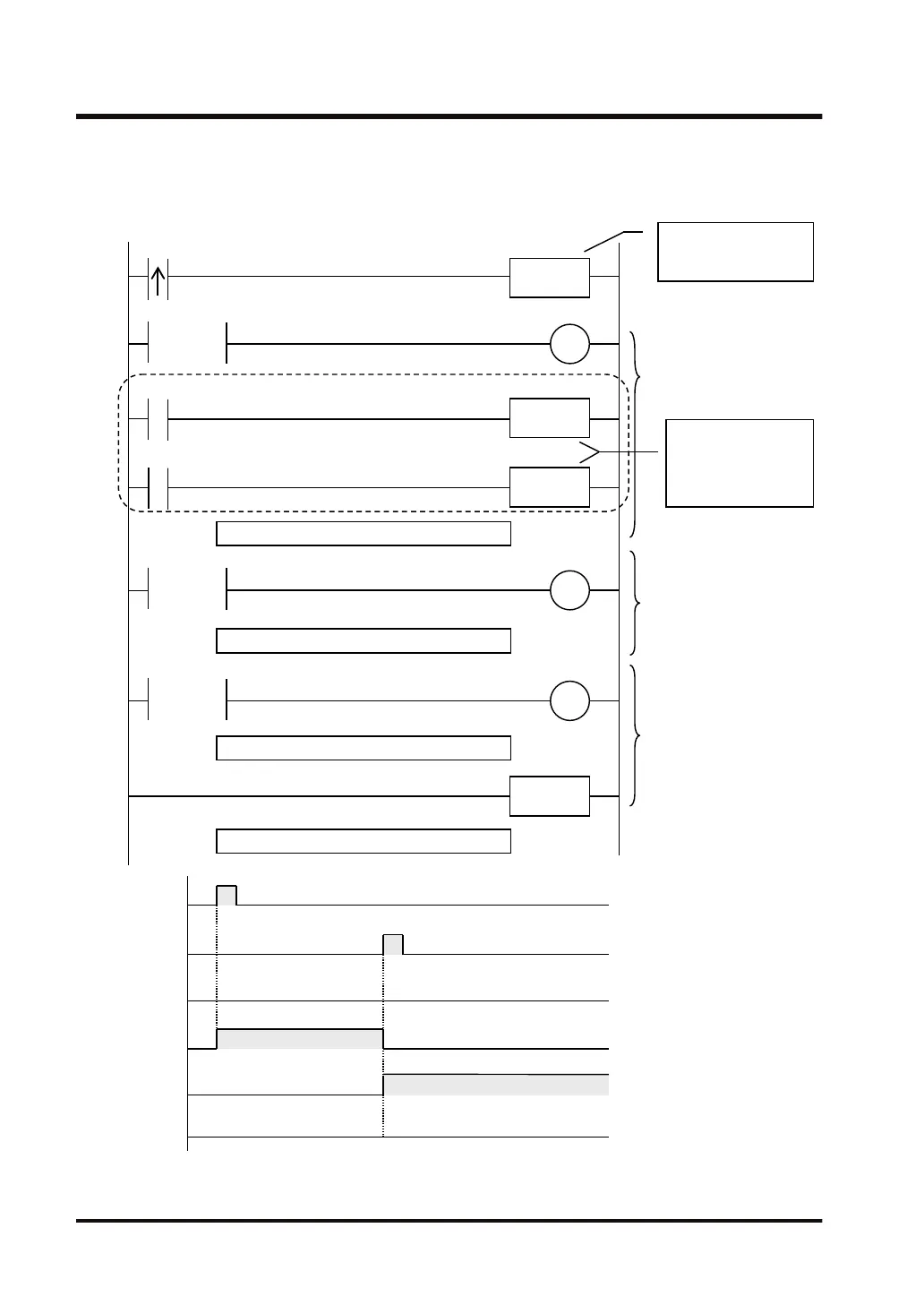

● In the program, write the instruction to start the process to be executed next in each process.
The next process is selected and program execution is transferred according to the
execution conditions.
R1
X101
R1
SSTP
Y110
NSTL
R2
X102
NSTL
（ Program ）
R2
SSTP
Y111
STPE
（ Program ）
Process １
Starts the next
process (process
2 or 3) according
to the condition.
Process ２
X101
Y110
X102
Y111
X103
R3
R3
SSTP
Y112
（ Program ）
Process ３
X103
Y112
Starts the process
(process 1).
NSTL
（Program）
Process 1
Process 2
3.32 SSTP (Start Step) / NSTL (Next Step) / CSTP (Clear Step) / STPE (Step
End)
