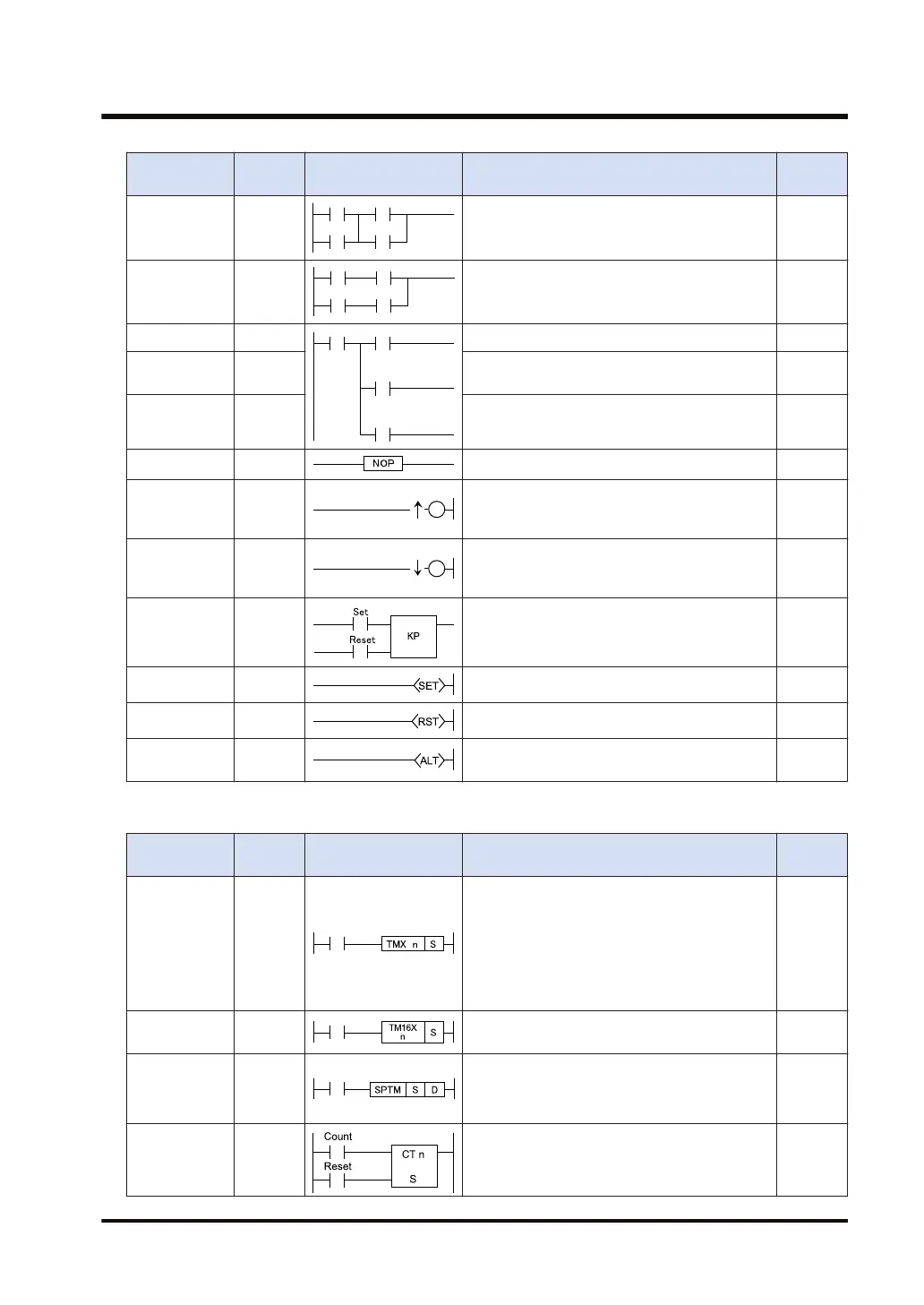

Panasonic FP7 Series Command Reference Manual

Name
Mnemon
ic
Symbol Function overview
Page
AND Stack ANS Connects the multiple blocks serially. "P.3-18"
OR Stack ORS Connects the multiple blocks in parallel. "P.3-20"
Push Stack PSHS Stores the operated result up to this instruction. "P.3-22"
Read Stack RDS
Reads the operated result stored by the PSHS
instruction.
"P.3-22"
Pop Stack POPS
Reads and clears the operated result stored by
the PSHS instruction.
"P.3-22"
Nop NOP No operation. "P.3-26"
Rising edge
Detection out
↑OT
Outputs the operated result to the specified
output only for one scan when the leading edge
of the signal is detected (for pulse relay P).
"P.3-27"
Falling edge
Detection out
↓OT
Outputs the operated result to the specified
output only for one scan when the trailing edge
of the signal is detected (for pulse relay P).
"P.3-27"
Keep KP
Turns ON at set input trigger and holds until
reset trigger turns ON.
"P.3-29"
Set SET Output is set to and held at ON. "P.3-31"
Reset RST Output is set to and held at OFF. "P.3-31"
Alternate out ALT
Inverts the output condition (ON/OFF) each
time the leading edge of the trigger is detected.
"P.3-34"
■
Basic function instructions
Name
Mnemon
ic
Symbol Function overview
Page
Timer (32-bit) TM
On-delay timer. Decrements at the specified
time [S]. When the elapsed value is 0, the timer
contact turns ON.
[S] is specified as 32-bit data (U1 to
U4294967295).
TMS: 0.01ms units/TML: 1ms units/TMR: 0.01s
units/TMX: 0.1s units/TMY: 1s units
"P.3-36"
Timer (16-bit) TM16
For TM16, [S] is specified as 16-bit data (U1 to
U65535).
"P.3-46"
Unsigned
32-Bit Addition
Support Timer
SPTM
Functions as an on-delay timer for 0.01 sec
units.
"P.3-49"
Down counter
(32 bit)
CT
Decrements from the preset value [S]. When
the elapsed value is 0, the counter contact
turns ON.
"P.3-53"
1.1 List of Basic Instructions
WUME-FP7CPUPGR-12 1-3
