Panasonic FP7 Series Command Reference Manual

■
Precautions for programming
● If an unsigned constant U is specified for [S], it should be converted as HEX data.
■

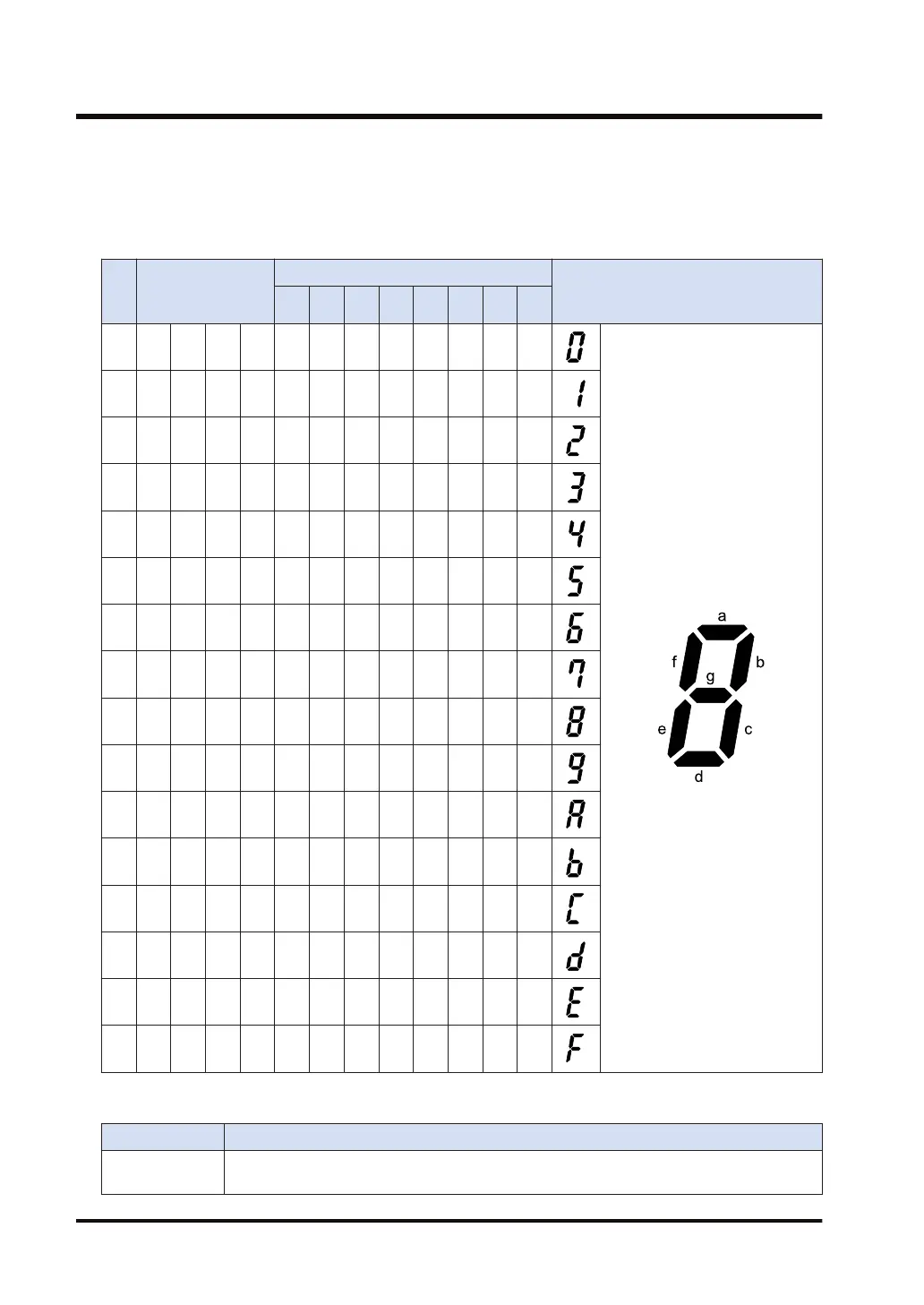

Notation and corresponding data
Val
ue
Conversion data 1
digit
[S]
1-digit data for 7-segment notation [D]
7-segment display
g f e d c b a
0 0 0 0 0 0 0 1 1 1 1 1 1
1 0 0 0 1 0 0 0 0 0 1 1 0
2 0 0 1 0 0 1 0 1 1 0 1 1
3 0 0 1 1 0 1 0 0 1 1 1 1
4 0 1 0 0 0 1 1 0 0 1 1 0
5 0 1 0 1 0 1 1 0 1 1 0 1
6 0 1 1 0 0 1 1 1 1 1 0 1
7 0 1 1 1 0 0 1 0 0 1 1 1
8 1 0 0 0 0 1 1 1 1 1 1 1
9 1 0 0 1 0 1 1 0 1 1 1 1
A 1 0 1 0 0 1 1 1 0 1 1 1
B 1 0 1 1 0 1 1 1 1 1 0 0
C 1 1 0 0 0 0 1 1 1 0 0 1
D 1 1 0 1 0 1 0 1 1 1 1 0
E 1 1 1 0 0 1 1 1 1 0 0 1
F 1 1 1 1 0 1 1 1 0 0 0 1
■
Flag operations
Name Description
SR7
SR8
To be set in the case of out-of-range in indirect access (index modification).
7.8 SEGT (7-Segment Decoding)
7-18 WUME-FP7CPUPGR-12
