(Note 8) Can be specified only when the operation unit is a double-precision floating point real number (DF).
■

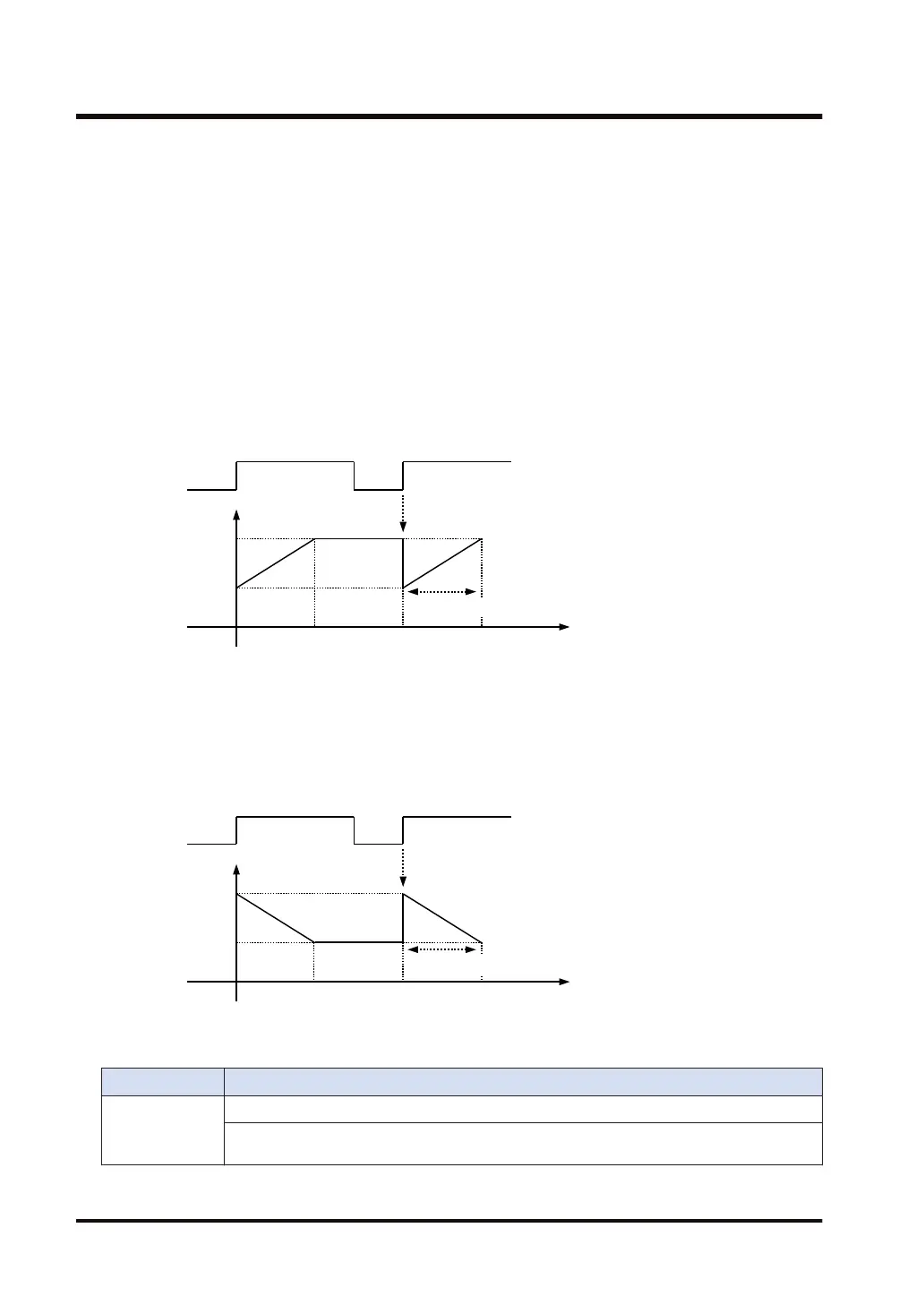

Outline of operation
● Scaling is carried out from the output default value, output target value, and output time (in
ms) specified by [S1], [S2], and [S3], and linear output is executed in accordance with the
time elapsed from the execution start.
■
Processing
[i]…US,SS
Example 1) Operation unit: 16 bits (US, SS)
[S1]…DT0：K1000 [S2]…DT1：K5000 [S3]…DT2：K400 [D]…DT10
Execution condition
ON
OFF
DT10 (Output value)
5000
(target value)
1000
(default value)
Time (ms)
1100700400
400 ms (time elapsed)
When the execution condition is switched on,
the data are initialized.
[i]…UL,SL
Example 2) Operation unit: 32 bits (UL, SL)
[S1]…DT0：K5000 [S2]…DT1：K1000 [S3]…DT2：K400 [D]…DT10
Execution condition
ON
OFF
DT10 (Output value)
5000
(default value)
1000
(target value)
Time (ms)
1100700400
When the execution condition is switched on,
the data are initialized.
0
0
400 ms (time elapsed)
■
Flag operations
Name Description
SR7
SR8
(ER)
To be set in the case of out-of-range in indirect access (index modification).
To be set when the output time width specified by [S3] is out of the accessible range.
10.14 RAMP (Ramp Output)
10-58 WUME-FP7CPUPGR-12
