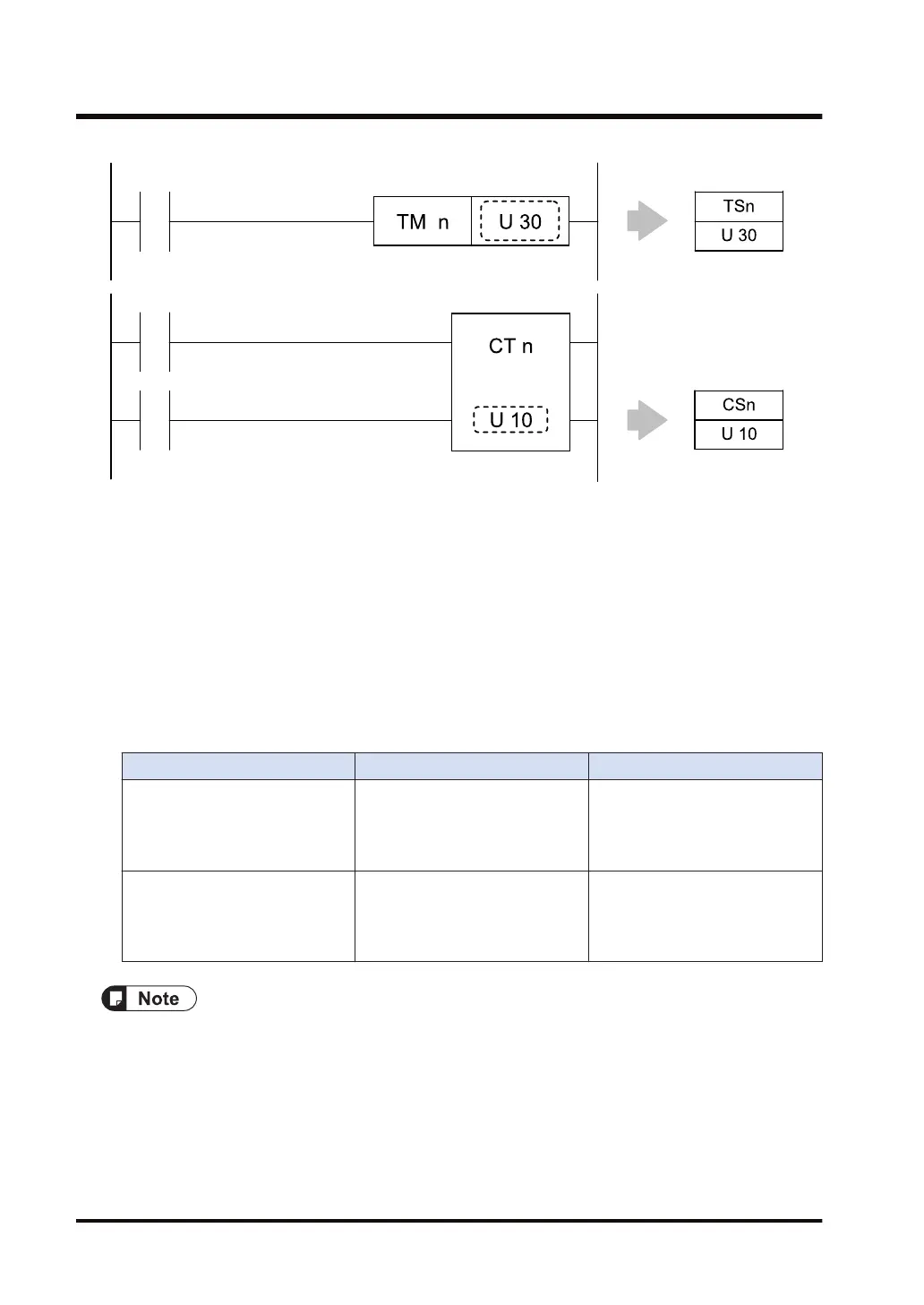

Using the set value area (TS, CS)
During RUN mode, a set value for a timer or counter can be changed by rewriting the
corresponding set value area.
The values in the set value area can be overwritten by user programs such as data transfer
instructions.
Reading and writing of values can also be performed with the programming tool.
Reference:
Numbers of TS and TE correspond to timer numbers, and numbers of CS and CE
correspond to counter numbers.
Timer and counter No. Set value area Process value area
T0
T1
T4095
TS0
TS1
TS4095
TE0
TE1
TE4095
C0
C1
C1023
CS0
CS1
CS1023
CE0
CE1
CE1023
Timer/counter settings for FP7 series can be specified using unsigned constants (U constants).
The set value area (TS, CS) occupies a 32-bit area.
2.6 Description of the memory area
2-34 WUME-FP7CPUPGR-12
