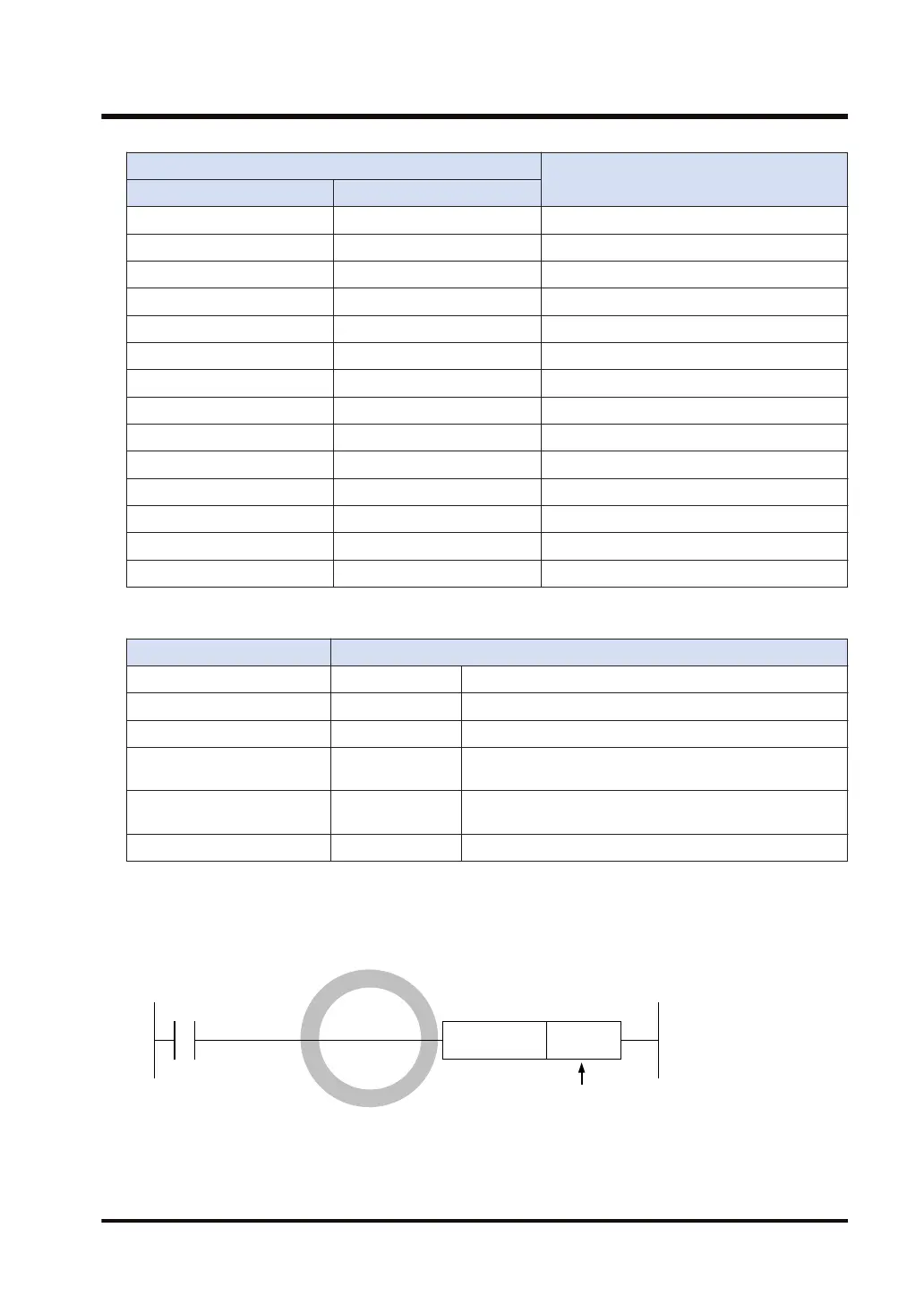

Panasonic FP7 Series Command Reference Manual

Value of index register
Post-modification relay number
K H
⁞ ⁞ ⁞
31 1F X1F
⁞ ⁞ ⁞
159 9F X9F
160 A0 X100
161 A1 X101
⁞ ⁞ ⁞
255 FF X15F
256 100 X160
257 101 X161
⁞ ⁞ ⁞
266 10A X16A
267 10B X16B
⁞ ⁞ ⁞
■
Modification of No. of basic instruction
Object Modification examples
Timer number Modify TML20 TML I020
Counter number Modify CT200 CT I0200
Shift register number Modify SRWR0 SR I0WR0
Specification of a label
number in a jump instruction
Modify JP1 JP I01
Specification of a label
number in a loop instruction
Modify LOOP5 LOOP I05
Subroutine program number Modify CALL10 CALL I010
■
Limitations for modifying the timer/counter number
● The timer number and counter number can only be modified when a memory area has been
specified for the setting value.
TS 0TMXI0 0
Specified by a
memory area no.
● When a constant is specified for the setting value, the timer/counter number cannot be
modified.
2.6 Description of the memory area
WUME-FP7CPUPGR-12 2-39
