AIR BAG AND PRETENSIONERS
Passenger's frontal airbag: Removal - Refitting
PASSENGER AIRBAG
88C

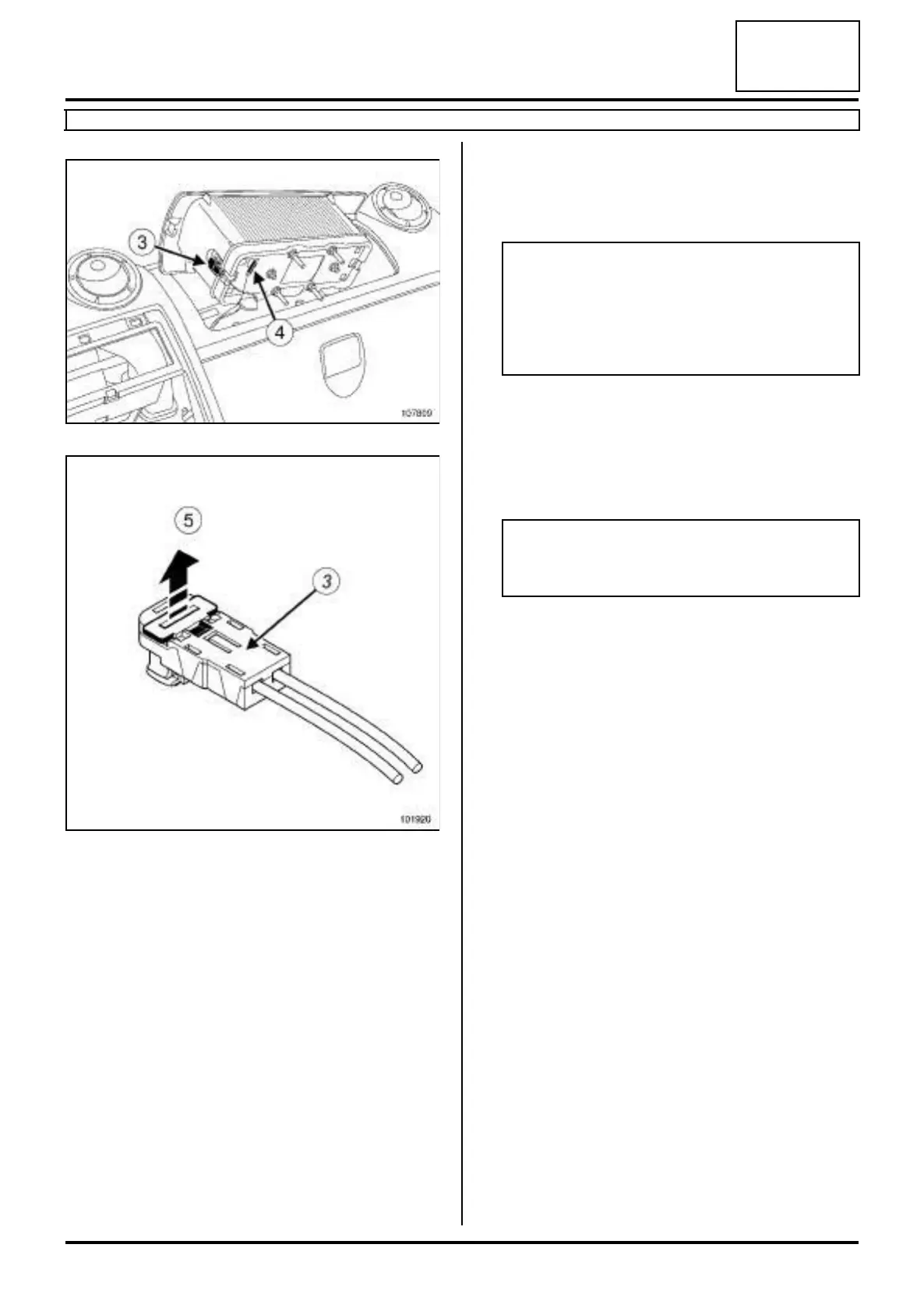

a Unlock the passenger's frontal airbag connector (3)
at (5) .
a Disconnect:
-the passenger's frontal airbag module connector
(3) ,
-the earth terminal (4) .
a Remove the passenger's frontal airbag module.
REFITTING
I - REFITTING PREPARATION OPERATION
a
a parts always to be replaced: Passenger's frontal
airbag mounting on dashboard
II - REFITTING OPERATION FOR PART
CONCERNED
a
a Connect the following to the passenger's frontal air-
bag:
- the earth terminal,
- the passenger frontal airbag module connector.
a Lock the passenger frontal airbag connector.
a Refit:
- the passenger's frontal airbag module,
- the new nuts of the passenger's frontal airbag mod-
ule.
a Tighten to torque the passenger's frontal airbag
module nuts (8 N.m).
a Refit the wiring at the passenger's frontal airbag
module in the position marked during removal.
III - FINAL OPERATION
a Refit:
- the dashboard (see Dashboard: Removal - Refit-
ting) (57A, Interior equipment),
- the radio (see 86A, Radio, Radio: Removal - Re-
fitting, page 86A-3) ,
-the instrument panel (see 83A, Instrument panel,
Instrument panel: Removal - Refitting, page
83A-1) ,
- the steering column switch assembly (see 84A,
Control - Signals, Steering column switch as-
sembly: Removal - Refitting, page 84A-2) ,
107809
101920
IMPORTANT
After a seat belt pyrotechnic component is trig-
gered, it is essential to replace certain parts (see
88C, Air bag and Pretensioners, Airbag and
pretensioners: Precautions for the repair,
page 88C-3) ).
IMPORTANT
To prevent the airbag triggering, connect the
earth wire before the igniter connector.
