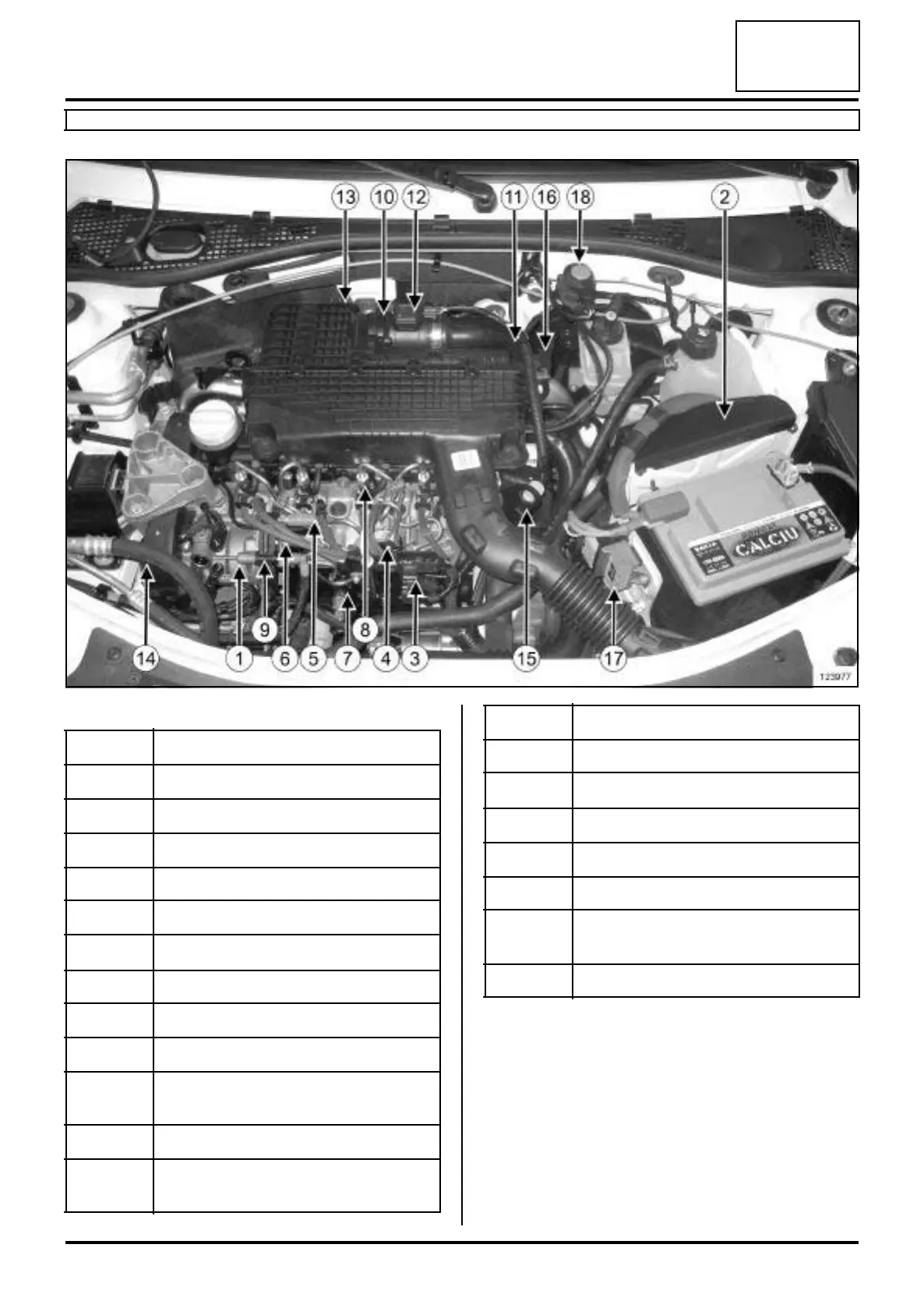

Diesel injection: List and location of components
K9K, and 796
13B
123977
No. Description
1 High pressure pump
2 Injection computer
3 Injector rail pressure sensor
4 Spherical injector rail
5 Diesel temperature sensor
6 Diesel fuel flow actuator
7 Accelerometer
8 Injector
9 Venturi
10 Exhaust gas recirculation solenoid
valve
11 Turbocharging air pressure sensor
12 Air flowmeter with integrated tempera-
ture sensor
13 Turbocharger
14 Cylinder reference sensor
15 Coolant temperature sensor
16 TDC sensor
17 Pre-postheating unit
18 Turbocharger control solenoid valve
(only for K9K 796 engine)
19 Accelerator pedal potentiometer
No. Description
