Renault Duster 2007 - Multifunction Support: Removal - Refitting

10A-48
ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
K4M, and POWER ASSISTED STEERING, and AIR CONDITIONING
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres),
-the front right-hand wheel arch side liner,
-the injector rail protector,
-the engine undertray bolts,
-the engine undertray.
a Remove the front bumper (see Front bumper as-
sembly: Exploded view) and (see Exterior body
front trim assembly: Exploded view) (55A, Exteri-
or protection).
a Disconnect fuel supply pipe on the injector rail.
a Remove:
-the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) ,
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) .
a Remove (see Power-assisted steering pump: Re-
moval - Refitting) (36B, Power-assisted steering):
-the bolt from the power-assisted steering high
pressure pipe on the cylinder block,
-the bolts from the power-assisted steering pump on
the multifunction support (without opening the cir-
cuit).
a Attach the power-assisted steering pump to the front
end panel.
a Disconnect the connector from the air conditioning
compressor.
a Remove the air conditioning compressor bolts (with-
out opening the circuit) (see Compressor: Remov-
al - Refitting) (62A, Air conditioning).
a Attach the air conditioning compressor to the sub-
frame.
II - REMOVAL OPERATION
a Remove:

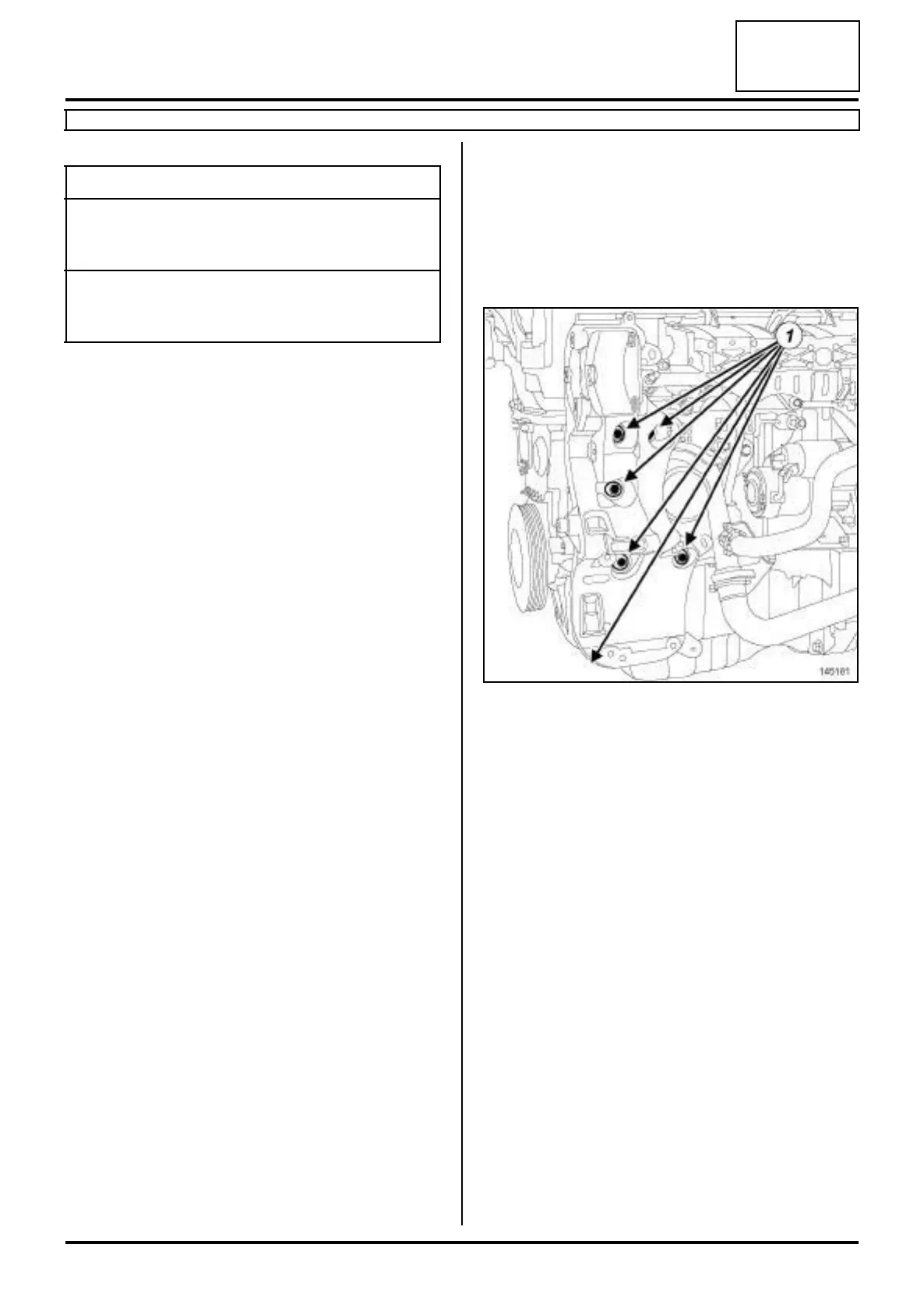

- the multifunction support bolts (1) ,
- the multifunction support.
Tightening torquesm
multifunction support
bolts on the cylinder
block
44 N.m
lower bolt of the multi-
function support on the
sump
25 N.m
145181
