10A-49
ENGINE AND CYLINDER BLOCK ASSEMBLY
Multifunction support: Removal - Refitting
K4M, and POWER ASSISTED STEERING, and AIR CONDITIONING
10A
REFITTING
I - REFITTING OPERATION
a Refit the multifunction support.

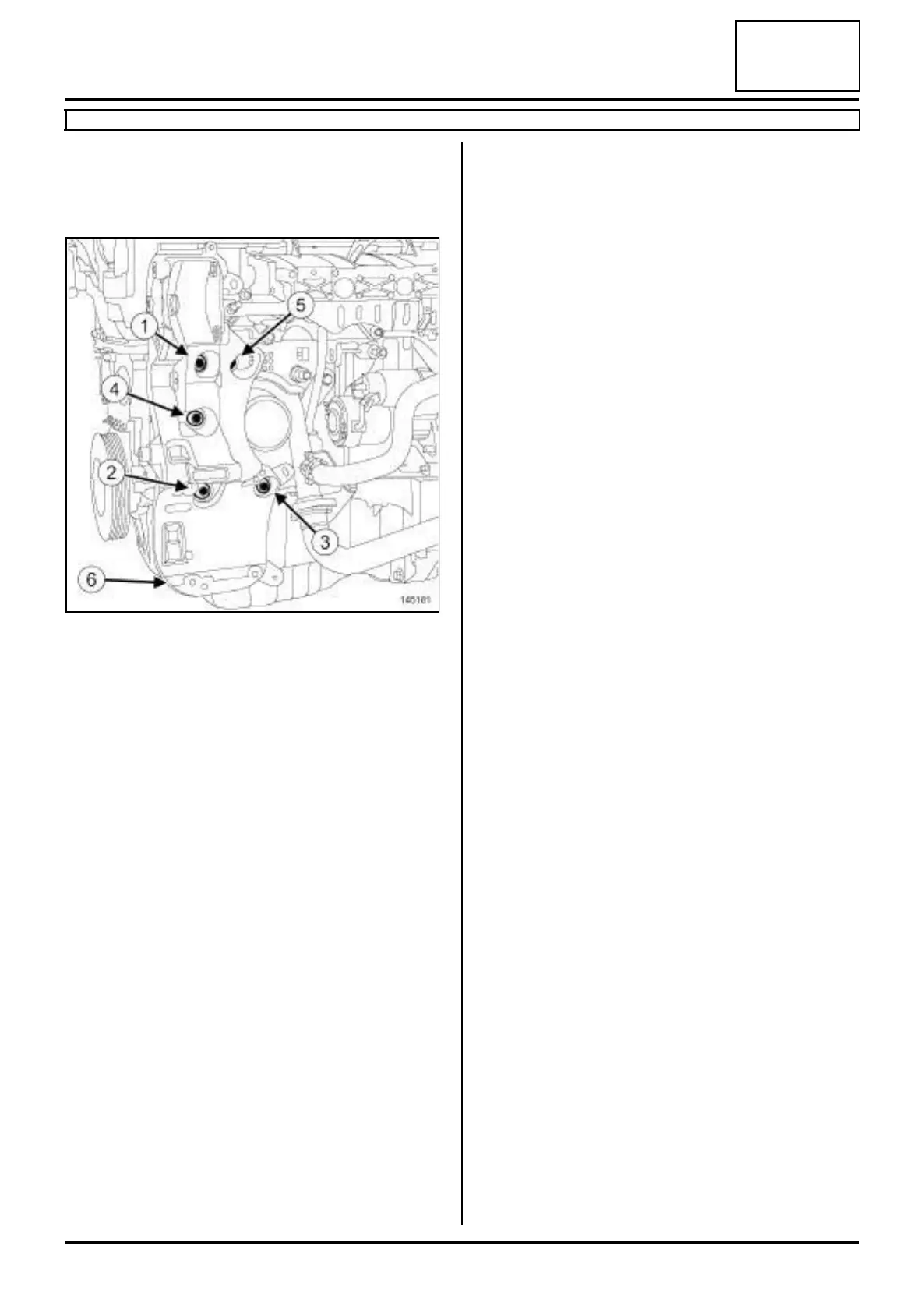

a Position bolts (1) to (6) without tightening them.
a Pretighten the multifunction support bolts (1) and (2)
on the cylinder block 5 N.m.
a Loosen bolts (1) and (2) of the multifunction support
by one half-turn.
a Pretighten the multifunction support bolt (6) on the
sump 5 N.m.
a Pretighten the multifunction support bolts (1) and (2)
on the cylinder block 5 N.m.
a Pretighten in order (3) , (4) , (5) , (6) the multifunction
support bolts on the cylinder block (5 N.m).
a Torque tighten in order (1) , (2) , (3) , (4) , (5) the
multifunction support bolts on the cylinder
block (44 N.m).
a Torque tighten the lower bolt of the multifunction
support on the sump (25 N.m) (6) .
II - FINAL OPERATION
a Refit the air conditioning compressor (see Com-
pressor: Removal - Refitting) (62A, Air condition-
ing).
a Connect the air conditioning compressor connector.
a Refit (see Power-assisted steering pump: Remo-
val - Refitting) (36B, Power-assisted steering):
- the power-assisted steering pump,
- the bolt of the power-assisted steering high pres-
sure pipe on the cylinder block.
a Refit:
-the alternator (see 16A, Starting - Charging, Al-
ternator: Removal - Refitting, page 16A-1) ,
- the accessories belt (see 11A, Top and front of
engine, Accessories belt: Removal - Refitting,
page 11A-2) .
a Connect the fuel supply pipe on the injector rail.
a Refit the front bumper (see Front bumper assem-
bly: Exploded view) and (see Exterior body front
trim assembly: Exploded view) (55A, Exterior pro-
tection).
a Refit:
- the engine undertray,
- the injector rail protector.
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
145181
