29A-16
DRIVESHAFTS
Front left-hand driveshaft gaiter, gearbox side: Removal - Refitting
JR5
29A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Remove the front left-hand driveshaft (see 29A,
Driveshafts, Front left-hand driveshaft: Removal
- Refitting, page 29A-1) .
II - REMOVAL OPERATION
a Cut the big securing clip (1) and the small securing
clip (2) using cutting pliers or a metal saw, taking
care not to damage the yoke sleeve or the drive-
shaft.
a Push back the driveshaft gaiter to release the drive-
shaft yoke sleeve.

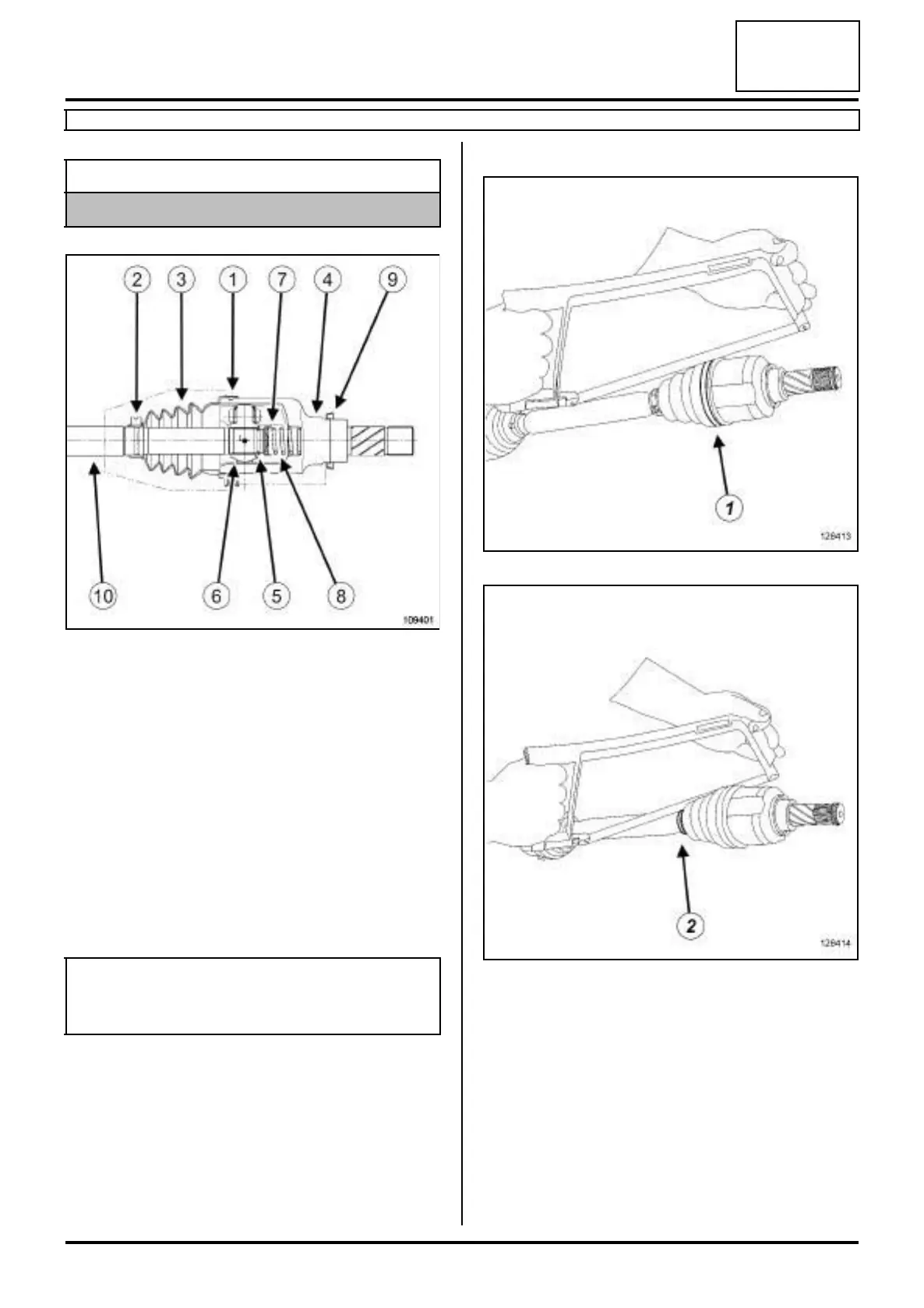

Equipment required
parts washer
109401
(1) Big securing clip
(2) Small securing clip
(3) Driveshaft gaiter
(4) Driveshaft yoke sleeve
(5) Lock ring
(6) Spider
(7) Cup
(8) Cup spring
(9) Deflector
(10) Driveshaft
IMPORTANT
Wear leaktight gloves (Nitrile type) for this opera-
tion.
128413
128414
