37A-44
MECHANICAL COMPONENT CONTROLS
Clutch master cylinder: Removal - Refitting
JR5, and LEFT-HAND DRIVE
37A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Remove the engine undertray.
a Remove the two expansion bottle nuts.
a Move aside the expansion bottle.
a Disconnect the brake fluid level sensor connector
from the reservoir.
a Remove the brake fluid filler cap.
a Drain the brake fluid reservoir using a syringe until
the fluid level is below the clutch master cylinder
supply orifice on the brake fluid reservoir.
a Place a cloth under this orifice.
a Disconnect the clutch master cylinder supply pipe
from the brake fluid reservoir.
a Fit plugs into the openings.
II - OPERATION FOR REMOVAL OF PART
CONCERNED
a Place a cloth under the clutch slave cylinder.

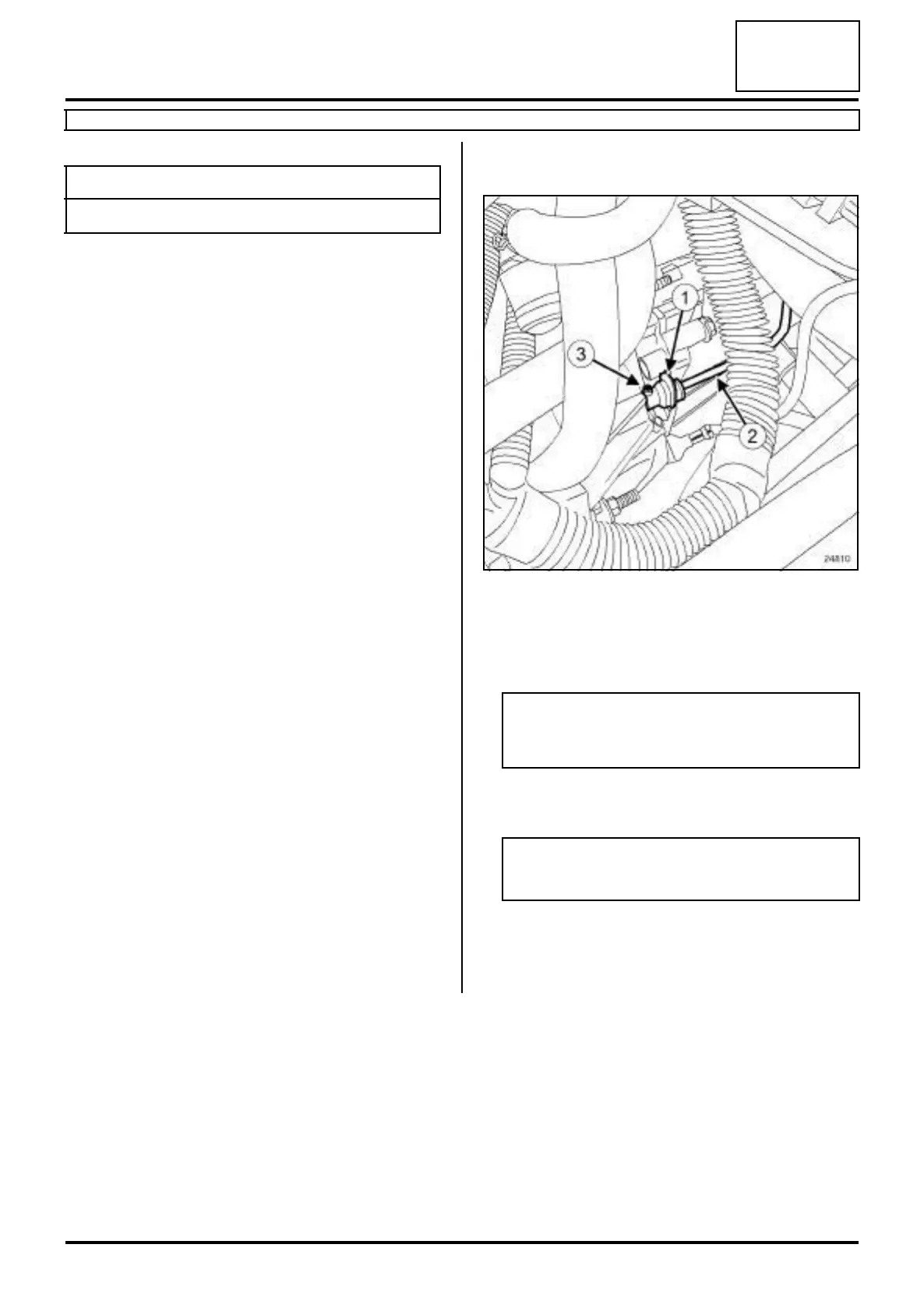

a Remove the plug from the bleed hole (3) .
a Press the clip (1) .
a Pull out the clutch control pipe (2) one notch to free
the bleed hole.
a Connect a transparent pipe to the bleed hole (3) and
place an empty container under the bleed hole.
a Depress the clutch pedal with your hand (to drain the
clutch master cylinder and the clutch pipe).
Tightening torquesm
expansion bottle nuts 8 N.m
24810
WARNING
Do not pull the clip. If it is incorrectly handled in
any way, the pipe will need to be replaced.
Note:
Expect some brake fluid to run out.
