Renault Duster 2007 - Rigid Brake Pipe: Repair

30A-7
GENERAL INFORMATION
Rigid brake pipe: Repair
30A
This procedure applies to copper pipes diameter 4.7
mm.
REPAIR
I - PIPE PREPARATION OPERATION
a
a Cut the pipe to the recommended length using a
tube cutter (see Garage equipment catalogue).
a Put the nuts or bolts on the pipe before forming the
rivets.
II - MAKING THE RIVETS
a
Equipment required
compressed air nozzle
Tightening torquesm
brake pipe bolts 8 N.m
underbody unions
(female/male)
6 N.m
Note:
This procedure does not apply to:
- hybrid pipes (pipe + hose),
- pipes with diameters 6 mm and 8 mm.
WARNING
To a void causing a breakdown in hydraulic brake
circuit , do not squash or bend the rigid pipe
when cutting.

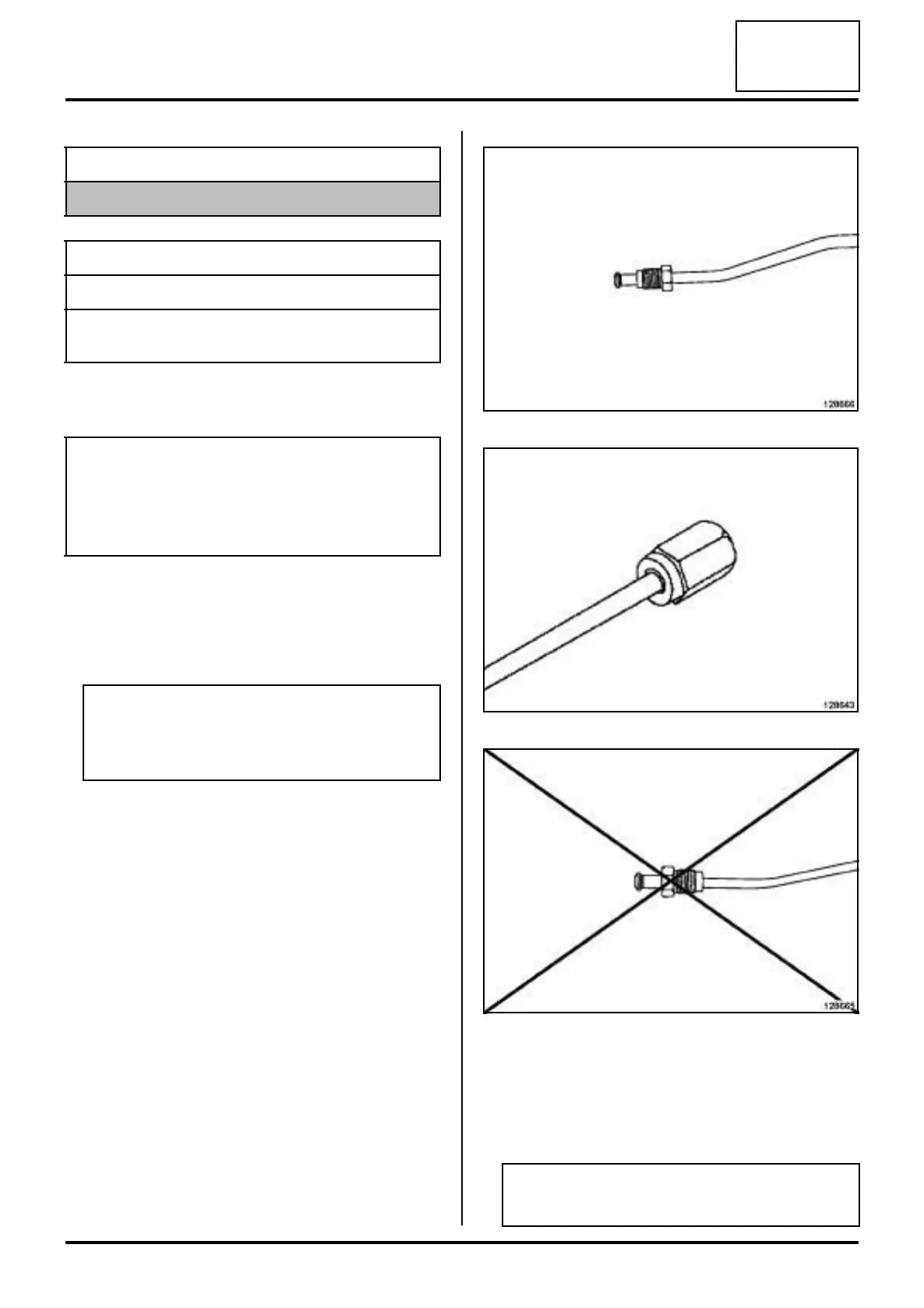

128666
128643
128665
Note:
To make the rivets, fit the rivet press in a vice.
