20A-6
CLUTCH
Clutch thrust bearing: Removal - Refitting
JR5
20A
The thrust bearing is connected to the clutch slave cyl-
inder.
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Drain the brake reservoir using a syringe to remove
the clutch thrust bearing and control.
a Remove the gearbox (see 21A, Manual gearbox,
Manual gearbox: Removal - Refitting, page 21A-
4) .
II - REMOVAL

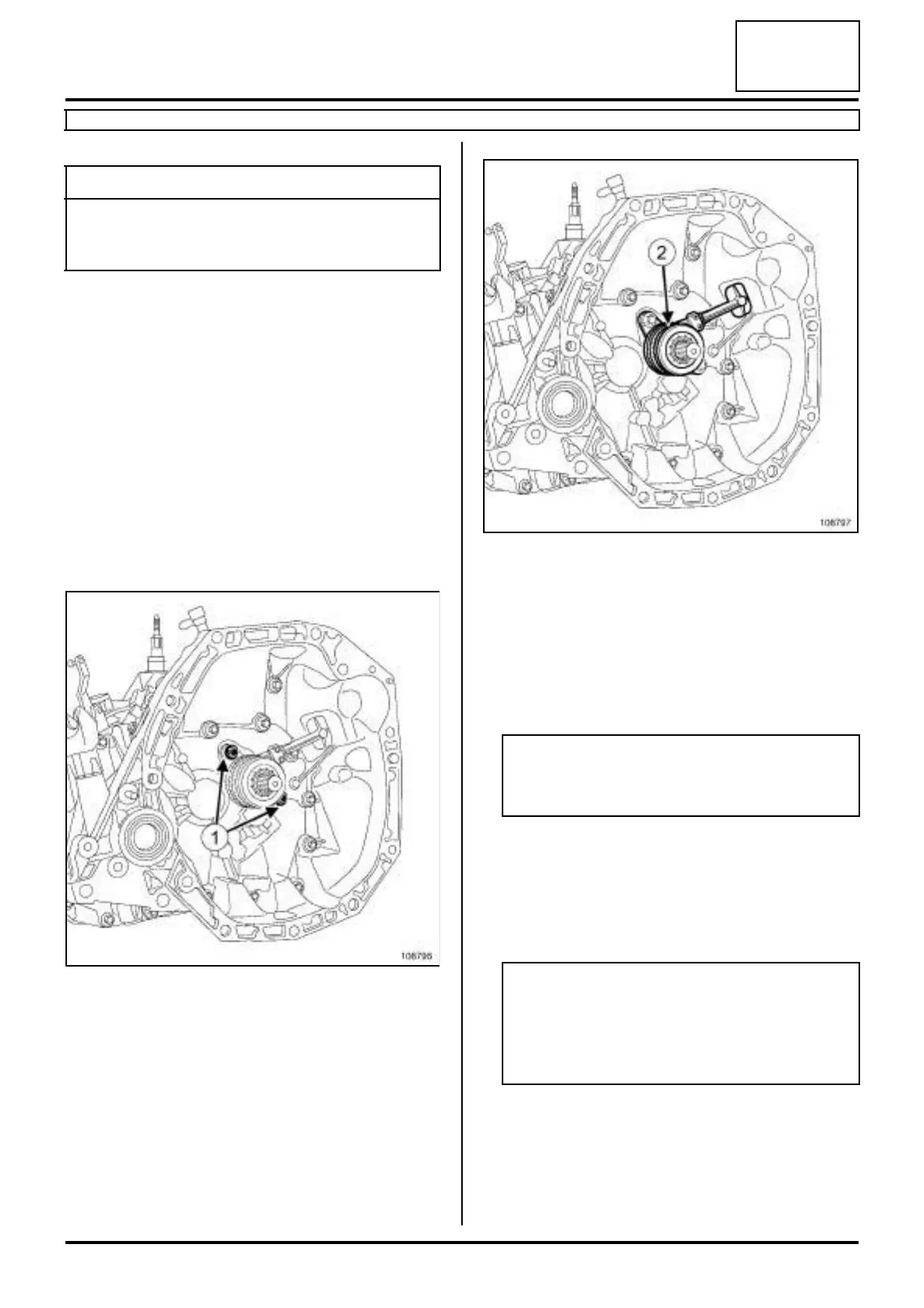

a Remove the two clutch thrust bearing bolts (1) on
the clutch housing.
a Remove the clutch thrust bearing (2) .
REFITTING
I - REFITTING PREPARATION OPERATION
a Always replace the clutch thrust bearing.
a
II - REFITTING
a Refit a new clutch thrust bearing.
a Torque tighten the clutch thrust bearing bolts on
the clutch housing (21 N.m).
III - FINAL OPERATION
a Refit the gearbox (see 21A, Manual gearbox, Man-
ual gearbox: Removal - Refitting, page 21A-4) .
a Bleed the clutch control (see Clutch circuit: Bleed)
(37A, Mechanical component controls).
Tightening torquesm
clutch thrust bearing
bolts on the clutch hous-
ing
21 N.m
108796
108797
Note:
To obtain optimum bleeding, prefill the clutch
thrust bearing when refitting.
WARNING
To avoid damaging the slave cylinder, do not coat
the gearbox output shaft with grease.
Never operate the system while the slave cylin-
der is removed.
