12B-8
TURBOCHARGING
Intercooler: Removal - Refitting
K9K
12B
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove the front bumper (see Front bumper as-
sembly: Exploded view) (55A, Exterior protection).

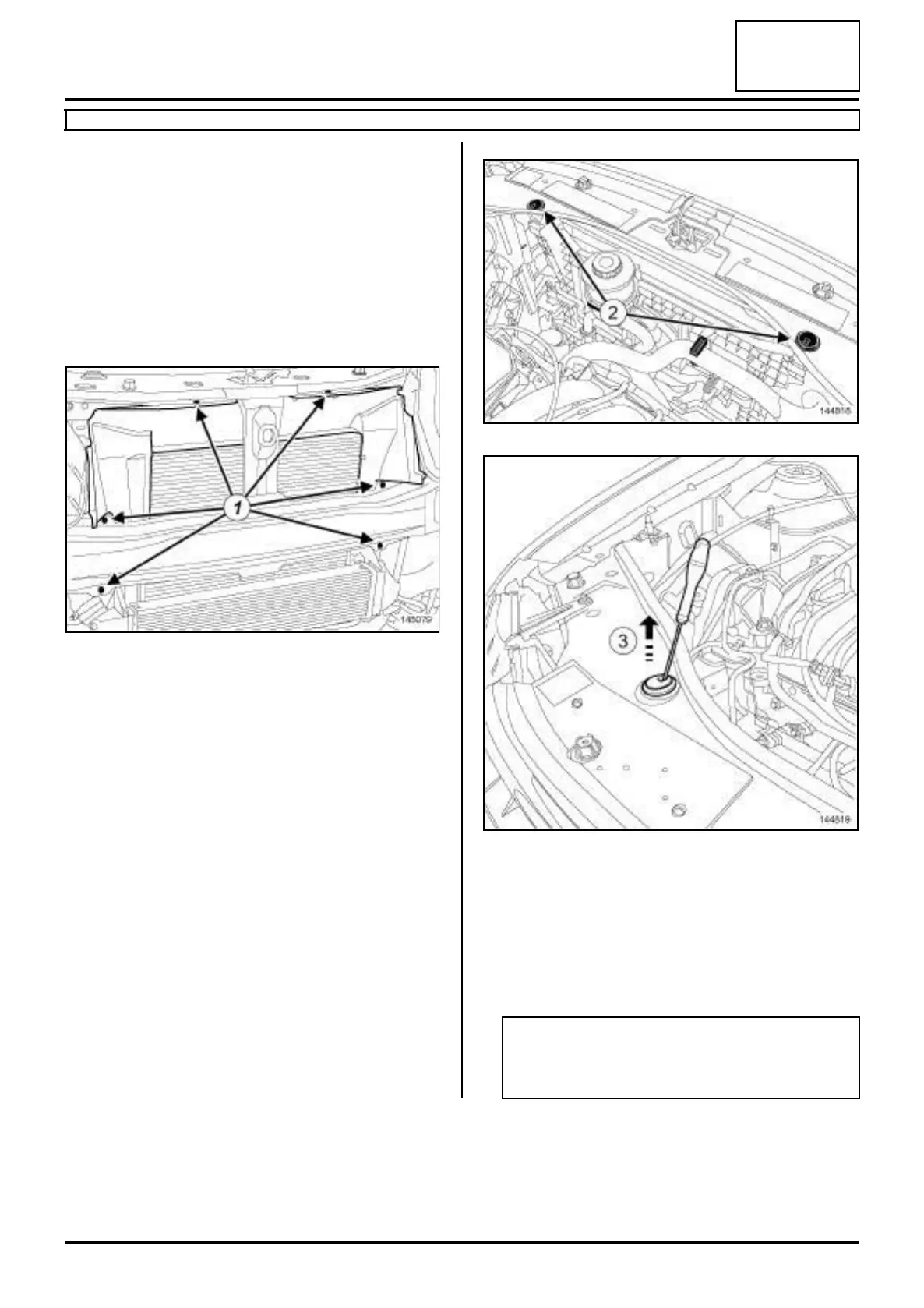

a Remove:
-the air deflector mounting pins (1) ,
-the air deflector.
a Press the clips of the fan assembly centring pins (2)
using a screwdriver and pull them in the direction of
the arrow (3) .
a Remove the fan assembly centring pins (2) .
II - REMOVAL OPERATION
a
145079
144818
144819
Note:
Do not damage the cooling unit vanes (radiator,
condenser, etc.) during handling.
