12B-9
TURBOCHARGING
Intercooler: Removal - Refitting
K9K
12B

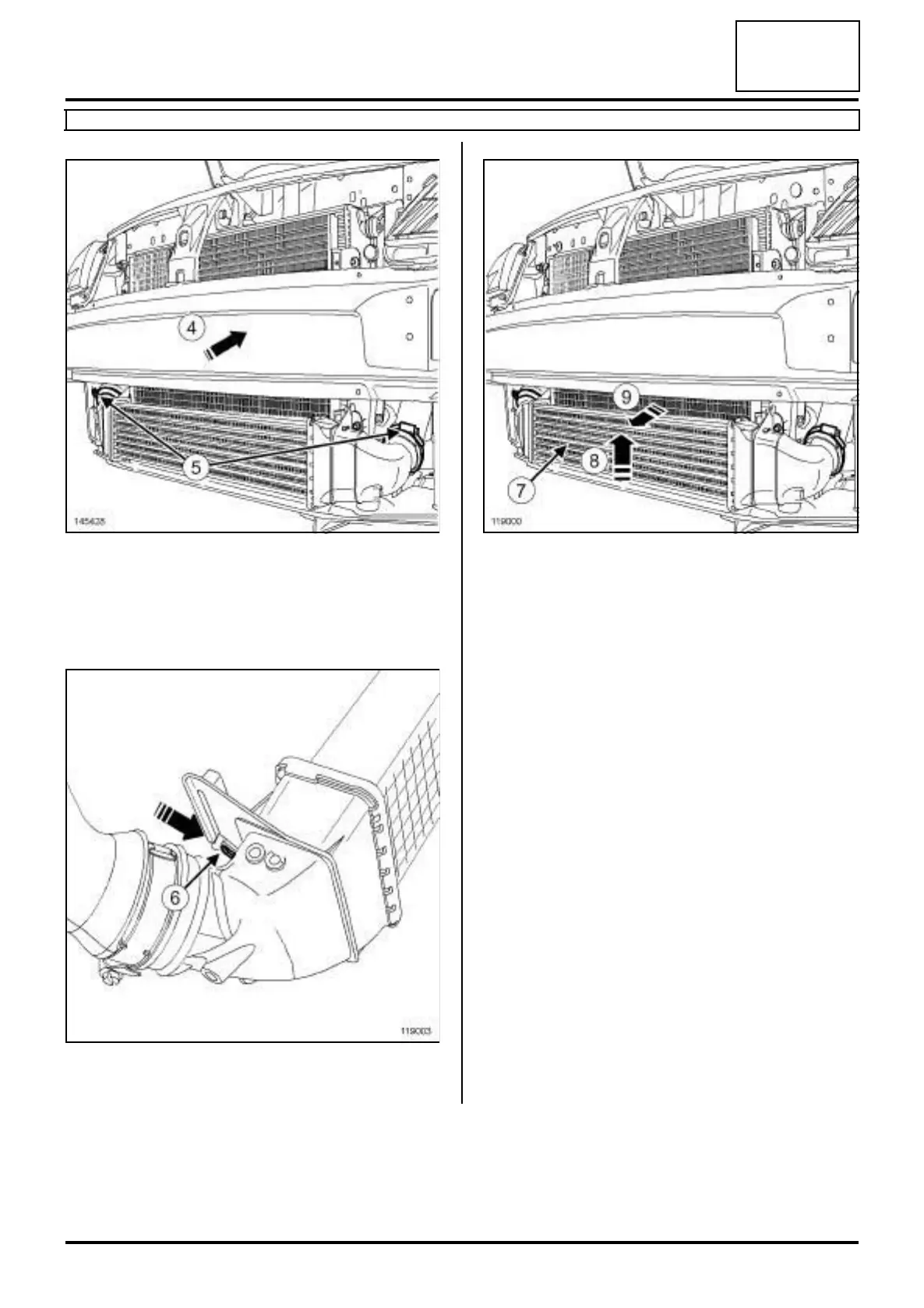

a Push the « radiator - fan » assembly in the direction
of the arrow (4) in order to remove the intercooler.
a Remove the clips (5) of the intercooler ducts.
a Disconnect the intercooler ducts.
a Press the end piece of the intercooler mounting at
(6) , in the direction of the arrow, to unclip it.
a Remove the intercooler (7) in the direction of the ar-
rows (8) then (9) .
REFITTING
I - REFITTING PREPARATION OPERATION
a Check that the intercooler is not full of oil. If this is
the case, clean it with a cleaning agent and then let
it dry.
II - REFITTING OPERATION
a Proceed in the reverse order to removal.
