Renault Duster 2007 - Crankshaft Seal, Gearbox End: Removal - Refitting

10A-5
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal, gearbox end: Removal - Refitting
K4M or K9K
10A
REMOVAL
I - REMOVAL PREPARATION OPERATION
a Position the vehicle on a two-post lift (see Vehicle:
Towing and lifting) (02A, Lifting equipment).
a Disconnect the battery (see Battery: Removal - Re-
fitting) (80A, Battery).
a Remove:
-the gearbox (see Manual gearbox: Removal - Re-
fitting) (21A, Manual gearbox),
-the clutch (see Pressure plate - Disc: Removal -
Refitting) (20A, Clutch),
-the flywheel (see 10A, Engine and cylinder block
assembly, Flywheel: Removal - Refitting, page
10A-75) (20A, Clutch).
II - REMOVAL OPERATION

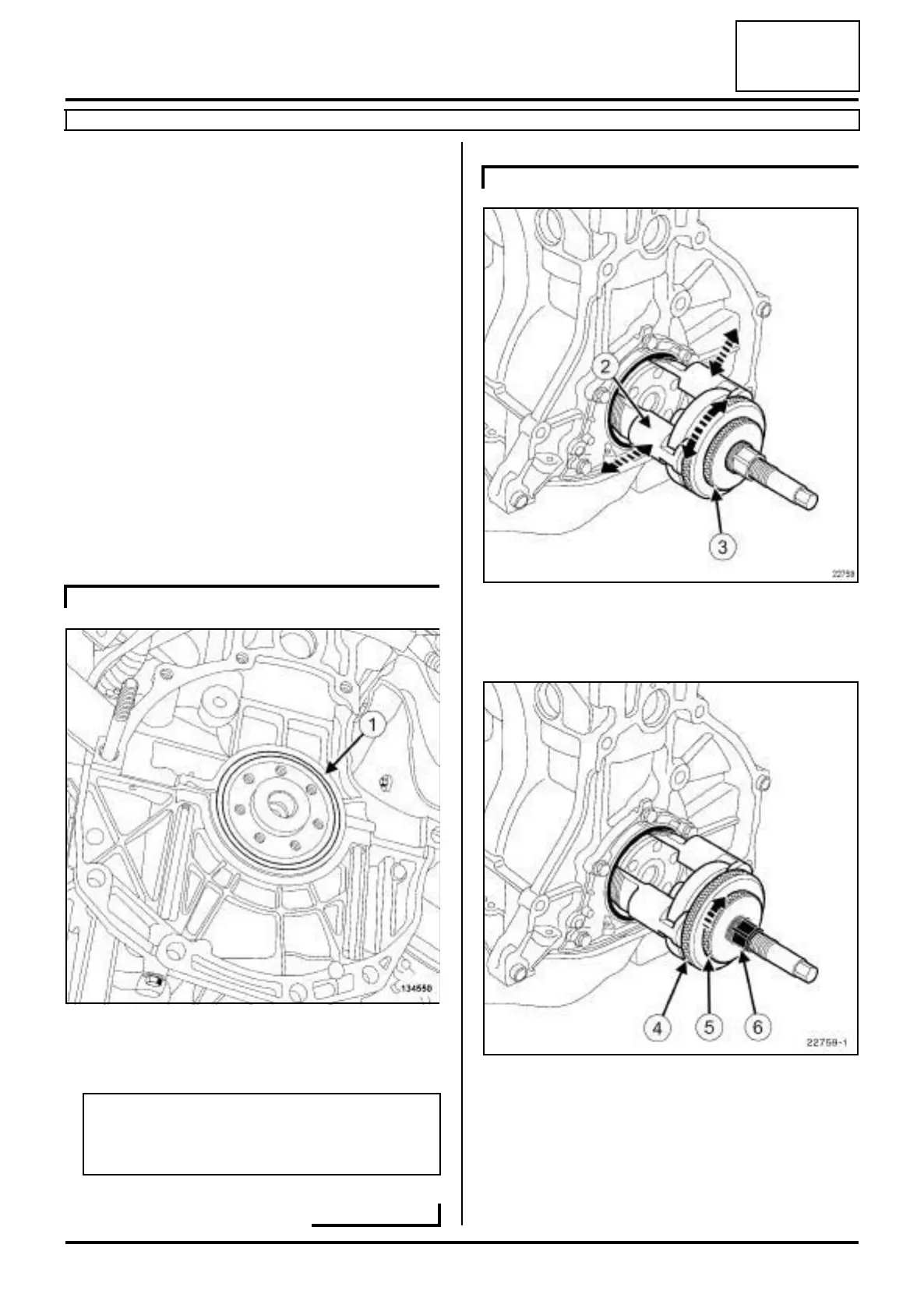

a Remove the crankshaft seal (1) at the gearbox end
using a screwdriver.
a Fit the extractorto the shaft, adjusting the fingers (2)
to the diameter of the shaft using the knurled plate
(3) .
a Screw knurled plate (5) until it is locked to knurled
plate (4) to keep the fingers in position on the shaft.
a Screw the extractor into the seal using the hexago-
nal nut (6) .
K4M
134550
Note:
Ta ke care not to damage the crankshaft mating
face.
K9K
22759
22759-1
