10A-4
ENGINE AND CYLINDER BLOCK ASSEMBLY
Crankshaft seal on timing end: Removal - Refitting
K9K
10A

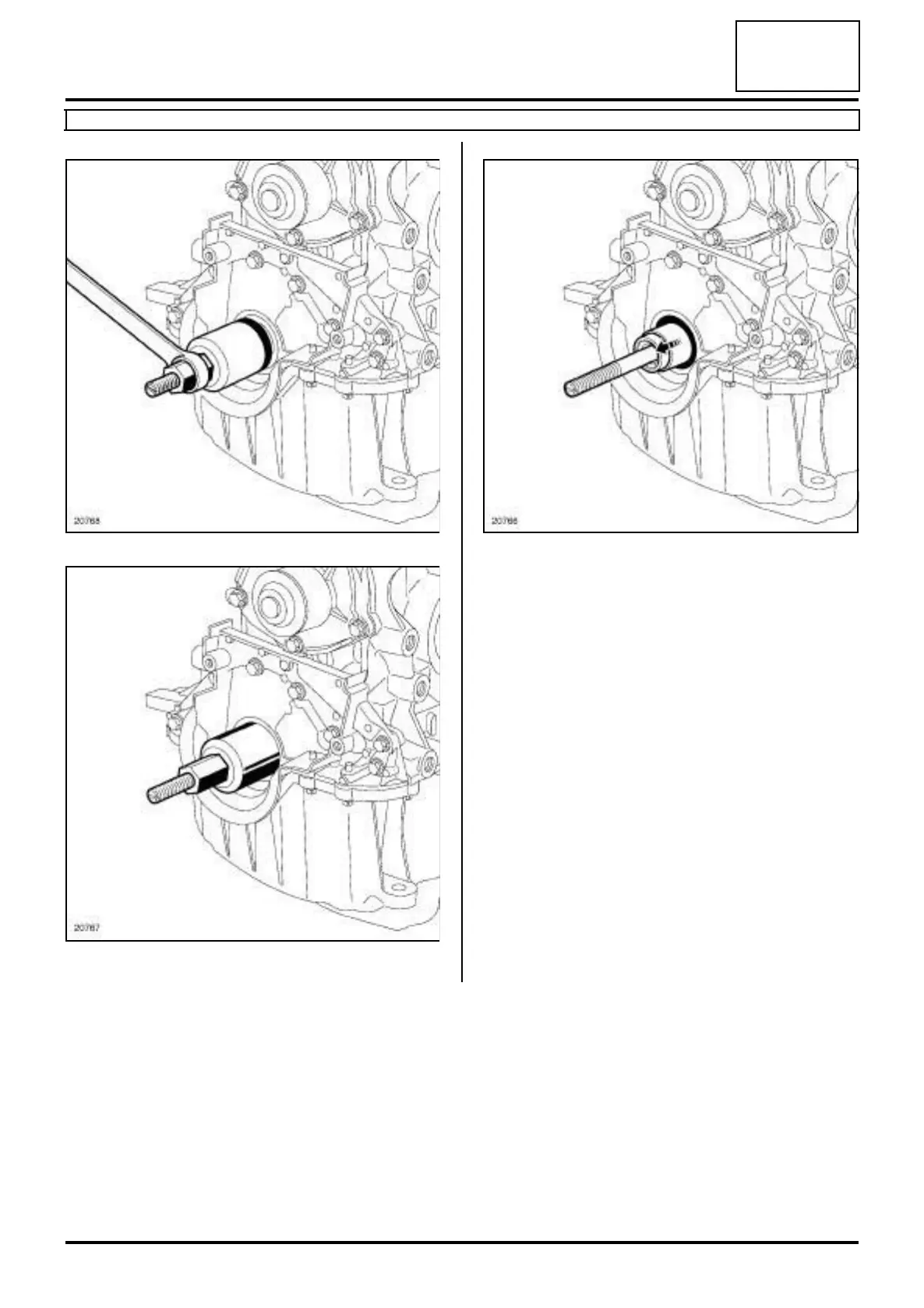

a Screw on the nut until the cover touches the spacer.
a Remove the nut, the cup, the protector and the
threaded rod.
III - FINAL OPERATION
a Refit:
-the timing belt sprocket (see 11A, Top and front of
engine, Timing belt: Removal - Refitting, page
11A-17) ,
- the timing belt (see 11A, Top and front of engine,
Timing belt: Removal - Refitting, page 11A-17) ,
-the front right-hand wheel (see Wheel: Removal -
Refitting) (35A, Wheels and tyres).
a Connect the battery (see Battery: Removal - Refit-
ting) (80A, Battery).
20768
20767
20766
